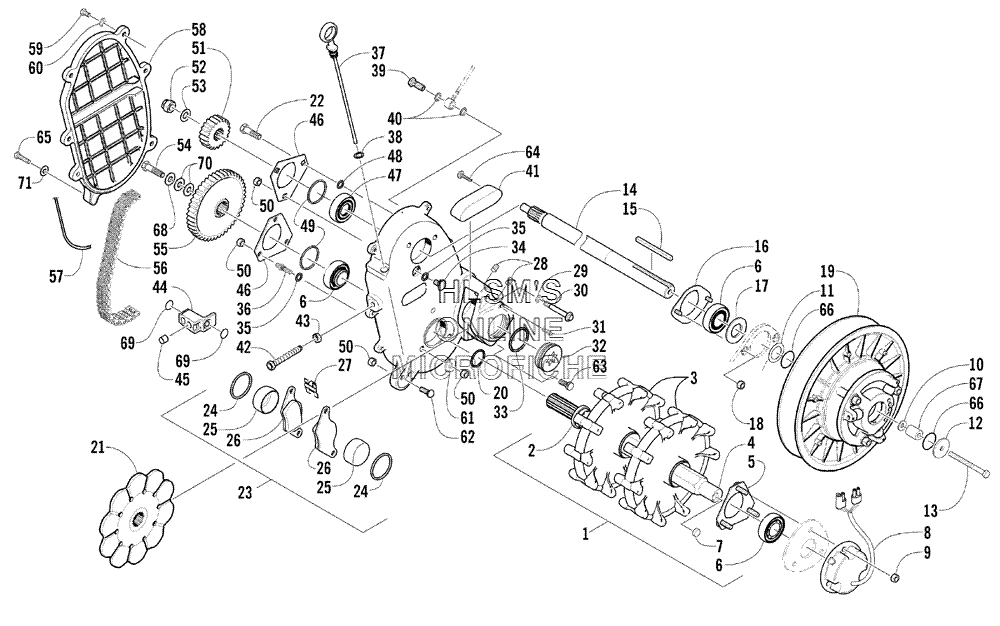

DRIVE TRAIN SHAFTS- BRAKE- AND DROPCASE ASSEMBLIES для Arctic Cat ZR 440 SNO PRO (USA) - 2002 года выпуска
-
№АртикулНазвание
-
10728-066 TRACK DRIVE ASSEMBLY (INC. 2, 5, ONE NO. 6, AND 7)TRACK DRIVE ASSEMBLY (INC. 2, 5, ONE NO. 6, AND 7)
-
21602-114 COLLARCOLLAR
-
31602-247 SPROCKET, DRIVESPROCKET, DRIVE
-
41602-240 DRIVESHAFTDRIVESHAFT
-
50702-412 FLANGE, BEARINGFLANGE, BEARING
-
61602-233 BEARING, 1 IN. W/O LOCK COLLARBEARING, 1 IN. W/O LOCK COLLAR
-
70670-059 MAGNETMAGNET
-
80630-156 REGULATOR, VOLTAGEREGULATOR, VOLTAGE
-
98040-426 NUT, LOCKNUT, LOCK
-
100123-053 WASHERWASHER
-
110623-118 WASHERWASHER
-
120123-019 WASHERWASHER
-
138002-139 SCREW, CAPSCREW, CAP
-
140702-437 SHAFT, DRIVENSHAFT, DRIVEN
-
150101-076 KEYKEY
-
160702-428 FLANGE, BEARINGFLANGE, BEARING
-
171602-286 SPACERSPACER
-
188041-366 NUT, LOCKNUT, LOCK
-
190726-140 CLUTCH, DRIVENCLUTCH, DRIVEN
-
201602-199 O-RING, BRAKE HUBO-RING, BRAKE HUB
-
211602-325 DISC, BRAKEDISC, BRAKE
-
228002-135 SCREW, CAPSCREW, CAP
-
230702-445 DROPCASE/BRAKE CALIPER W/STUDS ASSEMBLY (INC. 24, 36 AND 48)DROPCASE/BRAKE CALIPER W/STUDS ASSEMBLY (INC. 24, 36 AND 48)
-
241602-276 O-RINGO-RING
-
251602-281 PISTONPISTON
-
261602-327 PAD, BRAKEPAD, BRAKE
-
271602-228 SPRINGSPRING
-
280402-589 PLUGPLUG
-
291602-280 WASHER, LOCK, EXTERNAL TOOTHWASHER, LOCK, EXTERNAL TOOTH
-
301602-279 SCREW, CAPSCREW, CAP
-
310402-491 FITTING, BLEEDERFITTING, BLEEDER
-
321602-229 PLUG, CALIPERPLUG, CALIPER
-
331602-278 SEAL, O-RINGSEAL, O-RING
-
340123-523 BOLT, RIBBEDBOLT, RIBBED
-
350607-025 O-RING, STUDO-RING, STUD
-
361623-021 STUD, RIBBEDSTUD, RIBBED
-
370702-413 STICK, OIL LEVEL (INC. 38)STICK, OIL LEVEL (INC. 38)
-
381602-212 SEAL, OIL LEVEL STICKSEAL, OIL LEVEL STICK
-
390423-392 BOLT, BANJO FITTINGBOLT, BANJO FITTING
-
400423-178 WASHER, CRUSHWASHER, CRUSH
-
411602-285 GUARD, CALIPERGUARD, CALIPER
-
420602-638 SCREW, CHAIN ROLLERSCREW, CHAIN ROLLER
-
430123-150 NUT, JAMNUT, JAM
-
441602-224 ADJUSTER, CHAINADJUSTER, CHAIN
-
451602-283 BUMPER, CHAIN ADJUSTERBUMPER, CHAIN ADJUSTER
-
460602-932 PLATE, FLANGEPLATE, FLANGE
-
471602-052 BEARING, 7/8 IN.BEARING, 7/8 IN.
-
481602-322 O-RINGO-RING
-
490107-003 SEAL, O-RINGSEAL, O-RING
-
508041-426 NUT, LOCKNUT, LOCK
-
511602-150 SPROCKET (20 TEETH)SPROCKET (20 TEETH)
-
520623-465 NUT, LOCKNUT, LOCK
-
530623-231 WASHER, SPRINGWASHER, SPRING
-
548002-224 SCREW, CAPSCREW, CAP
-
551602-245 SPROCKET (44 TEETH)SPROCKET (44 TEETH)
-
561602-037 CHAIN, 74PCHAIN, 74P
-
571602-328 SEAL, DROPCASE COVERSEAL, DROPCASE COVER
-
581602-171 COVER, DROPCASECOVER, DROPCASE
-
598002-039 SCREW, CAPSCREW, CAP
-
608053-212 WASHER, LOCK, EXTERNAL TOOTHWASHER, LOCK, EXTERNAL TOOTH
-
618050-247 WASHERWASHER
-
628011-132 BOLT, CARRIAGEBOLT, CARRIAGE
-
638002-130 SCREW, CAPSCREW, CAP
-
641623-031 SCREWSCREW
-
658002-049 SCREW, CAPSCREW, CAP
-
660616-032 O-RINGO-RING
-
670648-042 SHAFT, STUBSHAFT, STUB
-
681623-038 WASHERWASHER
-
691602-249 O-RINGO-RING
-
700623-044 WASHERWASHER
-
718050-222 WASHERWASHER
