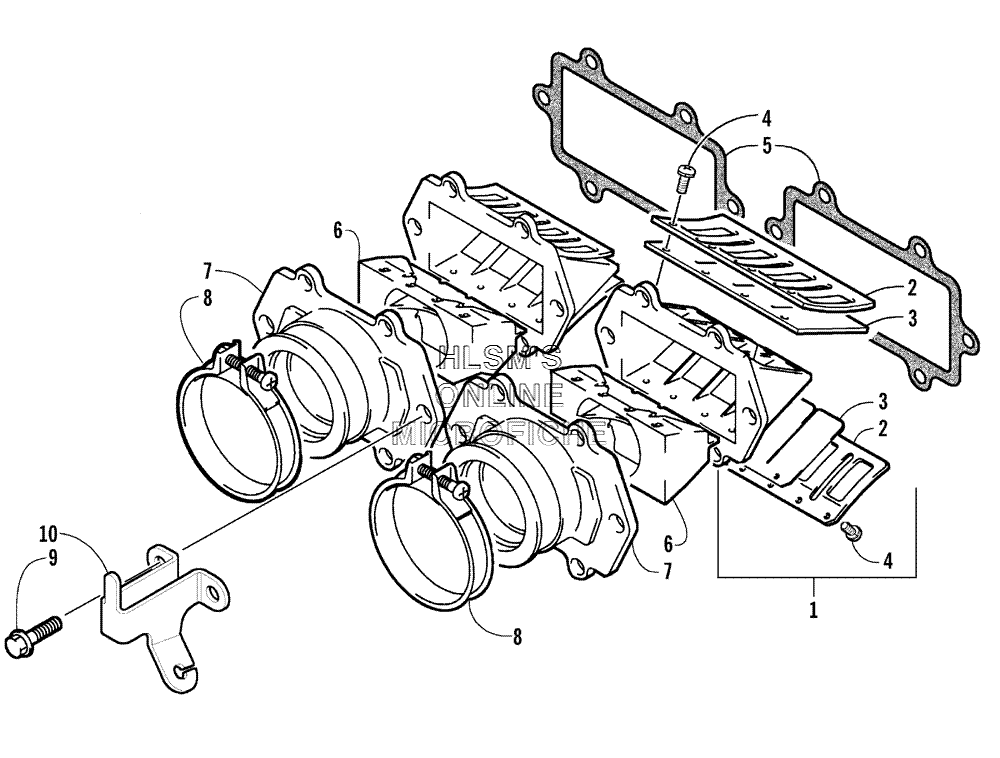

REED VALVE ASSEMBLY для Arctic Cat ZR 440 SNO PRO (USA) - 2002 года выпуска
-
№АртикулНазвание
-
13005-876 VALVE, REED, ASSEMBLY (INC. 2, 4)VALVE, REED, ASSEMBLY (INC. 2, 4)
-
23005-877 STOPPERSTOPPER
-
33005-878 VALVE, REEDVALVE, REED
-
43004-506 SCREWSCREW
-
53005-879 GASKET, REED VALVEGASKET, REED VALVE
-
63006-351 GUIDE, REED VALVEGUIDE, REED VALVE
-
73006-350 PIPE, INTAKEPIPE, INTAKE
-
83004-212 CLAMPCLAMP
-
93004-341 BOLTBOLT
-
102606-836 BRACKET, MOUNTING, OIL CABLEBRACKET, MOUNTING, OIL CABLE
