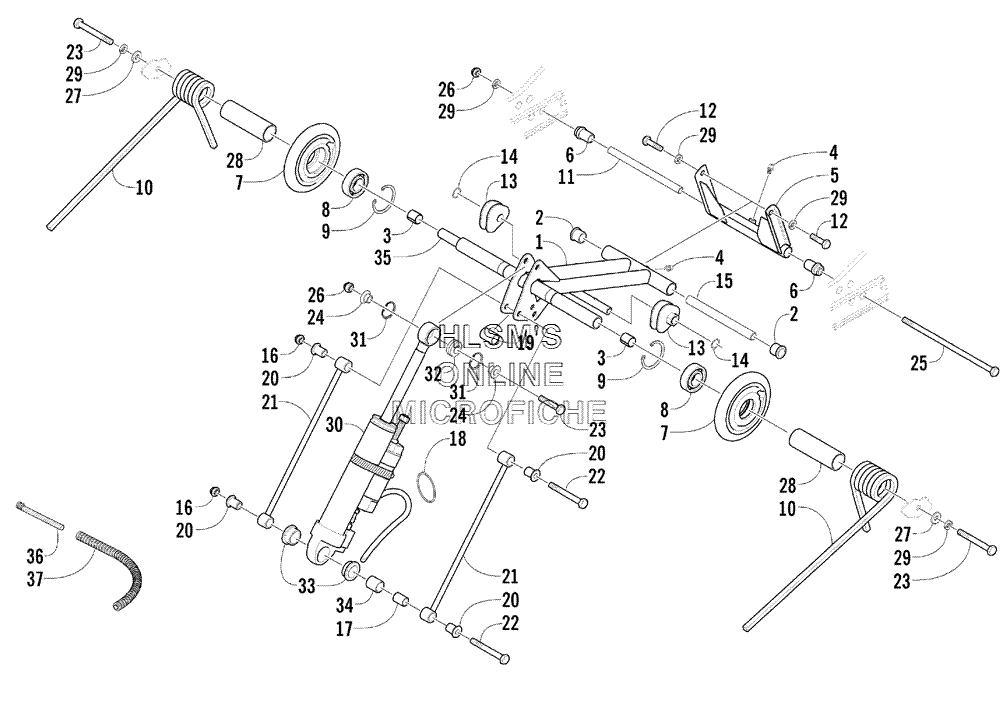

REAR SUSPENSION REAR ARM ASSEMBLY для Arctic Cat ZR 440 SNO PRO (USA) - 2002 года выпуска
-
№АртикулНазвание
-
10704-595 ARM, IDLER (INC. 2, 3 AND TWO NO. 4)ARM, IDLER (INC. 2, 3 AND TWO NO. 4)
-
21604-100 BUSHING, FLAREDBUSHING, FLARED
-
32604-147 BEARINGBEARING
-
40623-922 FITTING, GREASEFITTING, GREASE
-
50704-593 ARM (REAR) (INC. ONE NO. 4)ARM (REAR) (INC. ONE NO. 4)
-
61604-307 AXLE, SERRATEDAXLE, SERRATED
-
72604-143 WHEEL, IDLER (INC. 8, 9)WHEEL, IDLER (INC. 8, 9)
-
80107-598 BEARINGBEARING
-
90123-798 RING, RETAININGRING, RETAINING
-
101604-616 SPRING, SUSPENSION (RIGHT) HEAVY DUTYSPRING, SUSPENSION (RIGHT) HEAVY DUTY
-
101604-617 SPRING, SUSPENSION (LEFT) HEAVY DUTYSPRING, SUSPENSION (LEFT) HEAVY DUTY
-
101604-600 SPRING, SUSPENSION (RIGHT)SPRING, SUSPENSION (RIGHT)
-
101604-601 SPRING, SUSPENSION (LEFT)SPRING, SUSPENSION (LEFT)
-
110604-194 TUBE, AXLETUBE, AXLE
-
128002-223 SCREW, CAPSCREW, CAP
-
131604-204 BLOCK, SPRING ADJUSTER (RIGHT)BLOCK, SPRING ADJUSTER (RIGHT)
-
131604-205 BLOCK, SPRING ADJUSTER (LEFT)BLOCK, SPRING ADJUSTER (LEFT)
-
140623-138 RING, RETAININGRING, RETAINING
-
151604-208 AXLE, ALUMINUMAXLE, ALUMINUM
-
168041-486 NUT, LOCK, THINNUT, LOCK, THIN
-
170604-644 SLEEVE, SHOCKSLEEVE, SHOCK
-
182604-165 SUPPORT, HOSESUPPORT, HOSE
-
190604-298 SPACER, SHOCK LINKSPACER, SHOCK LINK
-
201604-498 AXLE, LINKAXLE, LINK
-
210704-361 LINK REAR SHOCKLINK REAR SHOCK
-
220623-793 SCREW, CAPSCREW, CAP
-
238002-226 SCREW, CAPSCREW, CAP
-
241604-662 SPACERSPACER
-
250623-907 SCREW, CAPSCREW, CAP
-
268040-486 NUT, LOCKNUT, LOCK
-
270623-044 WASHERWASHER
-
280114-254 SLEEVE, SPRINGSLEEVE, SPRING
-
298051-277 WASHER, LOCKWASHER, LOCK
-
300704-749 SHOCK ABSORBER ARM (REAR) (INC. 31, 34)SHOCK ABSORBER ARM (REAR) (INC. 31, 34)
-
310623-951 RING, RETAININGRING, RETAINING
-
321604-664 BEARINGBEARING
-
331604-222 BUSHING, SHOCKBUSHING, SHOCK
-
342604-223 SLEEVE, EYELETSLEEVE, EYELET
-
352604-139 AXLE, INNER CARRIAGEAXLE, INNER CARRIAGE
-
362604-279 WRAP, SPIRAL (5 FT)WRAP, SPIRAL (5 FT)
-
370716-558 LOOM, PROTECTIVE (10 FT)LOOM, PROTECTIVE (10 FT)
