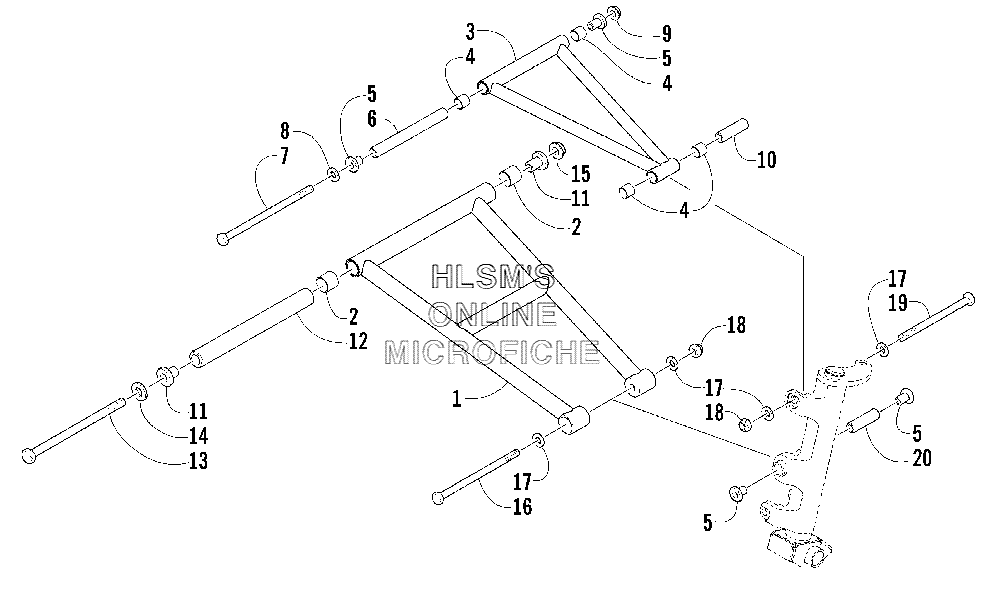

A-ARM ASSEMBLY для Arctic Cat MOUNTAIN CAT 900 1M (BLACK-ORANGE 159) - 2003 года выпуска
-
№АртикулНазвание
-
11703-215 ARM (LOWER) (INC. 2 AND 4) (PLATINUM)ARM (LOWER) (INC. 2 AND 4) (PLATINUM)
-
22603-196 BEARINGBEARING
-
31703-067 ARM (UPPER) (INC. 4) (PLATINUM)ARM (UPPER) (INC. 4) (PLATINUM)
-
41603-915 BEARINGBEARING
-
51603-244 AXLE (POWDER METAL)AXLE (POWDER METAL)
-
60603-692 TUBE, AXLETUBE, AXLE
-
70623-509 SCREW, CAPSCREW, CAP
-
80623-664 WASHERWASHER
-
90623-661 NUT, LOCKNUT, LOCK
-
100603-864 TUBE, AXLETUBE, AXLE
-
111603-397 AXLE, NON, SERRATEDAXLE, NON, SERRATED
-
120603-693 TUBE, AXLETUBE, AXLE
-
130623-508 SCREW, CAPSCREW, CAP
-
140623-663 WASHERWASHER
-
150623-660 NUT, LOCKNUT, LOCK
-
160623-414 SCREW, CAPSCREW, CAP
-
170623-044 WASHERWASHER
-
188040-486 NUT, LOCKNUT, LOCK
-
198013-233 SCREW, CAPSCREW, CAP
-
200603-639 TUBE, AXLE, SPINDLETUBE, AXLE, SPINDLE
