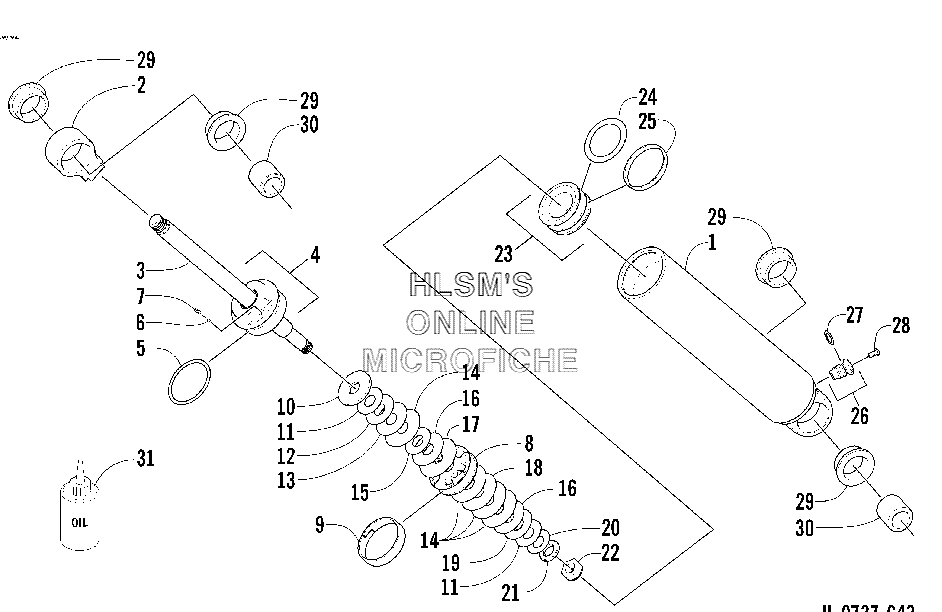

REAR SUSPENSION REAR ARM SHOCK ABSORBER для Arctic Cat MOUNTAIN CAT 900 1M (BLACK-ORANGE 159) - 2003 года выпуска
-
№АртикулНазвание
-
-0704-802 COMPLETE SHOCK ABSORBERCOMPLETE SHOCK ABSORBER
-
12604-170 BODY, SHOCKBODY, SHOCK
-
21604-763 EYELET, SHOCKEYELET, SHOCK
-
32604-163 ROD, SHOCKROD, SHOCK
-
40704-838 CAP, SHOCK (INC. 5, 7)CAP, SHOCK (INC. 5, 7)
-
51604-271 O-RINGO-RING
-
62604-276 BALL, CHECKBALL, CHECK
-
72604-277 SCREW, SETSCREW, SET
-
81603-314 PISTON, 0.039 IN., ORIFICEPISTON, 0.039 IN., ORIFICE
-
91604-274 STRAP, PISTON, TEFLONSTRAP, PISTON, TEFLON
-
101604-272 WASHER, TOP OUTWASHER, TOP OUT
-
112603-065 VALVE, 0.900 X 0.010 IN.VALVE, 0.900 X 0.010 IN.
-
122603-077 VALVE, 1.000 X 0.015 IN.VALVE, 1.000 X 0.015 IN.
-
132603-097 VALVE, 1.100 X 0.015 IN.VALVE, 1.100 X 0.015 IN.
-
142603-125 VALVE, 1.250 X 0.010 IN.VALVE, 1.250 X 0.010 IN.
-
152603-060 VALVE, 0.900 X 0.004 IN.VALVE, 0.900 X 0.004 IN.
-
162603-095 VALVE, 1.100 X 0.010 IN.VALVE, 1.100 X 0.010 IN.
-
172603-135 VALVE, 1.300 X 0.010 IN.VALVE, 1.300 X 0.010 IN.
-
182603-127 VALVE, 1.250 X 0.015 IN.VALVE, 1.250 X 0.015 IN.
-
192603-075 VALVE, 1.000 X 0.010 IN.VALVE, 1.000 X 0.010 IN.
-
202603-055 VALVE, 0.800 X 0.010 IN.VALVE, 0.800 X 0.010 IN.
-
211604-273 WASHER, BACKUPWASHER, BACKUP
-
220623-696 NUT, LOCKNUT, LOCK
-
230704-791 PISTON, BLEEDLESS, ASSY (INC. 24, 25)PISTON, BLEEDLESS, ASSY (INC. 24, 25)
-
242604-152 O-RINGO-RING
-
252604-153 BAND, TEFLONBAND, TEFLON
-
260704-796 VALVE, PRESSURE (INC. 27)VALVE, PRESSURE (INC. 27)
-
272604-162 O-RINGO-RING
-
280624-546 SCREW, VALVESCREW, VALVE
-
291604-262 BUSHING, SHOCKBUSHING, SHOCK
-
301604-397 SLEEVE, EYELETSLEEVE, EYELET
-
311639-245 OIL, GAS SHOCK, 6 QT CASEOIL, GAS SHOCK, 6 QT CASE
