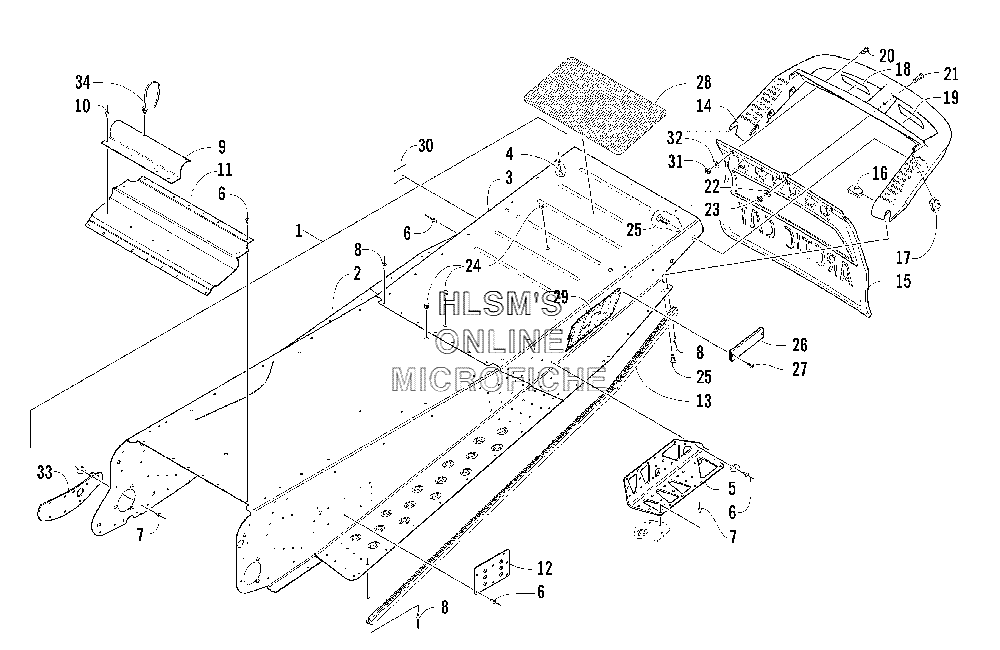

TUNNEL AND REAR BUMPER для Arctic Cat MOUNTAIN CAT 900 1M (BLACK-ORANGE 159) - 2003 года выпуска
-
№АртикулНазвание
-
11718-453 TUNNEL ASSY (INC. 2, 8)TUNNEL ASSY (INC. 2, 8)
-
22606-629 TUNNEL (FRONT)TUNNEL (FRONT)
-
33606-080 TUNNEL REARTUNNEL REAR
-
41623-078 STUD, SELF, CLINCHINGSTUD, SELF, CLINCHING
-
51706-918 BRACKET, SUSPENSION MOUNTING (RIGHT) (REAR)BRACKET, SUSPENSION MOUNTING (RIGHT) (REAR)
-
51706-917 BRACKET, SUSPENSION MOUNTING (LEFT) (REAR)BRACKET, SUSPENSION MOUNTING (LEFT) (REAR)
-
60623-072 RIVETRIVET
-
60123-418 RIVETRIVET
-
60623-806 RIVETRIVET
-
68060-486 RIVETRIVET
-
78060-448 RIVETRIVET
-
88060-484 RIVETRIVET
-
90607-598 BRACKET, MAIN HARNESS PROTECTORBRACKET, MAIN HARNESS PROTECTOR
-
100623-166 RIVETRIVET
-
112606-849 COVER, DRIVEN SHAFTCOVER, DRIVEN SHAFT
-
122706-116 PLATE, SUSPENSION MOUNTING (FRONT)PLATE, SUSPENSION MOUNTING (FRONT)
-
132606-966 ROLL, TUNNEL (RIGHT)ROLL, TUNNEL (RIGHT)
-
132606-967 ROLL, TUNNEL (LEFT)ROLL, TUNNEL (LEFT)
-
141606-200 BUMPER (REAR)BUMPER (REAR)
-
152606-460 SNOWFLAPSNOWFLAP
-
151606-507 SNOWFLAP, REVERSESNOWFLAP, REVERSE
-
160623-427 NUT, UNUT, U
-
170623-771 NUT, UNUT, U
-
181611-567 DECAL, WARNING, TOWING (FRENCH)DECAL, WARNING, TOWING (FRENCH)
-
191611-566 DECAL, WARNING, TOWING (ENGLISH)DECAL, WARNING, TOWING (ENGLISH)
-
208017-579 SCREW, MACHINESCREW, MACHINE
-
218017-580 SCREW, MACHINESCREW, MACHINE
-
228050-217 WASHERWASHER
-
238040-366 NUT, LOCKNUT, LOCK
-
240623-562 PLUG, HOLEPLUG, HOLE
-
258017-581 SCREW, MACHINESCREW, MACHINE
-
260606-029 REFLECTOR (REAR) (RED)REFLECTOR (REAR) (RED)
-
270623-269 CLIP, RETAININGCLIP, RETAINING
-
282606-134 PAD, RUBBERPAD, RUBBER
-
295611-172 DECAL, "159", TUNNELDECAL, "159", TUNNEL
-
300411-053 DECAL, CEDECAL, CE
-
318041-366 NUT, LOCKNUT, LOCK
-
320623-184 WASHERWASHER
-
332606-905 PLATE, BACKING, DROPCASE GUARDPLATE, BACKING, DROPCASE GUARD
-
340623-677 CABLE TIE, PUSH, MOUNTCABLE TIE, PUSH, MOUNT
