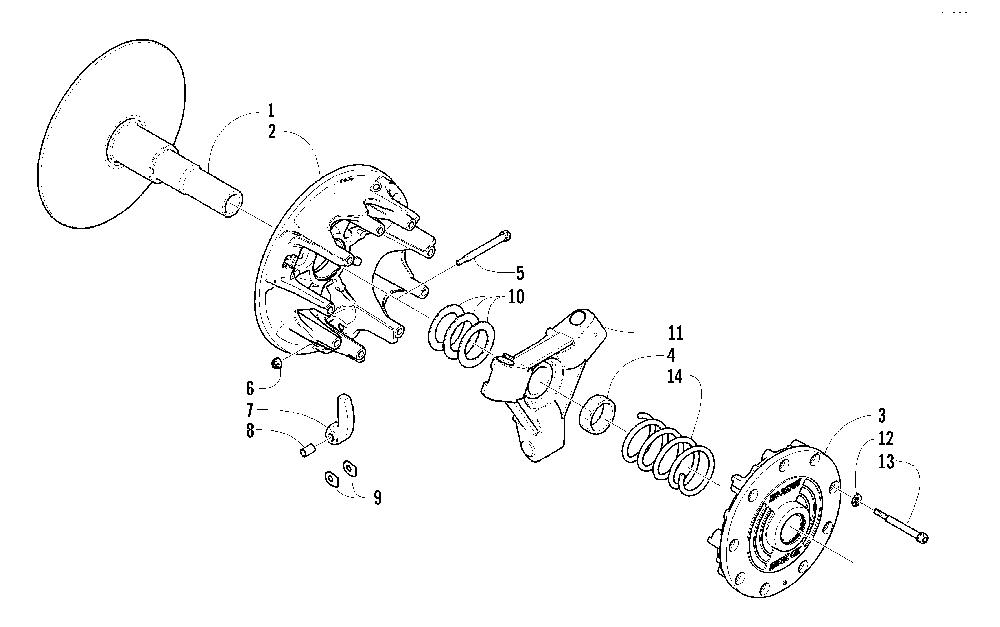

DRIVE CLUTCH для Arctic Cat PANTERA 550 (INTERNATIONAL) - 2003 года выпуска
-
№АртикулНазвание
-
-0725-301 CLUTCH, DRIVE (RED) (50.5)CLUTCH, DRIVE (RED) (50.5)
-
-0725-378 CLUTCH, DRIVE-ASSY (INTERNATIONAL)CLUTCH, DRIVE-ASSY (INTERNATIONAL)
-
-0746-103 UNCALIBRATED DRIVE CLUTCHUNCALIBRATED DRIVE CLUTCH
-
-1639-030 CAM ARM KIT (INC. 5, 6, 8, AND 9)CAM ARM KIT (INC. 5, 6, 8, AND 9)
-
10646-325 SHEAVE, STATIONARYSHEAVE, STATIONARY
-
20746-074 SHEAVE, MOVABLESHEAVE, MOVABLE
-
30746-086 COVERCOVER
-
40646-140 NUTNUT
-
50646-295 PIN, CAM ARMPIN, CAM ARM
-
60623-392 NUT, LOCKNUT, LOCK
-
70746-527 ARM, CAM (INC. 8)ARM, CAM (INC. 8)
-
70746-538 ARM, CAM (INC. 8) (5, 9, 000 FT ALT.)ARM, CAM (INC. 8) (5, 9, 000 FT ALT.)
-
70746-523 ARM, CAM (INC. 8) (OVER 9, 000 FT ALT.)ARM, CAM (INC. 8) (OVER 9, 000 FT ALT.)
-
80646-160 BEARING, CAM ARMBEARING, CAM ARM
-
90646-101 WASHER, CAM ARMWASHER, CAM ARM
-
100646-265 WASHER, SPACERWASHER, SPACER
-
110746-118 SPIDER ASSEMBLYSPIDER ASSEMBLY
-
128051-212 WASHER, LOCKWASHER, LOCK
-
130623-596 SCREW, MACHINESCREW, MACHINE
-
140646-149 SPRING, DRIVE CLUTCH (RED)SPRING, DRIVE CLUTCH (RED)
-
140646-147 SPRING, DRIVE CLUTCH (YELLOW/GREEN) (OVER 5, 000 FT ALT.)SPRING, DRIVE CLUTCH (YELLOW/GREEN) (OVER 5, 000 FT ALT.)
-
140646-148 SPRING, DRIVE CLUTCH (BLUE/INTERNATIONAL)SPRING, DRIVE CLUTCH (BLUE/INTERNATIONAL)
