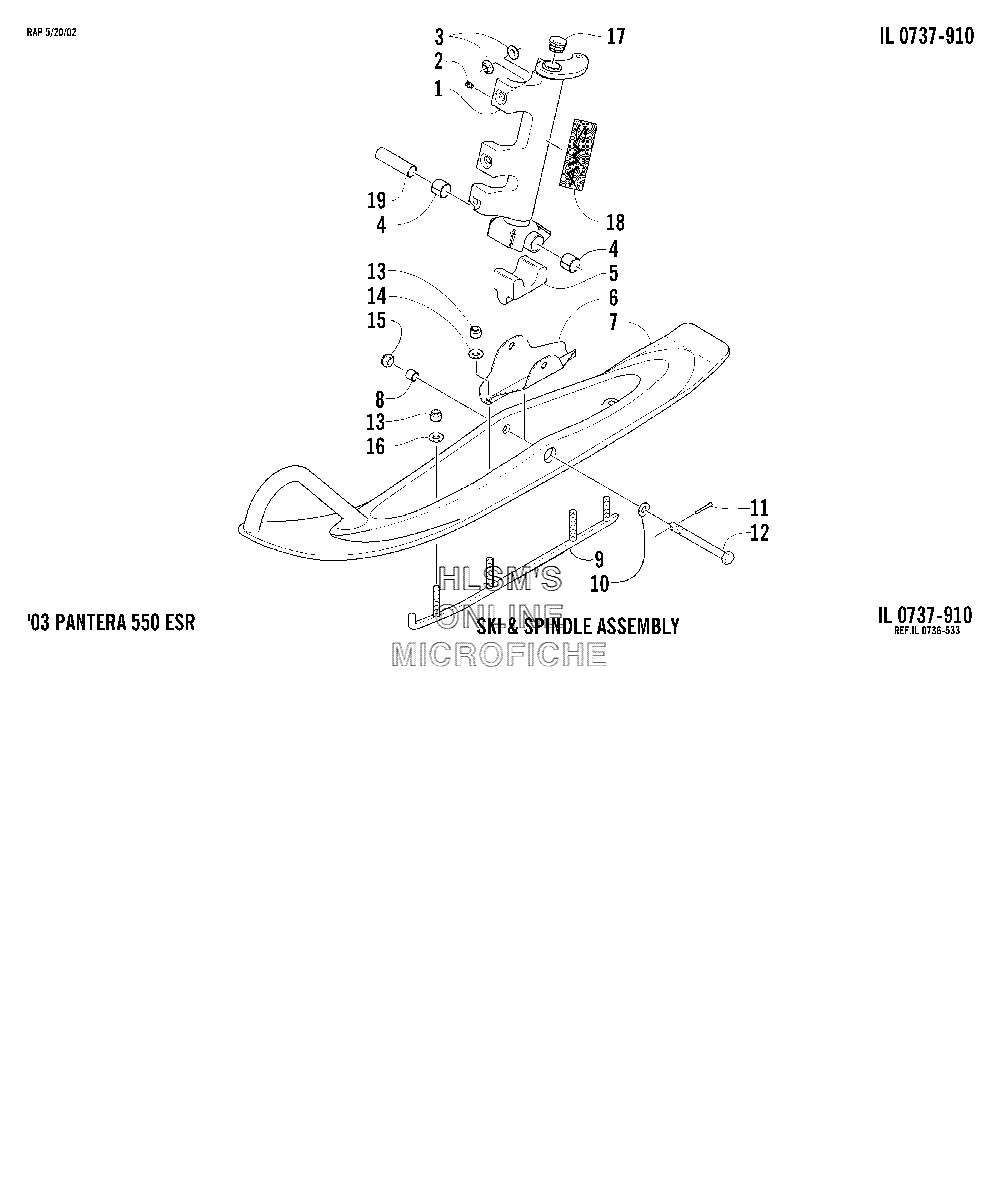

SKI AND SPINDLE ASSEMBLY для Arctic Cat PANTERA 550 (INTERNATIONAL) - 2003 года выпуска
-
№АртикулНазвание
-
10703-898 SPINDLE, STEERING (RIGHT) (PLATINUM) (INC. 2, 4)SPINDLE, STEERING (RIGHT) (PLATINUM) (INC. 2, 4)
-
10703-899 SPINDLE, STEERING (LEFT) (PLATINUM) (INC. 2, 4)SPINDLE, STEERING (LEFT) (PLATINUM) (INC. 2, 4)
-
20623-010 FITTING, GREASEFITTING, GREASE
-
30603-647 INSERT, SPINDLEINSERT, SPINDLE
-
40603-158 BEARINGBEARING
-
51603-257 DAMPER, SKIDAMPER, SKI
-
61603-256 SADDLE, SKI (BLACK)SADDLE, SKI (BLACK)
-
71603-231 SKI (INC. 8)SKI (INC. 8)
-
81603-258 INSERT, SKIINSERT, SKI
-
91703-003 WEARBARWEARBAR
-
108050-307 WASHERWASHER
-
110123-458 PIN, COTTERPIN, COTTER
-
120623-776 SCREW, CAPSCREW, CAP
-
138040-486 NUT, LOCKNUT, LOCK
-
148050-272 WASHERWASHER
-
150123-296 NUT, LOCKNUT, LOCK
-
168050-277 WASHERWASHER
-
170623-831 CAP, SPINDLECAP, SPINDLE
-
184611-706 DECAL, "AWS", SPINDLEDECAL, "AWS", SPINDLE
-
190603-034 AXLE, SPINDLEAXLE, SPINDLE
