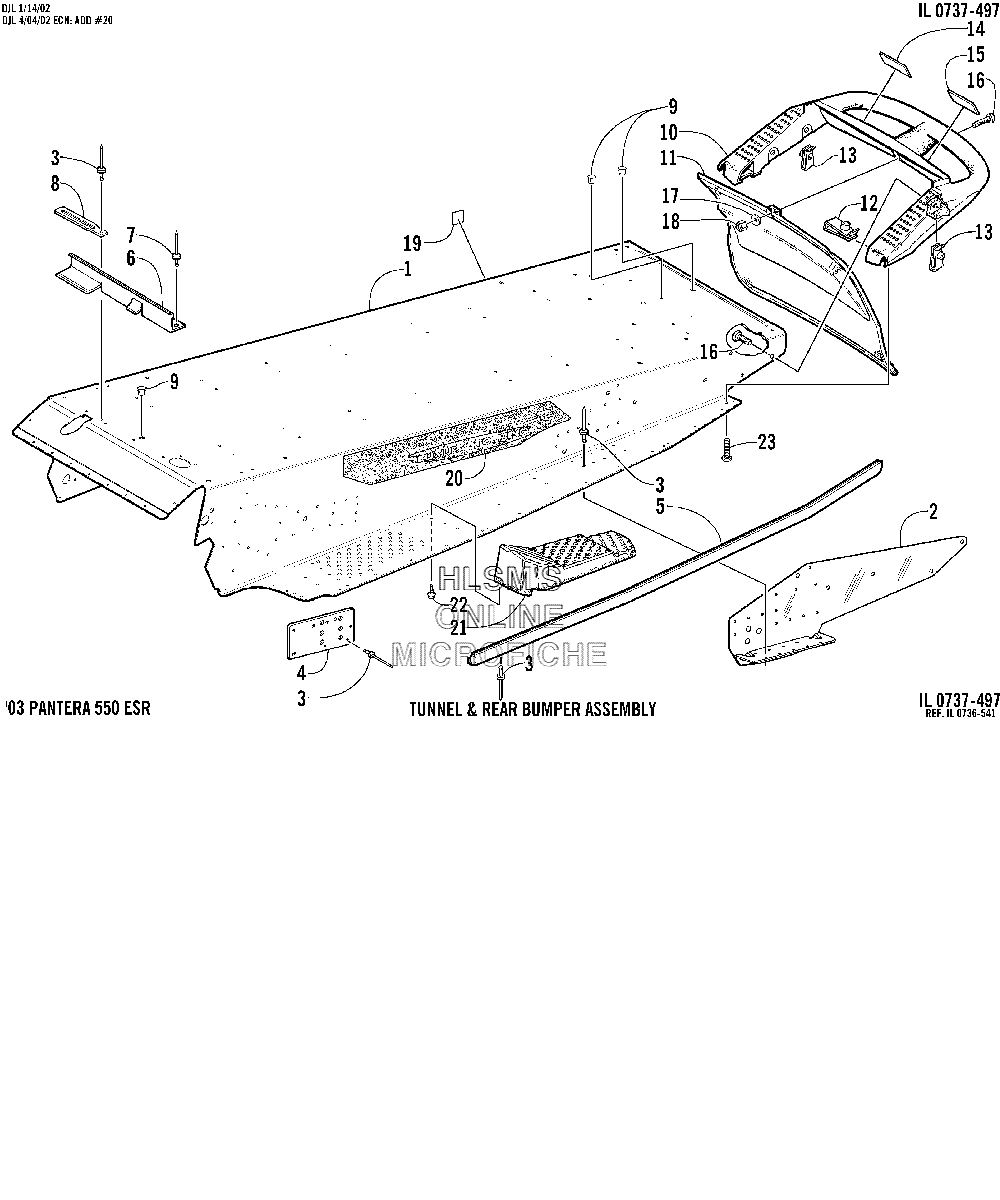

TUNNEL AND REAR BUMPER для Arctic Cat PANTERA 550 (INTERNATIONAL) - 2003 года выпуска
-
№АртикулНазвание
-
11718-310 TUNNEL ASSEMBLY (INC. 2, 3)TUNNEL ASSEMBLY (INC. 2, 3)
-
21706-032 BRACKET, SUSPENSION MOUNTING (RIGHT)BRACKET, SUSPENSION MOUNTING (RIGHT)
-
21706-033 BRACKET, SUSPENSION MOUNTING (LEFT)BRACKET, SUSPENSION MOUNTING (LEFT)
-
30623-072 RIVET, SOLIDRIVET, SOLID
-
30123-418 RIVET, SOLIDRIVET, SOLID
-
38060-506 RIVETRIVET
-
42706-116 PLATE, SUSPENSION MOUNTING (FRONT)PLATE, SUSPENSION MOUNTING (FRONT)
-
52706-118 ROLL, TUNNEL (RIGHT)ROLL, TUNNEL (RIGHT)
-
52706-119 ROLL, TUNNEL (LEFT)ROLL, TUNNEL (LEFT)
-
60707-704 BRACKET, MAIN HARNESS PROTECTORBRACKET, MAIN HARNESS PROTECTOR
-
70623-166 RIVETRIVET
-
83002-964 CLAMPCLAMP
-
90623-562 PLUG, HOLEPLUG, HOLE
-
101606-200 BUMPER (REAR)BUMPER (REAR)
-
111606-507 SNOWFLAP, REVERSESNOWFLAP, REVERSE
-
120623-427 NUT, UNUT, U
-
130623-771 NUT, UNUT, U
-
141611-567 DECAL, WARNING, TOWING (FRENCH)DECAL, WARNING, TOWING (FRENCH)
-
151611-566 DECAL, WARNING, TOWING (ENGLISH)DECAL, WARNING, TOWING (ENGLISH)
-
168017-580 SCREW, MACHINESCREW, MACHINE
-
178050-217 WASHERWASHER
-
188040-366 NUT, LOCKNUT, LOCK
-
190411-053 DECAL, CEDECAL, CE
-
204611-708 DECAL, TUNNEL (RIGHT)DECAL, TUNNEL (RIGHT)
-
204611-709 DECAL, TUNNEL (LEFT)DECAL, TUNNEL (LEFT)
-
211606-478 FOOTREST (REAR) (RIGHT)FOOTREST (REAR) (RIGHT)
-
211606-479 FOOTREST (REAR) (LEFT)FOOTREST (REAR) (LEFT)
-
220623-057 SCREW, SELF, TAPPINGSCREW, SELF, TAPPING
-
238017-581 SCREW, MACHINE (INTERNATIONAL)SCREW, MACHINE (INTERNATIONAL)
