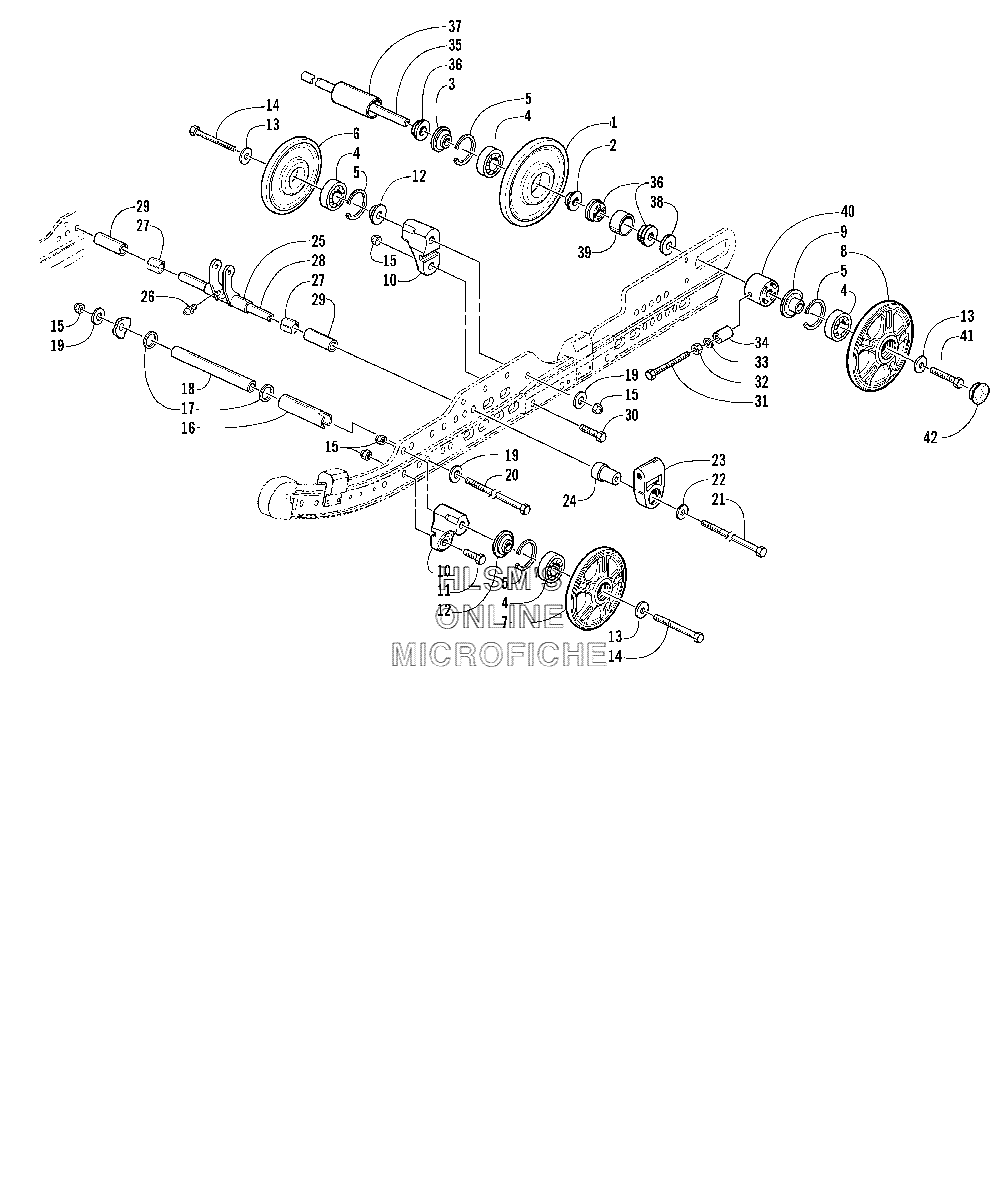

IDLER WHEEL ASSEMBLY для Arctic Cat Z 440 SNO PRO - 2003 года выпуска
-
№АртикулНазвание
-
11604-685 WHEEL, IDLER (INC. 2, 5)WHEEL, IDLER (INC. 2, 5)
-
21604-773 INSERT, WHEEL, OUTSIDEINSERT, WHEEL, OUTSIDE
-
31604-772 INSERT, WHEEL, INSIDEINSERT, WHEEL, INSIDE
-
40107-598 BEARINGBEARING
-
50123-798 RING, RETAININGRING, RETAINING
-
61604-690 WHEEL, IDLER (INC. 4, 5)WHEEL, IDLER (INC. 4, 5)
-
72604-540 WHEEL, IDLER (YELLOW) (INC. 4, 5)WHEEL, IDLER (YELLOW) (INC. 4, 5)
-
82604-347 WHEEL, IDLER (YELLOW) (INC. 4, 5 AND 9)WHEEL, IDLER (YELLOW) (INC. 4, 5 AND 9)
-
91604-774 INSERT, WHEELINSERT, WHEEL
-
101604-612 BLOCK, MOUNTING, IDLER WHEELBLOCK, MOUNTING, IDLER WHEEL
-
118002-224 SCREW, CAPSCREW, CAP
-
121604-501 INSERT, WHEELINSERT, WHEEL
-
130123-570 WASHERWASHER
-
148002-232 SCREW, CAPSCREW, CAP
-
158040-486 NUT, LOCKNUT, LOCK
-
161604-793 SPACERSPACER
-
170623-912 WASHERWASHER
-
181604-792 AXLE, STEELAXLE, STEEL
-
190623-044 WASHERWASHER
-
200623-907 SCREW, CAPSCREW, CAP
-
218002-229 SCREW, CAPSCREW, CAP
-
228050-282 WASHERWASHER
-
230604-403 SLIDE, SPRINGSLIDE, SPRING
-
240604-912 BLOCK, SLIDEBLOCK, SLIDE
-
250704-772 PIVOT, SHOCK (INC. 26, 27)PIVOT, SHOCK (INC. 26, 27)
-
269916-963 FITTING, GREASEFITTING, GREASE
-
270603-083 BEARINGBEARING
-
280604-930 AXLE, INNERAXLE, INNER
-
292604-109 SPACERSPACER
-
308002-226 SCREW, CAPSCREW, CAP
-
310623-123 SCREW, CAPSCREW, CAP
-
328042-486 NUTNUT
-
338051-277 WASHER, LOCKWASHER, LOCK
-
340704-854 SPACERSPACER
-
350604-208 AXLE (REAR)AXLE (REAR)
-
360604-968 BUSHING, SPACERBUSHING, SPACER
-
370604-144 SPACERSPACER
-
380623-220 WASHERWASHER
-
390604-937 SPACER WHEEL (REAR)SPACER WHEEL (REAR)
-
400604-936 BUSHING, ADJUSTERBUSHING, ADJUSTER
-
418002-223 SCREW, CAPSCREW, CAP
-
420604-246 CAP, IDLER WHEELCAP, IDLER WHEEL
