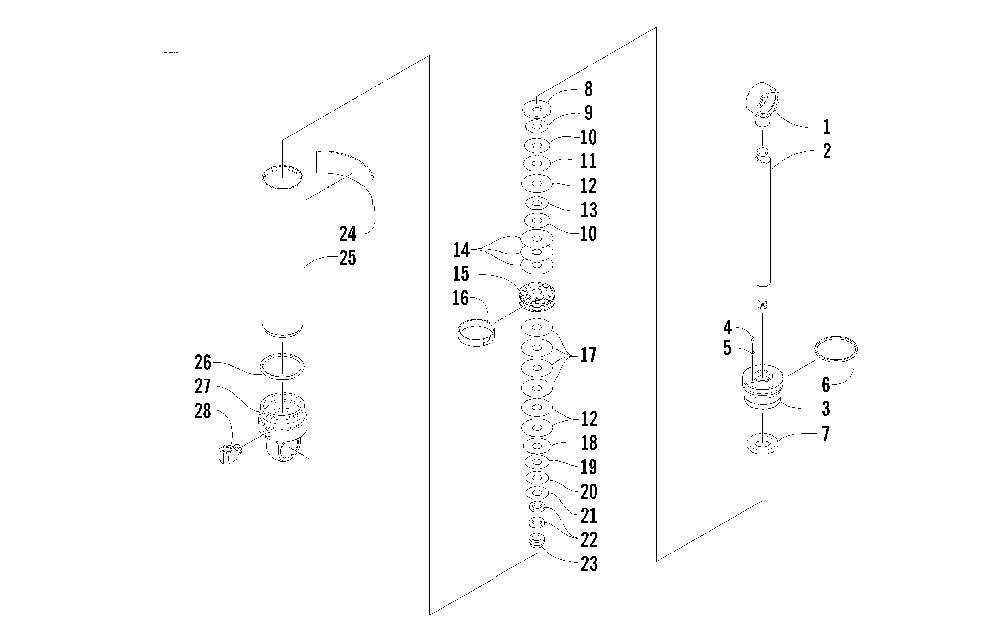

REAR SUSPENSION REAR ARM SHOCK ABSORBER для Arctic Cat Z 440 SNO PRO - 2003 года выпуска
-
№АртикулНазвание
-
12604-240 EYELET, SHOCKEYELET, SHOCK
-
22604-447 ROD, SHOCKROD, SHOCK
-
32604-569 CAP, SHOCK (INC. 4, 6)CAP, SHOCK (INC. 4, 6)
-
42604-530 SCREW (INC. 5)SCREW (INC. 5)
-
51604-425 O-RINGO-RING
-
60603-671 O-RINGO-RING
-
72604-233 SPACER, SHOCK RODSPACER, SHOCK ROD
-
82604-449 WASHER, TOP OUTWASHER, TOP OUT
-
92604-481 VALVE, SHOCK 0.950 X 0.012 IN.VALVE, SHOCK 0.950 X 0.012 IN.
-
102604-486 VALVE, SHOCK 1.100 X 0.010 IN.VALVE, SHOCK 1.100 X 0.010 IN.
-
112604-492 VALVE, SHOCK 1.350 X 0.010 IN.VALVE, SHOCK 1.350 X 0.010 IN.
-
122604-497 VALVE, SHOCK 1.425 X 0.010 IN.VALVE, SHOCK 1.425 X 0.010 IN.
-
132604-478 VALVE, SHOCK 0.950 X 0.006 IN.VALVE, SHOCK 0.950 X 0.006 IN.
-
142604-502 VALVE, SHOCK 1.600 X 0.010 IN.VALVE, SHOCK 1.600 X 0.010 IN.
-
152604-466 PISTON, 0.046 IN., ORIFICEPISTON, 0.046 IN., ORIFICE
-
161603-235 STRAP, PISTON, TEFLONSTRAP, PISTON, TEFLON
-
172604-498 VALVE, SHOCK 1.425 X 0.012 IN.VALVE, SHOCK 1.425 X 0.012 IN.
-
182604-493 VALVE, SHOCK 1.350 X 0.012 IN.VALVE, SHOCK 1.350 X 0.012 IN.
-
192604-487 VALVE, SHOCK 1.100 X 0.012 IN.VALVE, SHOCK 1.100 X 0.012 IN.
-
202604-480 VALVE, SHOCK 0.950 X 0.010 IN.VALVE, SHOCK 0.950 X 0.010 IN.
-
212604-474 VALVE, SHOCK 0.800 X 0.010 IN.VALVE, SHOCK 0.800 X 0.010 IN.
-
222604-450 WASHER, BACKUPWASHER, BACKUP
-
232604-448 NUTNUT
-
241603-932 DECAL, SHOCKDECAL, SHOCK
-
252604-446 BODY, SHOCKBODY, SHOCK
-
260604-810 O-RINGO-RING
-
272604-451 END CAP, SHOCKEND CAP, SHOCK
-
282604-452 FITTING, ELBOWFITTING, ELBOW
