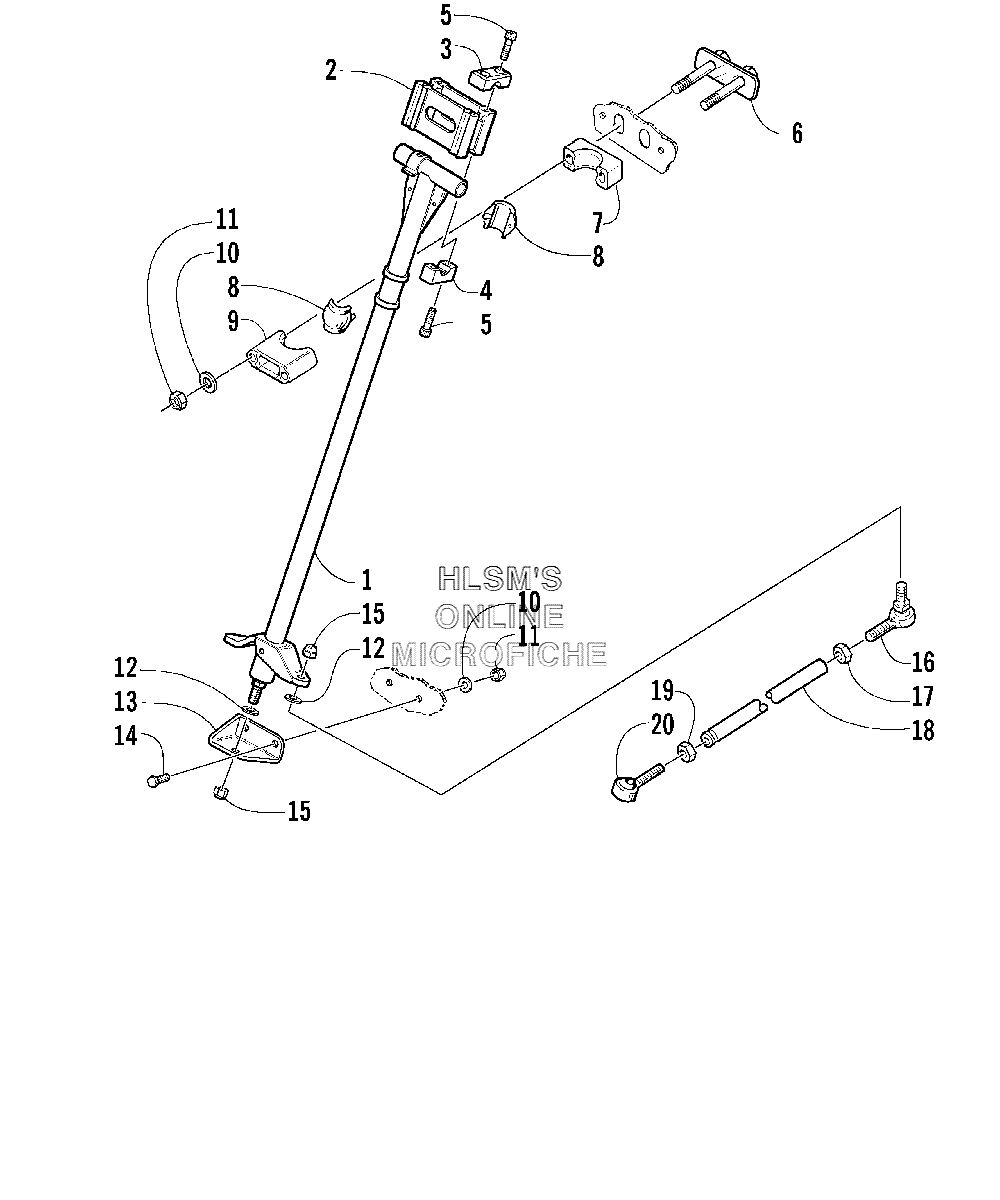

STEERING POST ASSEMBLY для Arctic Cat Z 440 SNO PRO - 2003 года выпуска
-
№АртикулНазвание
-
10705-908 POST, STEERINGPOST, STEERING
-
20605-491 RISER, HANDLEBAR, 5.44 IN.RISER, HANDLEBAR, 5.44 IN.
-
20605-513 RISER, HANDLEBAR, 4.44 IN.RISER, HANDLEBAR, 4.44 IN.
-
20605-512 RISER, HANDLEBAR, 6.44 IN.RISER, HANDLEBAR, 6.44 IN.
-
20605-514 RISER, HANDLEBAR, 2.44 IN.RISER, HANDLEBAR, 2.44 IN.
-
30705-355 CAP, ADJUSTING BLOCK (UPPER)CAP, ADJUSTING BLOCK (UPPER)
-
40705-881 CAP, ADJUSTING BLOCK (LOWER)CAP, ADJUSTING BLOCK (LOWER)
-
50623-872 SCREW, CAPSCREW, CAP
-
60605-427 PLATE, BACKING, STEERING SUPPORTPLATE, BACKING, STEERING SUPPORT
-
70605-171 CAP, BEARING HOUSINGCAP, BEARING HOUSING
-
80405-020 BEARING, HALFBEARING, HALF
-
90705-335 HOUSING, BEARINGHOUSING, BEARING
-
108050-247 WASHERWASHER
-
118040-426 NUT, LOCKNUT, LOCK
-
120623-044 WASHERWASHER
-
130705-857 PLATE, STEERING POSTPLATE, STEERING POST
-
148002-130 SCREW, CAPSCREW, CAP
-
150623-025 NUT, LOCKNUT, LOCK
-
160605-423 BALL JOINT, TIE ROD (LEFT)BALL JOINT, TIE ROD (LEFT)
-
170123-917 NUT, HEX (LEFT)NUT, HEX (LEFT)
-
180605-404 TUBE, TIE RODTUBE, TIE ROD
-
190623-294 NUT, HEX (RIGHT)NUT, HEX (RIGHT)
-
200605-504 BALL JOINT, TIE ROD (RIGHT)BALL JOINT, TIE ROD (RIGHT)
