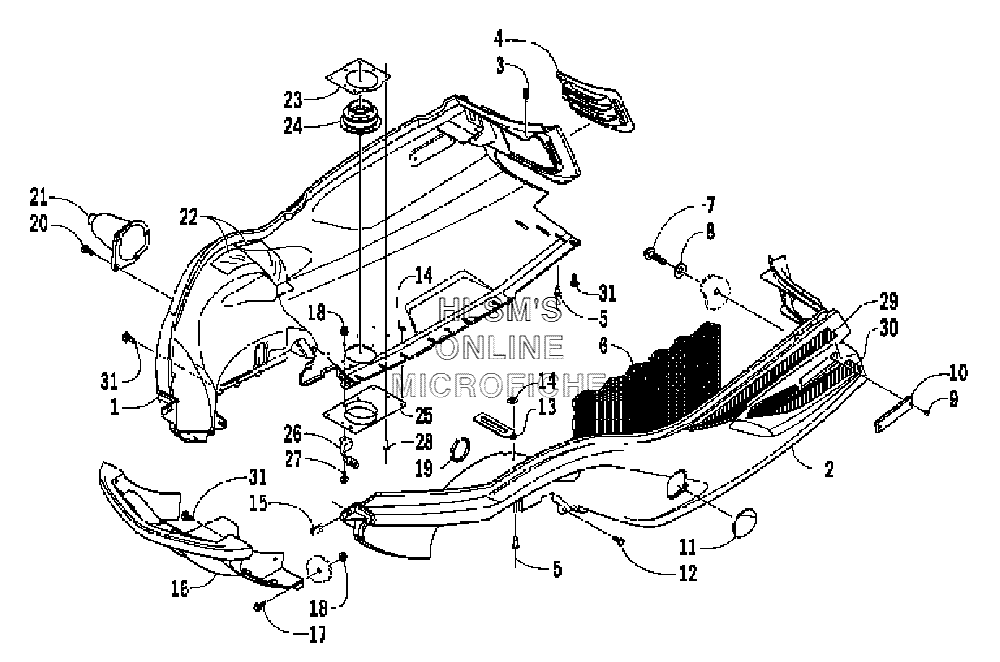

BELLY PAN AND FRONT BUMPER ASSY. для Arctic Cat Pantera 550 - 2004 года выпуска
-
№АртикулНазвание
-
11706-216 BELLY PAN (RIGHT)BELLY PAN (RIGHT)
-
21706-141 BELLY PAN (LEFT)BELLY PAN (LEFT)
-
30623-378 SCREW, SELF, TAPPINGSCREW, SELF, TAPPING
-
41606-044 LOUVER, AIR, INTAKE (RIGHT)LOUVER, AIR, INTAKE (RIGHT)
-
41606-045 LOUVER, AIR, INTAKE (LEFT)LOUVER, AIR, INTAKE (LEFT)
-
58061-508 RIVETRIVET
-
60617-315 FOAM, BELLY PAN (LEFT)FOAM, BELLY PAN (LEFT)
-
70623-647 SCREW, SELF, TAPPINGSCREW, SELF, TAPPING
-
80623-184 WASHERWASHER
-
90623-269 CLIP, RETAININGCLIP, RETAINING
-
100606-526 REFLECTOR (FRONT/AMBER)REFLECTOR (FRONT/AMBER)
-
111606-767 PANEL, CLUTCH ACCESSPANEL, CLUTCH ACCESS
-
120623-784 SCREW, SELF, TAPPINGSCREW, SELF, TAPPING
-
133002-964 CLAMP, WIRECLAMP, WIRE
-
140123-149 WASHERWASHER
-
150623-427 NUT, UNUT, U
-
161606-949 BUMPER (FRONT)BUMPER (FRONT)
-
178020-040 SCREW, CAPSCREW, CAP
-
188048-366 NUT, LOCKNUT, LOCK
-
190123-788 CABLE TIE, 7.5 IN.CABLE TIE, 7.5 IN.
-
200623-564 SCREW, SELF, TAPPINGSCREW, SELF, TAPPING
-
210605-332 BOOT, STEERING (RIGHT)BOOT, STEERING (RIGHT)
-
210605-333 BOOT, STEERING (LEFT)BOOT, STEERING (LEFT)
-
220619-206 TAPE, FOILTAPE, FOIL
-
230712-881 RING, EXHAUST OUTLET (UPPER)RING, EXHAUST OUTLET (UPPER)
-
240612-470 BOOT, EXHAUSTBOOT, EXHAUST
-
250712-880 RING, EXHAUST OUTLET (LOWER)RING, EXHAUST OUTLET (LOWER)
-
260712-879 DEFLECTOR, EXHAUSTDEFLECTOR, EXHAUST
-
278020-039 SCREW, CAPSCREW, CAP
-
288060-508 RIVETRIVET
-
295611-220 DECAL, BELLY PAN (UPPER/RIGHT)DECAL, BELLY PAN (UPPER/RIGHT)
-
295611-221 DECAL, BELLY PAN (UPPER/LEFT)DECAL, BELLY PAN (UPPER/LEFT)
-
305611-218 DECAL, BELLY PAN (LOWER/RIGHT)DECAL, BELLY PAN (LOWER/RIGHT)
-
305611-219 DECAL, BELLY PAN (LOWER/LEFT)DECAL, BELLY PAN (LOWER/LEFT)
-
311623-129 SCREW, SELF, TAPPINGSCREW, SELF, TAPPING
