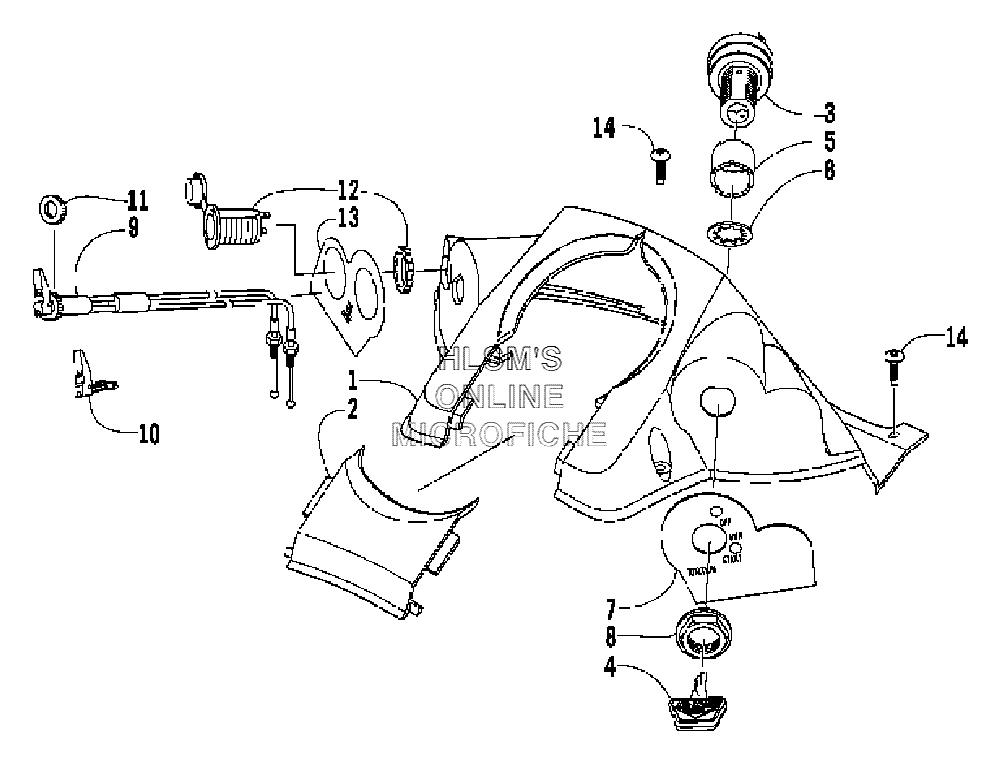

CONSOLE AND SWITCH ASSY. для Arctic Cat Pantera 550 - 2004 года выпуска
-
№АртикулНазвание
-
11606-614 CONSOLECONSOLE
-
21606-105 DOOR, CONSOLEDOOR, CONSOLE
-
30609-449 SWITCH, IGNITION (INC. 4)SWITCH, IGNITION (INC. 4)
-
50609-450 SPACER, IGNITION SWITCHSPACER, IGNITION SWITCH
-
60123-899 WASHER, LOCK, INTERNAL TOOTHWASHER, LOCK, INTERNAL TOOTH
-
72611-744 DECAL, CONSOLE (RIGHT)DECAL, CONSOLE (RIGHT)
-
80609-113 NUT, RETAININGNUT, RETAINING
-
90687-007 CABLE, CHOKE (INC. 10, 11)CABLE, CHOKE (INC. 10, 11)
-
100636-062 KIT, CHOKE LEVERKIT, CHOKE LEVER
-
110623-054 NUT, CHOKENUT, CHOKE
-
120641-158 OUTLET, ACCESSORYOUTLET, ACCESSORY
-
133611-405 DECAL, CONSOLE (LEFT)DECAL, CONSOLE (LEFT)
-
141623-175 SCREW, SELF, TAPPINGSCREW, SELF, TAPPING
