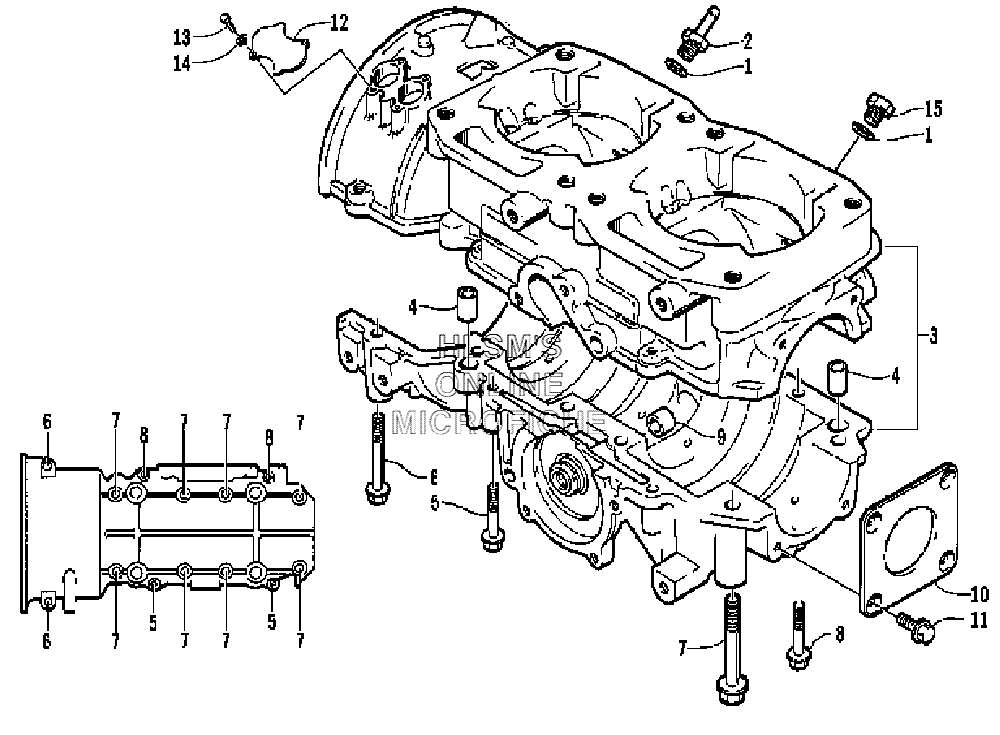

CRANKCASE ASSY. для Arctic Cat Pantera 550 - 2004 года выпуска
-
№АртикулНазвание
-
13002-276 GASKETGASKET
-
23002-040 UNION, HOSEUNION, HOSE
-
33005-406 CRANKCASE ASSY. (INC. 4, 9)CRANKCASE ASSY. (INC. 4, 9)
-
43003-646 PIN, DOWELPIN, DOWEL
-
53004-442 BOLTBOLT
-
63004-444 BOLTBOLT
-
73004-881 BOLTBOLT
-
83004-880 BOLTBOLT
-
93003-647 BUSHING, OIL PUMP SHAFTBUSHING, OIL PUMP SHAFT
-
103004-775 PLATE, OIL SEALPLATE, OIL SEAL
-
113004-377 BOLTBOLT
-
123006-440 COVER, SENSOR OPENINGCOVER, SENSOR OPENING
-
130623-352 SCREW, CAPSCREW, CAP
-
148051-152 WASHER, LOCKWASHER, LOCK
-
153006-634 PLUG, CRANKCASEPLUG, CRANKCASE
