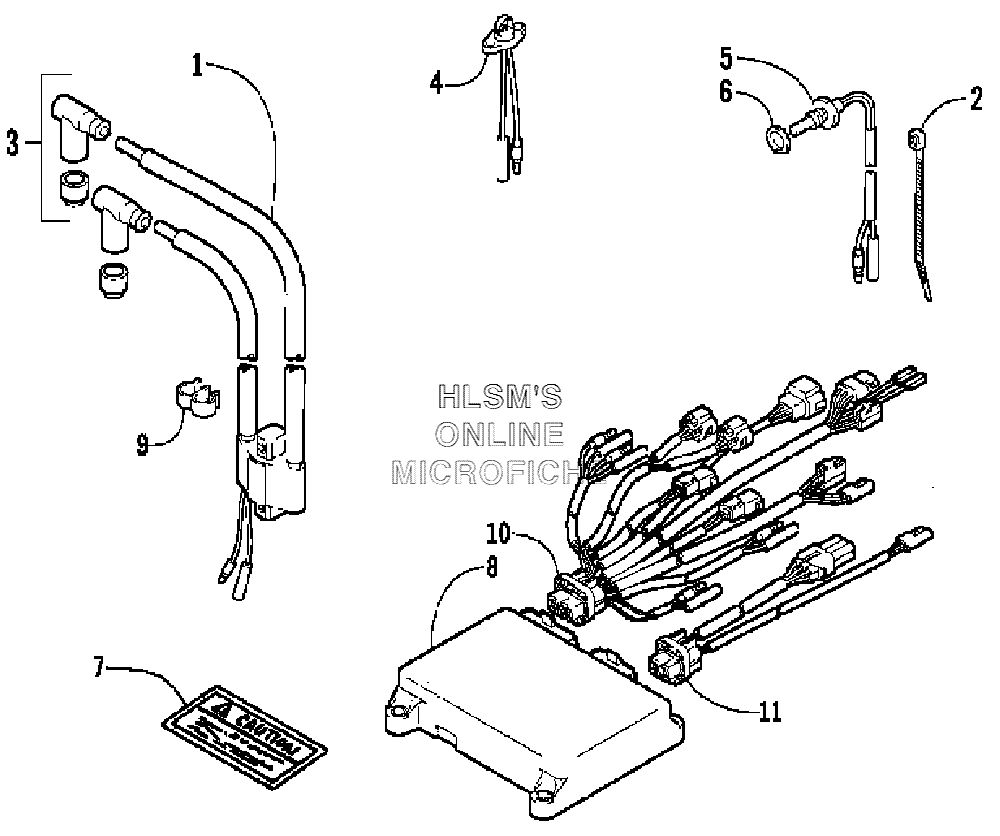

ELECTRICAL для Arctic Cat Pantera 600 EFI (Gold) - 2004 года выпуска
-
№АртикулНазвание
-
13005-381 COIL, IGNITION, ASSY.COIL, IGNITION, ASSY.
-
23005-237 CABLE TIECABLE TIE
-
33006-367 CAP, SPARK PLUGCAP, SPARK PLUG
-
43005-460 SENSOR, TEMPERATURESENSOR, TEMPERATURE
-
53005-462 SENSOR, COOLANTSENSOR, COOLANT
-
63005-233 WASHER, COOLANT SENSORWASHER, COOLANT SENSOR
-
72611-755 DECAL, CAUTION, "HOT SURFACE"DECAL, CAUTION, "HOT SURFACE"
-
83006-667 ECU, CIRCLEECU, CIRCLE
-
83006-668 ECU, SQUAREECU, SQUARE
-
83006-669 ECU, TRIANGLEECU, TRIANGLE
-
93005-387 CLAMPCLAMP
-
103005-906 HARNESS, ECUHARNESS, ECU
-
113005-907 HARNESS, APVHARNESS, APV
Все узлы модели:
- A-ARM ASSY.
- AIR SILENCER ASSY.
- BACKREST AND TAILLIGHT ASSY.
- BATTERY- SOLENOID- AND CABLES
- BELLY PAN AND FRONT BUMPER ASSY.
- BELT GUARD ASSY.
- CONSOLE AND SWITCH ASSY.
- COOLING ASSY.
- CRANKCASE ASSY.
- CYLINDER AND HEAD ASSY.
- DRIVE CLUTCH
- DRIVE TRAIN SHAFTS AND BRAKE ASSY.
- DRIVE/REVERSE DROPCASE ASSY.
- DRIVEN CLUTCH
- DROPCASE AND CHAIN TENSION ASSY.
- • ELECTRICAL
- ENGINE AND RELATED PARTS
- EXHAUST ASSY.
- FLEX-DRIVE STARTER MOTOR ASSY.
- FRONT FRAME AND FOOTREST ASSY.
- FUEL PUMP ASSY.
- GAS TANK AND SEAT ASSY.
- HANDLEBAR AND CONTROLS
- HEADLIGHT- INSTRUMENTS- AND WIRING ASSY.
- HOOD AND WINDSHIELD ASSY.
- HYDRAULIC BRAKE CONTROL ASSY.
- IDLER WHEEL ASSY.
- MAGNETO
- OIL PUMP
- OIL TANK ASSY.
- PISTON AND CRANKSHAFT
- REAR SUSPENSION FRONT ARM ASSY.
- REAR SUSPENSION REAR ARM ASSY.
- RECOIL STARTER
- REED VALVE ASSY.
- RELATED ITEMS
- REVERSE SHIFT LEVER ASSY.
- SERVOMOTOR ASSY.
- SHOCK ABSORBER AND SWAY BAR ASSY.
- SKI AND SPINDLE ASSY.
- SLIDE RAIL AND TRACK ASSY.
- STEERING POST ASSY.
- THROTTLE BODY ASSY.
- TIE ROD ASSY.
- TUNNEL AND REAR BUMPER
- WATER PUMP AND THERMOSTAT
