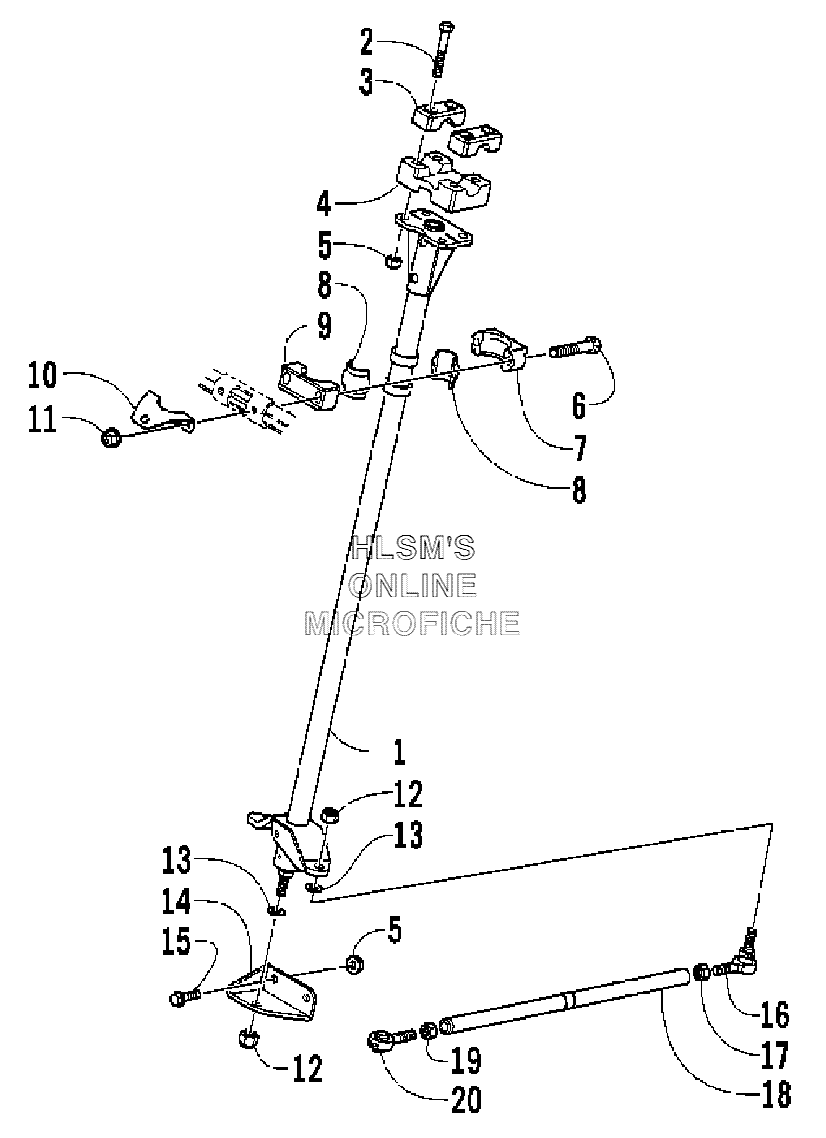

STEERING POST ASSY. для Arctic Cat Pantera 600 EFI (Gold) - 2004 года выпуска
-
№АртикулНазвание
-
10705-837 POST, STEERINGPOST, STEERING
-
28002-137 SCREW, CAPSCREW, CAP
-
30605-506 CAP, ADJUSTING BLOCKCAP, ADJUSTING BLOCK
-
40605-507 BLOCK, ADJUSTINGBLOCK, ADJUSTING
-
58048-426 NUT, LOCKNUT, LOCK
-
60623-814 SCREW, CAPSCREW, CAP
-
70605-406 CAP, BEARING HOUSINGCAP, BEARING HOUSING
-
80405-020 BEARING, HALFBEARING, HALF
-
90605-147 HOUSING, BEARINGHOUSING, BEARING
-
100645-364 BRACKET, MOUNTING, HOOD SWITCHBRACKET, MOUNTING, HOOD SWITCH
-
118048-366 NUT, LOCKNUT, LOCK
-
120623-025 NUT, LOCKNUT, LOCK
-
130623-044 WASHERWASHER
-
140705-407 PLATE, BACKINGPLATE, BACKING
-
158020-130 SCREW, CAPSCREW, CAP
-
160605-423 BALL JOINT, STEERING (LEFT)BALL JOINT, STEERING (LEFT)
-
170123-917 NUT, HEX (LEFT)NUT, HEX (LEFT)
-
180605-626 TUBE, TIE RODTUBE, TIE ROD
-
190623-294 NUT, HEX (RIGHT)NUT, HEX (RIGHT)
-
200605-504 BALL JOINT, TIE ROD (RIGHT)BALL JOINT, TIE ROD (RIGHT)
