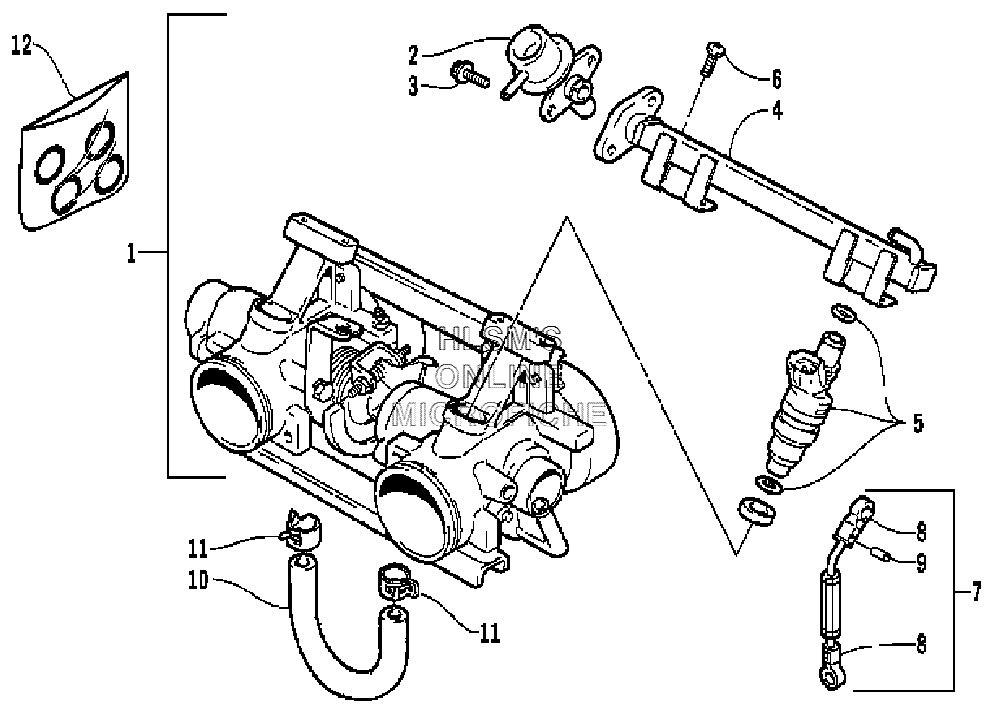

THROTTLE BODY ASSY. для Arctic Cat Pantera 600 EFI (Gold) - 2004 года выпуска
-
№АртикулНазвание
-
13005-903 BODY, THROTTLE, ASSY., CIRCLE (INC. 2, 6)BODY, THROTTLE, ASSY., CIRCLE (INC. 2, 6)
-
13005-810 BODY, THROTTLE, ASSY., SQUARE (INC. 2, 6)BODY, THROTTLE, ASSY., SQUARE (INC. 2, 6)
-
13005-904 BODY, THROTTLE, ASSY., TRIANGLE (INC. 2, 6)BODY, THROTTLE, ASSY., TRIANGLE (INC. 2, 6)
-
23005-074 REGULATOR, FUELREGULATOR, FUEL
-
33004-338 BOLTBOLT
-
43005-691 PIPE, DELIVERYPIPE, DELIVERY
-
53005-811 INJECTOR, FUEL, ASSY., CIRCLEINJECTOR, FUEL, ASSY., CIRCLE
-
53005-812 INJECTOR, FUEL, ASSY., SQUAREINJECTOR, FUEL, ASSY., SQUARE
-
53005-813 INJECTOR, FUEL, ASSY., TRIANGLEINJECTOR, FUEL, ASSY., TRIANGLE
-
63005-320 SCREWSCREW
-
73005-693 ROD, CONTROL, OIL PUMP (INC. 8, 9)ROD, CONTROL, OIL PUMP (INC. 8, 9)
-
83005-737 END, RODEND, ROD
-
93005-738 PIN, SPRINGPIN, SPRING
-
103005-103 HOSEHOSE
-
113004-193 CLAMP, HOSECLAMP, HOSE
-
123005-692 O-RING SET (INC. ALL THROTTLE BODY O-RINGS)O-RING SET (INC. ALL THROTTLE BODY O-RINGS)
