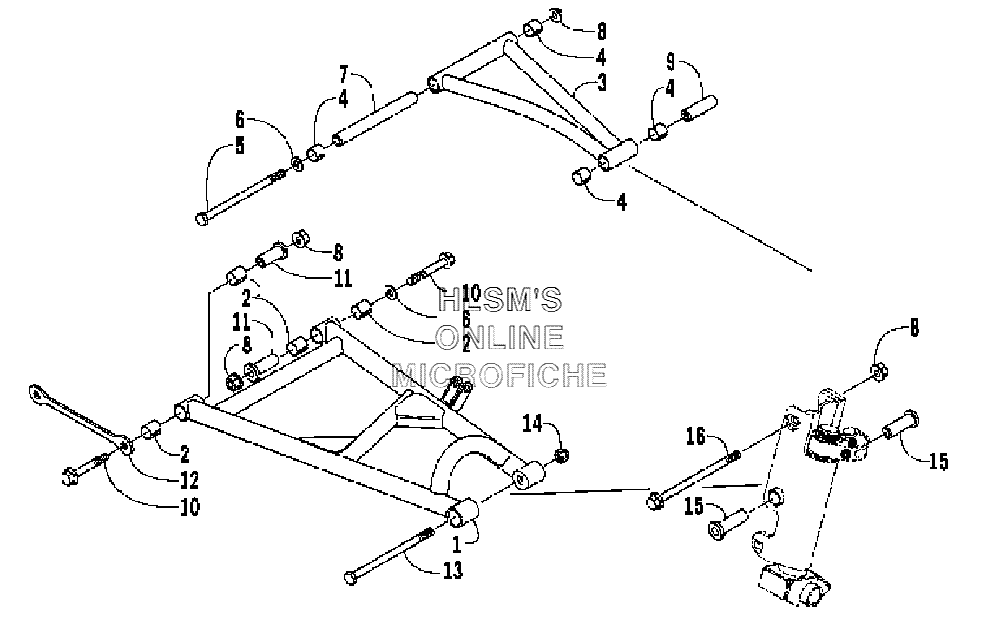

A-ARM ASSY. для Arctic Cat Sabercat 500 (Red) - 2004 года выпуска
-
№АртикулНазвание
-
11703-460 A, ARM (LOWER/RIGHT) (INC. 2)A, ARM (LOWER/RIGHT) (INC. 2)
-
11703-461 A, ARM (LOWER/LEFT) (INC. 2)A, ARM (LOWER/LEFT) (INC. 2)
-
21603-895 BEARINGBEARING
-
31703-094 A, ARM (UPPER) (INC. 4)A, ARM (UPPER) (INC. 4)
-
40603-083 BEARINGBEARING
-
50623-952 SCREW, CAPSCREW, CAP
-
60623-664 WASHERWASHER
-
71603-563 AXLE, INNER ARM (UPPER)AXLE, INNER ARM (UPPER)
-
88048-486 NUT, LOCKNUT, LOCK
-
90603-864 TUBE, AXLETUBE, AXLE
-
108020-230 SCREW, CAPSCREW, CAP
-
112603-179 AXLE, INNER ARM (LOWER)AXLE, INNER ARM (LOWER)
-
122606-886 BRACE A, ARM (LOWER)BRACE A, ARM (LOWER)
-
131623-009 SCREW, CAPSCREW, CAP
-
148040-546 NUT, LOCKNUT, LOCK
-
151603-616 AXLE (POWDER METAL)AXLE (POWDER METAL)
-
168026-232 SCREW, CAPSCREW, CAP
