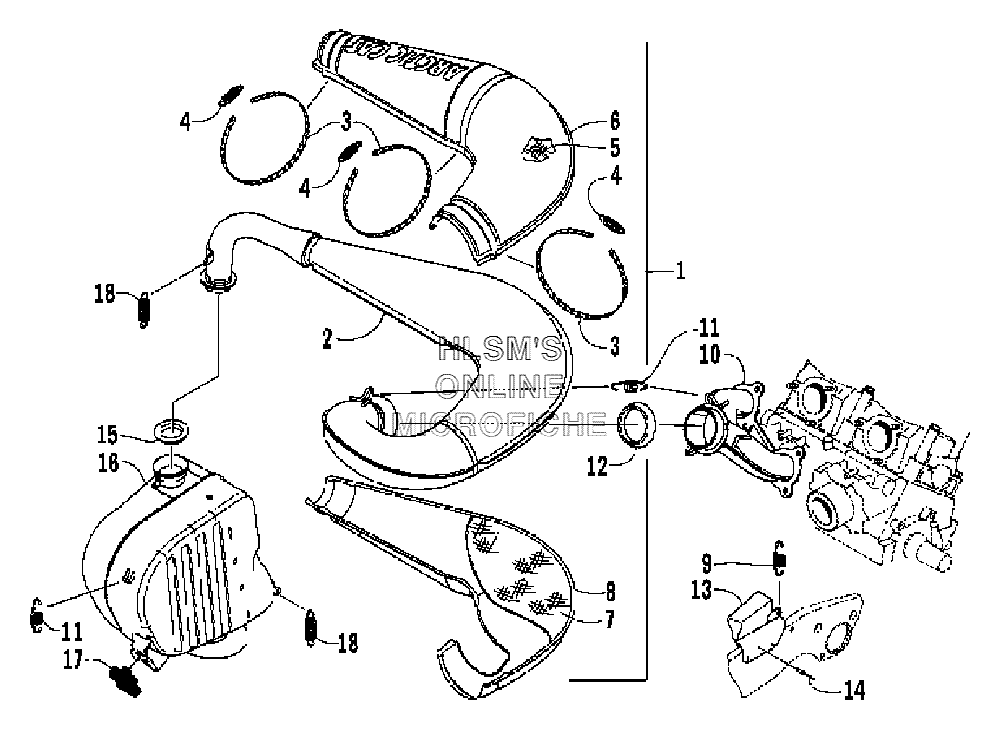

EXHAUST ASSY. для Arctic Cat Sabercat 500 (Red) - 2004 года выпуска
-
№АртикулНазвание
-
10712-980 CHAMBER, EXPANSION, ASSY. (INC. 2, 8)CHAMBER, EXPANSION, ASSY. (INC. 2, 8)
-
20712-979 CHAMBER, EXPANSIONCHAMBER, EXPANSION
-
30624-526 TIE, PERFORATED BAND (5 FT)TIE, PERFORATED BAND (5 FT)
-
30624-541 TIE, PERFORATED BAND (25 FT)TIE, PERFORATED BAND (25 FT)
-
41612-178 SPRING, EXHAUSTSPRING, EXHAUST
-
51612-693 PACKING, EXPANSION CHAMBER (UPPER)PACKING, EXPANSION CHAMBER (UPPER)
-
61612-696 COVER, EXPANSION CHAMBER (UPPER)COVER, EXPANSION CHAMBER (UPPER)
-
71612-694 PACKING, EXPANSION CHAMBER (LOWER)PACKING, EXPANSION CHAMBER (LOWER)
-
81612-695 COVER, EXPANSION CHAMBER (LOWER)COVER, EXPANSION CHAMBER (LOWER)
-
90612-668 SPRING, EXTENSIONSPRING, EXTENSION
-
101712-041 MANIFOLD, EXHAUSTMANIFOLD, EXHAUST
-
110612-820 SPRING, EXTENSIONSPRING, EXTENSION
-
121612-014 GASKET, EXHAUSTGASKET, EXHAUST
-
131712-068 BRACKET, MOUNTING, EXPANSION CHAMBERBRACKET, MOUNTING, EXPANSION CHAMBER
-
140623-072 RIVETRIVET
-
150612-693 GASKET, EXHAUST, TAILPIPEGASKET, EXHAUST, TAILPIPE
-
161712-020 RESONATORRESONATOR
-
171612-685 MOUNT, RESONATOR, RUBBERMOUNT, RESONATOR, RUBBER
-
180612-471 SPRING, EXHAUSTSPRING, EXHAUST
