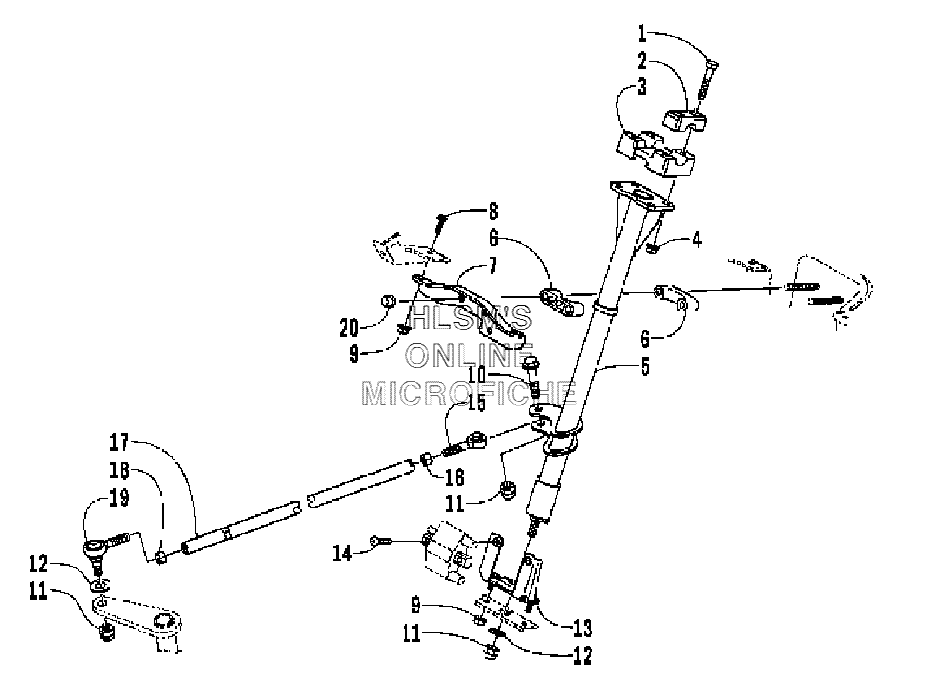

STEERING POST ASSY. для Arctic Cat Sabercat 500 (Red) - 2004 года выпуска
-
№АртикулНазвание
-
18002-137 SCREW, CAPSCREW, CAP
-
20605-506 CAP, ADJUSTING BLOCKCAP, ADJUSTING BLOCK
-
30605-507 BLOCK, ADJUSTINGBLOCK, ADJUSTING
-
48048-426 NUT, LOCKNUT, LOCK
-
50705-844 POST, STEERINGPOST, STEERING
-
60605-576 BLOCK, MOUNTING, STEERING POSTBLOCK, MOUNTING, STEERING POST
-
70605-649 PLATE, RETAININGPLATE, RETAINING
-
88017-581 SCREW, MACHINESCREW, MACHINE
-
98048-366 NUT, LOCKNUT, LOCK
-
108004-225 SCREW, CAPSCREW, CAP
-
110623-025 NUT, LOCKNUT, LOCK
-
120623-044 WASHERWASHER
-
130705-947 STOP, STEERING POSTSTOP, STEERING POST
-
148017-402 SCREW, MACHINESCREW, MACHINE
-
150605-504 BALL JOINT, TIE ROD (RIGHT)BALL JOINT, TIE ROD (RIGHT)
-
160623-294 NUT, HEX (RIGHT)NUT, HEX (RIGHT)
-
170605-672 TUBE, TIE RODTUBE, TIE ROD
-
180123-917 NUT, HEX (LEFT)NUT, HEX (LEFT)
-
190605-511 BALL JOINT, TIE ROD (LEFT)BALL JOINT, TIE ROD (LEFT)
-
208040-426 NUT, LOCKNUT, LOCK
