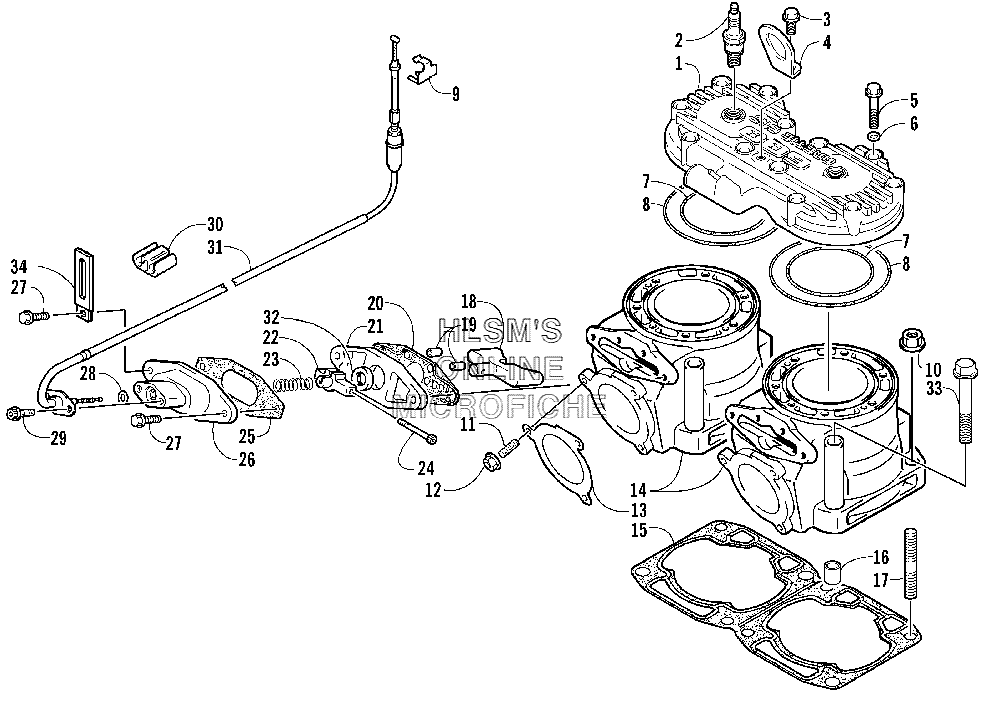

CYLINDER AND HEAD ASSY. для Arctic Cat Sabercat 600 EFI EXT (Green) - 2004 года выпуска
-
№АртикулНазвание
-
13006-642 HEAD, CYLINDERHEAD, CYLINDER
-
20217-709 PLUG, SPARK (BR9EYA)PLUG, SPARK (BR9EYA)
-
33006-544 BOLTBOLT
-
43006-496 HOOK, ENGINEHOOK, ENGINE
-
53006-538 BOLTBOLT
-
63003-227 O-RINGO-RING
-
73003-335 O-RINGO-RING
-
83006-490 O-RINGO-RING
-
93005-747 HOLDER, EXHAUST VALVE CABLEHOLDER, EXHAUST VALVE CABLE
-
103004-491 NUTNUT
-
113004-279 BOLT, STUDBOLT, STUD
-
123004-326 NUTNUT
-
133006-516 GASKET, EXHAUSTGASKET, EXHAUST
-
143006-643 CYLINDERCYLINDER
-
153006-493 GASKET, CYLINDERGASKET, CYLINDER
-
163004-975 PIN, DOWELPIN, DOWEL
-
173005-847 BOLT, STUDBOLT, STUD
-
183006-644 VALVE, EXHAUSTVALVE, EXHAUST
-
193006-321 PIN, EXHAUST VALVE DOWELPIN, EXHAUST VALVE DOWEL
-
203006-329 GASKET, EXHAUST VALVEGASKET, EXHAUST VALVE
-
213006-495 PLATE, EXHAUST VALVEPLATE, EXHAUST VALVE
-
223005-860 STOPPER, EXHAUST VALVESTOPPER, EXHAUST VALVE
-
233006-484 SPRINGSPRING
-
243005-983 PIN, EXHAUST VALVE STOPPERPIN, EXHAUST VALVE STOPPER
-
253006-436 GASKET, EXHAUST VALVE COVERGASKET, EXHAUST VALVE COVER
-
263006-425 COVER, EXHAUST VALVECOVER, EXHAUST VALVE
-
273004-442 BOLTBOLT
-
283005-226 O-RINGO-RING
-
293005-744 BOLTBOLT
-
303005-808 CLAMPCLAMP
-
313006-689 CABLE, EXHAUST VALVECABLE, EXHAUST VALVE
-
323006-322 SEAL, OILSEAL, OIL
-
333005-846 BOLTBOLT
-
343002-964 CLAMP, WIRECLAMP, WIRE
