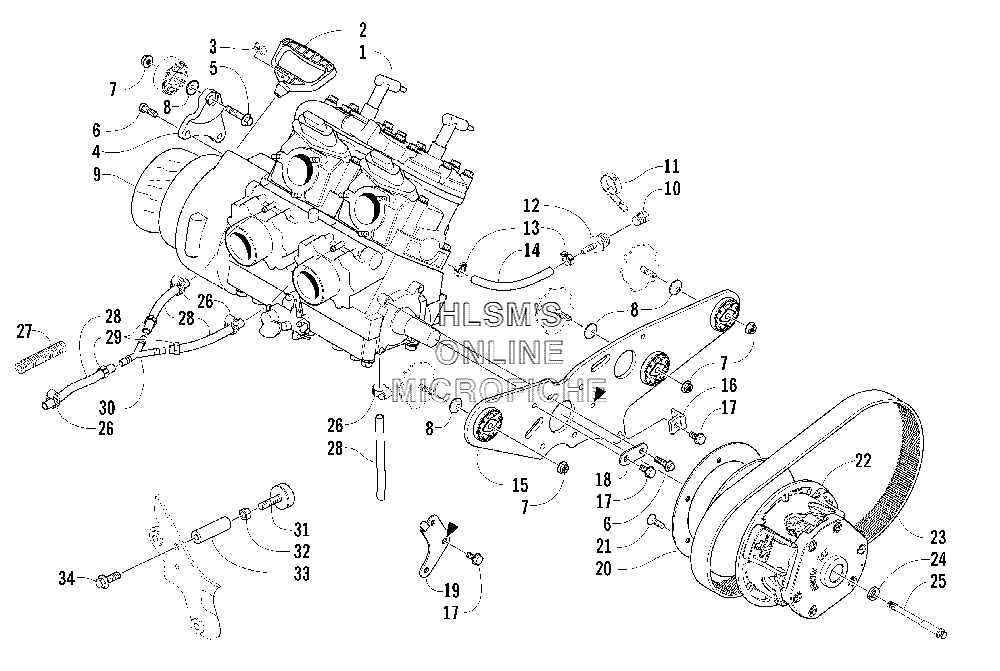

ENGINE AND RELATED PARTS для Arctic Cat Sabercat 600 EFI EXT (Green) - 2004 года выпуска
-
№АртикулНазвание
-
10662-377 ENGINE, AJ60L2 W/O EFI COMPONENTSENGINE, AJ60L2 W/O EFI COMPONENTS
-
20636-363 HANDLE, RECOILHANDLE, RECOIL
-
30606-885 CAP, RECOIL HANDLECAP, RECOIL HANDLE
-
40608-388 BRACKET, ENGINE MOUNTING (RIGHT)BRACKET, ENGINE MOUNTING (RIGHT)
-
58020-136 SCREW, CAPSCREW, CAP
-
68408-820 SCREW, CAPSCREW, CAP
-
78048-426 NUT, LOCKNUT, LOCK
-
80623-987 WASHERWASHER
-
91670-328 FOIL, PROTECTIVEFOIL, PROTECTIVE
-
100670-243 PLUGPLUG
-
110670-289 TAPE, TEFLONTAPE, TEFLON
-
120623-801 ADAPTER, FITTINGADAPTER, FITTING
-
130124-045 CLAMP, HOSECLAMP, HOSE
-
140610-007 HOSE, GASLINE (25 FT)HOSE, GASLINE (25 FT)
-
150708-431 BRACKET, ENGINE MOUNTING (LEFT) (INC. 16 AND ONE NO. 17)BRACKET, ENGINE MOUNTING (LEFT) (INC. 16 AND ONE NO. 17)
-
160608-400 BUMPER, TORQUEBUMPER, TORQUE
-
170623-765 SCREW, SELF, TAPPINGSCREW, SELF, TAPPING
-
180608-407 PLATE, REINFORCEMENTPLATE, REINFORCEMENT
-
190608-397 PLATE, REINFORCEMENTPLATE, REINFORCEMENT
-
220725-388 CLUTCH, DRIVECLUTCH, DRIVE
-
230627-031 BELT, DRIVEBELT, DRIVE
-
240623-210 WASHER, HIGH COLLARWASHER, HIGH COLLAR
-
250623-804 BOLT, CLUTCHBOLT, CLUTCH
-
260623-373 CLAMP, HOSECLAMP, HOSE
-
270619-776 CONDUIT, FLEXIBLE (5 FT)CONDUIT, FLEXIBLE (5 FT)
-
280610-076 HOSE, COOLANT (10 FT)HOSE, COOLANT (10 FT)
-
290610-581 CLAMP, HOSECLAMP, HOSE
-
301670-596 Y, FITTINGY, FITTING
-
310608-396 BUMPER, TORQUE, ENGINEBUMPER, TORQUE, ENGINE
-
328042-486 NUTNUT
-
330608-394 TUBE, TORQUE BUMPERTUBE, TORQUE BUMPER
-
348020-220 SCREW, CAPSCREW, CAP
