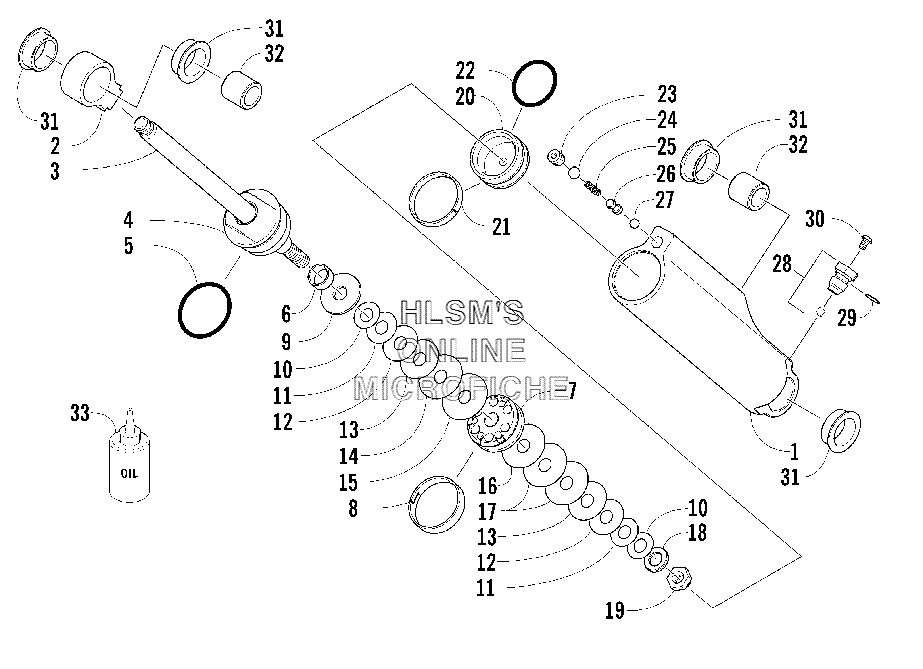

REAR SUSPENSION REAR ARM SHOCK ABSORBER для Arctic Cat Sabercat 600 EFI EXT (Green) - 2004 года выпуска
-
№АртикулНазвание
-
-1704-139 COMPLETE SHOCK ABSORBERCOMPLETE SHOCK ABSORBER
-
12604-327 BODY, SHOCKBODY, SHOCK
-
21604-763 EYELET, SHOCKEYELET, SHOCK
-
32604-364 ROD, SHOCKROD, SHOCK
-
41703-452 CAP, SHOCK (INC. 5)CAP, SHOCK (INC. 5)
-
51604-271 O-RINGO-RING
-
62604-168 SPACER, SHAFTSPACER, SHAFT
-
72604-619 PISTON, 0.039 IN., ORIFICE (INC. 8)PISTON, 0.039 IN., ORIFICE (INC. 8)
-
81604-643 STRAP, PISTON, TEFLONSTRAP, PISTON, TEFLON
-
91604-272 WASHER, TOP OUTWASHER, TOP OUT
-
102603-055 VALVE, 0.800 X 0.010 IN.VALVE, 0.800 X 0.010 IN.
-
112603-065 VALVE, 0.900 X 0.010 IN.VALVE, 0.900 X 0.010 IN.
-
122603-075 VALVE, 1.000 X 0.010 IN.VALVE, 1.000 X 0.010 IN.
-
132603-095 VALVE, 1.100 X 0.010 IN.VALVE, 1.100 X 0.010 IN.
-
142603-125 VALVE, 1.250 X 0.010 IN.VALVE, 1.250 X 0.010 IN.
-
152603-135 VALVE, 1.300 X 0.010 IN.VALVE, 1.300 X 0.010 IN.
-
162603-127 VALVE, 1.250 X 0.015 IN.VALVE, 1.250 X 0.015 IN.
-
172603-126 VALVE, 1.250 X 0.012 IN.VALVE, 1.250 X 0.012 IN.
-
181604-273 WASHER, BACKUPWASHER, BACKUP
-
190623-696 NUT, LOCKNUT, LOCK
-
200704-791 PISTON, FLOATING (INC. 21, 22)PISTON, FLOATING (INC. 21, 22)
-
212604-153 STRAP, PISTON, TEFLONSTRAP, PISTON, TEFLON
-
222604-152 O-RINGO-RING
-
238080-305 SCREW, SETSCREW, SET
-
242604-432 BALLBALL
-
252604-433 SPRINGSPRING
-
262604-429 ROD, SPRINGROD, SPRING
-
272604-431 BALLBALL
-
280704-383 VALVE, PRESSURE (INC. 29)VALVE, PRESSURE (INC. 29)
-
291604-284 O-RINGO-RING
-
300624-433 SCREW, VALVESCREW, VALVE
-
311604-262 BUSHING, SHOCKBUSHING, SHOCK
-
321604-397 SLEEVE, EYELETSLEEVE, EYELET
-
332639-151 OIL, GAS SHOCK, 6 QT CASEOIL, GAS SHOCK, 6 QT CASE
