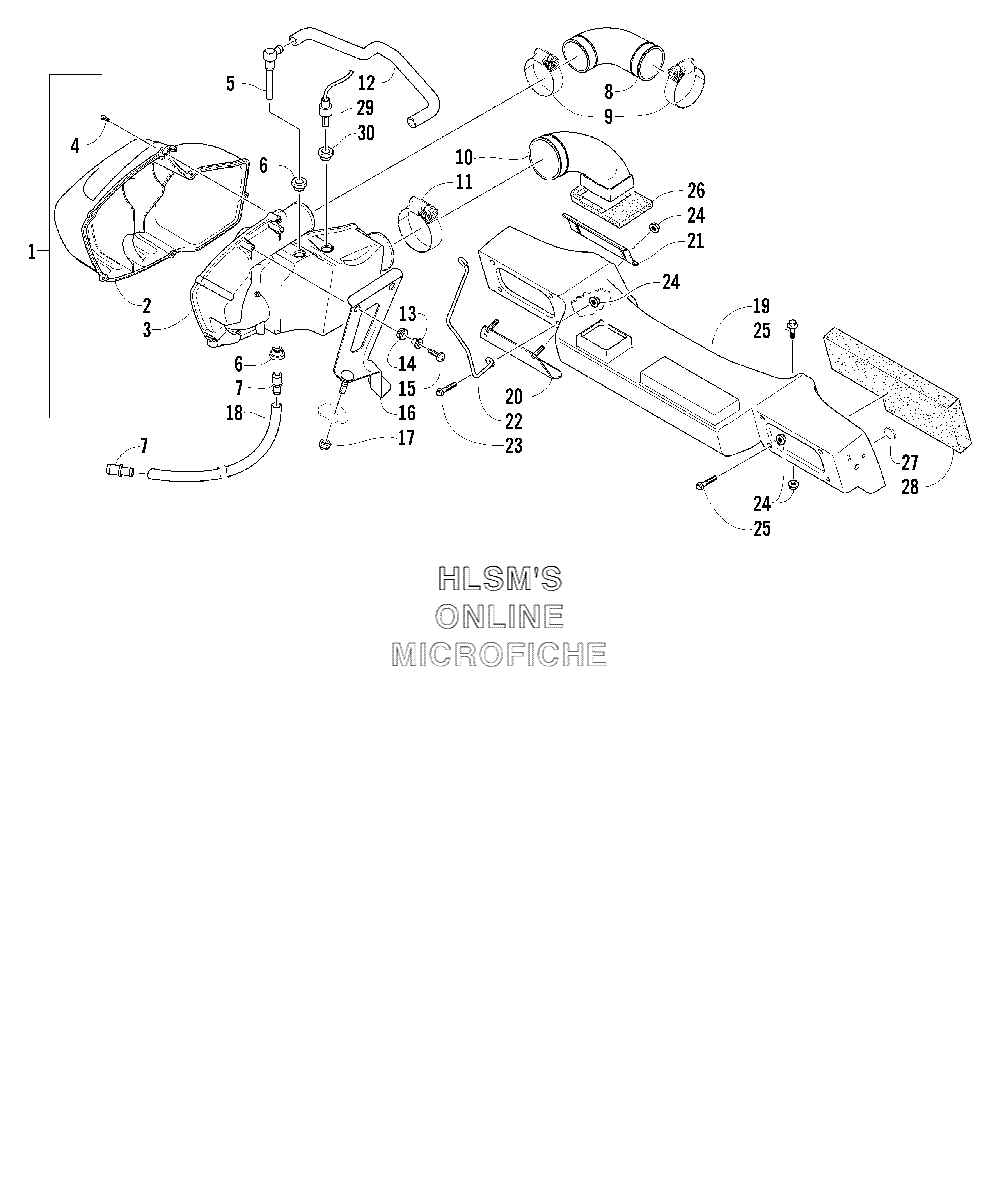

AIR SILENCER ASSEMBLY для Arctic Cat T660 Touring Taupe - 2004 года выпуска
-
№АртикулНазвание
-
10770-605 SILENCER, AIR, ASSEMBLY (INC. 2, 6 AND ONE NO. 7)SILENCER, AIR, ASSEMBLY (INC. 2, 6 AND ONE NO. 7)
-
21670-434 COVER, OUTERCOVER, OUTER
-
30770-621 COVER, INNERCOVER, INNER
-
48019-397 SCREW, CAPSCREW, CAP
-
51670-515 FITTING, ELBOWFITTING, ELBOW
-
61670-507 GROMMETGROMMET
-
71670-516 FITTING, STRAIGHTFITTING, STRAIGHT
-
80610-491 TUBE, OUTLETTUBE, OUTLET
-
90214-027 CLAMP, HOSECLAMP, HOSE
-
100610-490 TUBE, INLETTUBE, INLET
-
110214-032 CLAMP, TUBECLAMP, TUBE
-
120610-489 HOSE, BREATHERHOSE, BREATHER
-
130607-737 WASHERWASHER
-
141670-545 ISOLATOR, RUBBERISOLATOR, RUBBER
-
151623-135 SCREW, SELF, TAPPINGSCREW, SELF, TAPPING
-
160707-737 BRACKET, MOUNTING, AIR SILENCERBRACKET, MOUNTING, AIR SILENCER
-
170623-661 NUT, LOCKNUT, LOCK
-
180610-529 HOSE, DRAINHOSE, DRAIN
-
191670-432 PLENUM, AIR SILENCERPLENUM, AIR SILENCER
-
201706-899 PLATE, ADJUSTABLEPLATE, ADJUSTABLE
-
212606-095 PLATE, BACKINGPLATE, BACKING
-
220707-705 BRACKET, GUARD, HARNESS/ROPEBRACKET, GUARD, HARNESS/ROPE
-
238020-040 SCREW, CAPSCREW, CAP
-
248048-366 NUT, LOCKNUT, LOCK
-
258020-039 SCREW, CAPSCREW, CAP
-
260617-410 SEAL, AIR SILENCER/PLENUMSEAL, AIR SILENCER/PLENUM
-
270623-078 DISC, VELCRODISC, VELCRO
-
280617-270 FOAM, PLENUMFOAM, PLENUM
-
293006-656 SENSOR, AIR TEMPERATURESENSOR, AIR TEMPERATURE
-
303006-657 GROMMETGROMMET
