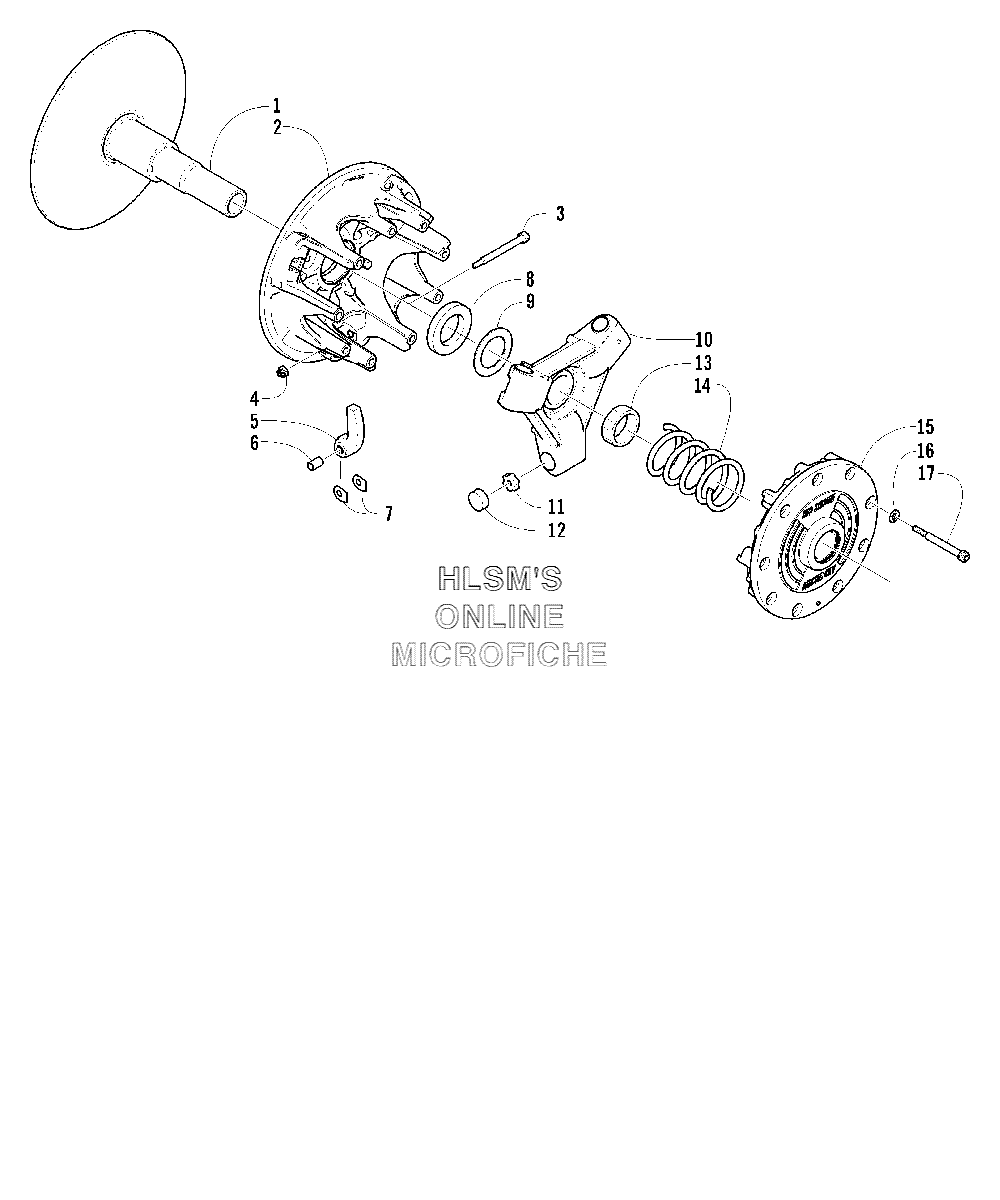

DRIVE CLUTCH для Arctic Cat T660 Touring Taupe - 2004 года выпуска
-
№АртикулНазвание
-
10646-365 SHEAVE, STATIONARYSHEAVE, STATIONARY
-
20746-080 SHEAVE, MOVABLESHEAVE, MOVABLE
-
30646-295 PIN, CAM ARMPIN, CAM ARM
-
40623-392 NUT, LOCKNUT, LOCK
-
50746-646 ARM, CAM (INC. 6)ARM, CAM (INC. 6)
-
50746-645 ARM, CAM (INC. 6) (5, 9, 000 FT ALT.)ARM, CAM (INC. 6) (5, 9, 000 FT ALT.)
-
50746-647 ARM, CAM (INC. 6) (OVER 9, 000 FT ALT.)ARM, CAM (INC. 6) (OVER 9, 000 FT ALT.)
-
60646-160 BEARING, CAM ARMBEARING, CAM ARM
-
70646-101 WASHER, CAM ARMWASHER, CAM ARM
-
80646-196 SPACERSPACER
-
90646-266 WASHER, SPACERWASHER, SPACER
-
100746-686 SPIDER ASSEMBLYSPIDER ASSEMBLY
-
110646-297 BUTTON, TORQUEBUTTON, TORQUE
-
120646-298 PLUG, TORQUE BUTTONPLUG, TORQUE BUTTON
-
130646-140 NUTNUT
-
140646-367 SPRING, DRIVE CLUTCHSPRING, DRIVE CLUTCH
-
150746-086 COVERCOVER
-
168051-212 WASHER, LOCKWASHER, LOCK
-
170623-596 SCREW, MACHINESCREW, MACHINE
-
-0725-407 DRIVE CLUTCH ASSEMBLYDRIVE CLUTCH ASSEMBLY
-
-1639-030 CAM ARM KIT (INC. 3, 4 AND 6, 7)CAM ARM KIT (INC. 3, 4 AND 6, 7)
-
-0746-133 UNCALIBRATED DRIVE CLUTCHUNCALIBRATED DRIVE CLUTCH
Все узлы модели:
- A-ARM ASSEMBLY
- AIR SILENCER ASSEMBLY
- ALTERNATOR ASSEMBLY
- BACKREST AND TAILLIGHT ASSEMBLY
- BATTERY ASSEMBLY
- BELLY PAN AND FRONT BUMPER ASSEMBLY
- BELT GUARD ASSEMBLY
- CAM CHAIN ASSEMBLY
- CAMSHAFT/VALVE ASSEMBLY
- CONSOLE AND SWITCH ASSEMBLY
- COOLING ASSEMBLY
- CRANKSHAFT ASSEMBLY
- CYLINDER BLOCK/BASE ASSEMBLY
- CYLINDER HEAD ASSEMBLY
- DELIVERY PIPE ASSEMBLY
- • DRIVE CLUTCH
- DRIVE TRAIN SHAFTS AND BRAKE ASSEMBLIES
- DRIVE/REVERSE DROPCASE ASSEMBLY
- DRIVEN CLUTCH
- DROPCASE AND CHAIN TENSION ASSEMBLY
- ELECTRICAL
- ENGINE AND RELATED PARTS
- EXHAUST ASSEMBLY
- EXHAUST MANIFOLD ASSEMBLY
- FRONT FRAME AND FOOTREST ASSEMBLY
- FUEL PUMP ASSEMBLY
- GAS TANK AND SEAT ASSEMBLY
- GASKET SET
- HANDLEBAR AND CONTROLS
- HEADLIGHT- INSTRUMENTS- AND WIRING ASSEMBLIES
- HOOD AND WINDSHIELD ASSEMBLY
- HYDRAULIC BRAKE CONTROL ASSEMBLY
- IDLER WHEEL ASSEMBLY
- INTAKE MANIFOLD ASSEMBLY
- OIL PAN ASSEMBLY
- REAR SUSPENSION FRONT ARM ASSEMBLY
- REAR SUSPENSION REAR ARM ASSEMBLY
- RELATED ITEMS
- REVERSE SHIFT LEVER ASSEMBLY
- SHOCK ABSORBER AND SWAY BAR ASSEMBLY
- SKI AND SPINDLE ASSEMBLY
- SLIDE RAIL AND TRACK ASSEMBLY
- STARTER MOTOR ASSEMBLY
- STEERING POST ASSEMBLY
- THROTTLE BODY ASSEMBLY
