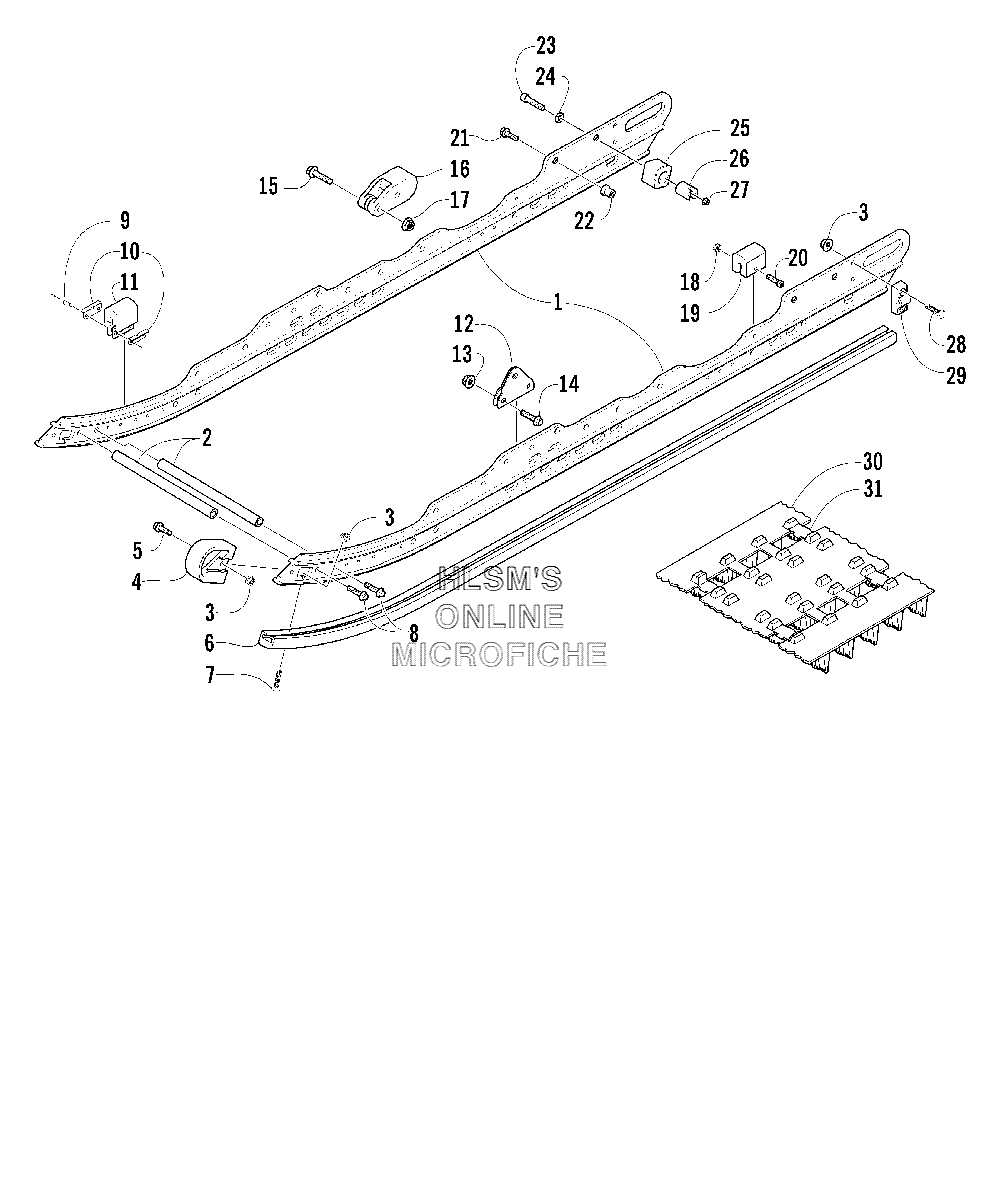

SLIDE RAIL AND TRACK ASSEMBLY для Arctic Cat T660 Touring Taupe - 2004 года выпуска
-
№АртикулНазвание
-
12604-563 RAIL, FORMEDRAIL, FORMED
-
20604-426 SUPPORT, RAILSUPPORT, RAIL
-
38047-366 NUT, LOCKNUT, LOCK
-
41604-137 END CAP, SLIDE RAILEND CAP, SLIDE RAIL
-
58020-042 SCREW, CAPSCREW, CAP
-
62604-257 WEARSTRIP, SLIDE RAILWEARSTRIP, SLIDE RAIL
-
70123-859 SCREW, MACHINESCREW, MACHINE
-
88020-134 SCREW, CAPSCREW, CAP
-
98060-633 RIVET, SOLIDRIVET, SOLID
-
100604-967 BRACKET, RETAININGBRACKET, RETAINING
-
110604-918 PAD, SHOCKPAD, SHOCK
-
120704-395 BRACKET, MOUNTING ARM (FRONT)BRACKET, MOUNTING ARM (FRONT)
-
138048-426 NUT, LOCKNUT, LOCK
-
148020-131 SCREW, CAPSCREW, CAP
-
158020-227 SCREW, CAPSCREW, CAP
-
161604-413 BLOCK, SPRING TENSIONBLOCK, SPRING TENSION
-
178048-486 NUT, LOCKNUT, LOCK
-
188041-246 NUT, LOCKNUT, LOCK
-
191604-429 PAD, SHOCKPAD, SHOCK
-
208017-405 SCREW, MACHINESCREW, MACHINE
-
218020-222 SCREW, CAPSCREW, CAP
-
222604-562 STOP ARM (REAR)STOP ARM (REAR)
-
238005-676 SCREW, CAPSCREW, CAP
-
240623-044 WASHERWASHER
-
252604-545 BLOCK ARM COUPLER (REAR)BLOCK ARM COUPLER (REAR)
-
262604-046 BUSHING ARM COUPLER BLOCK (REAR)BUSHING ARM COUPLER BLOCK (REAR)
-
278041-486 NUT, LOCKNUT, LOCK
-
288002-042 SCREW, CAPSCREW, CAP
-
290704-352 ADJUSTER, TRACKADJUSTER, TRACK
-
301602-518 TRACK ASSEMBLY (INC. 31)TRACK ASSEMBLY (INC. 31)
-
310602-488 CLIP, GUIDECLIP, GUIDE
-
-7997-516 COMPLETE SKID FRAME ASSEMBLYCOMPLETE SKID FRAME ASSEMBLY
