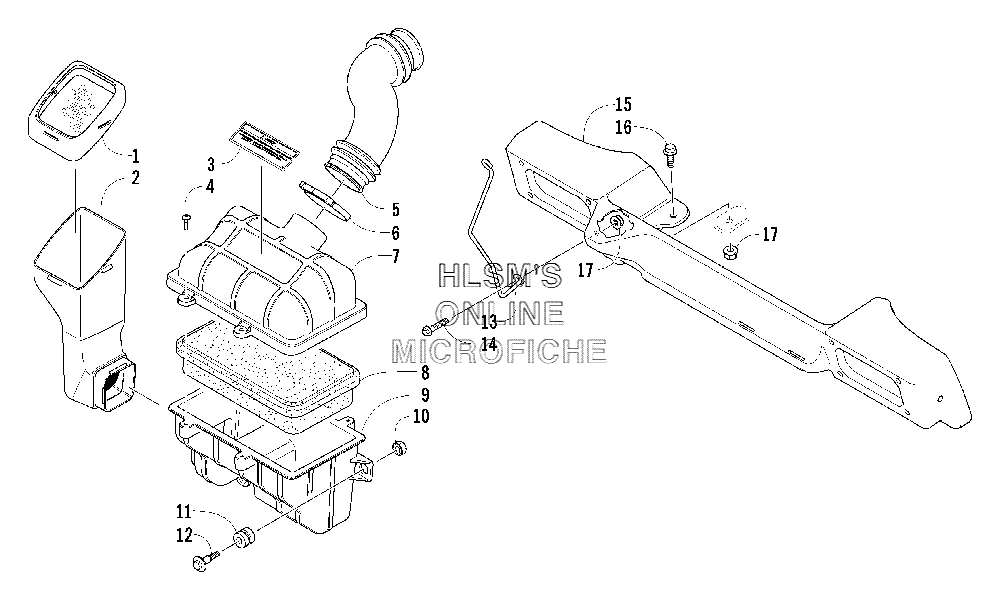

AIR SILENCER ASSY. для Arctic Cat T660 Turbo Touring Taupe - 2004 года выпуска
-
№АртикулНазвание
-
11670-540 COVER, INLET TUBECOVER, INLET TUBE
-
21670-553 TUBE, INLETTUBE, INLET
-
35611-863 DECAL, AIR SILENCERDECAL, AIR SILENCER
-
40623-309 SCREW, SELF, TAPPINGSCREW, SELF, TAPPING
-
51670-541 TUBE, OUTLETTUBE, OUTLET
-
61623-133 CLAMP, TUBECLAMP, TUBE
-
71670-543 COVER, AIR SILENCERCOVER, AIR SILENCER
-
83006-870 FILTER, AIRFILTER, AIR
-
91670-544 SILENCER, AIRSILENCER, AIR
-
100623-877 NUT W/WASHERNUT W/WASHER
-
111612-701 BUSHINGBUSHING
-
120623-856 SCREW, SHOULDERSCREW, SHOULDER
-
130707-705 BRACKET, GUARD, HARNESS/ROPEBRACKET, GUARD, HARNESS/ROPE
-
148020-040 SCREW, CAPSCREW, CAP
-
151670-577 PLENUM, AIR SILENCERPLENUM, AIR SILENCER
-
168020-039 SCREW, CAPSCREW, CAP
-
178048-366 NUT, LOCKNUT, LOCK
