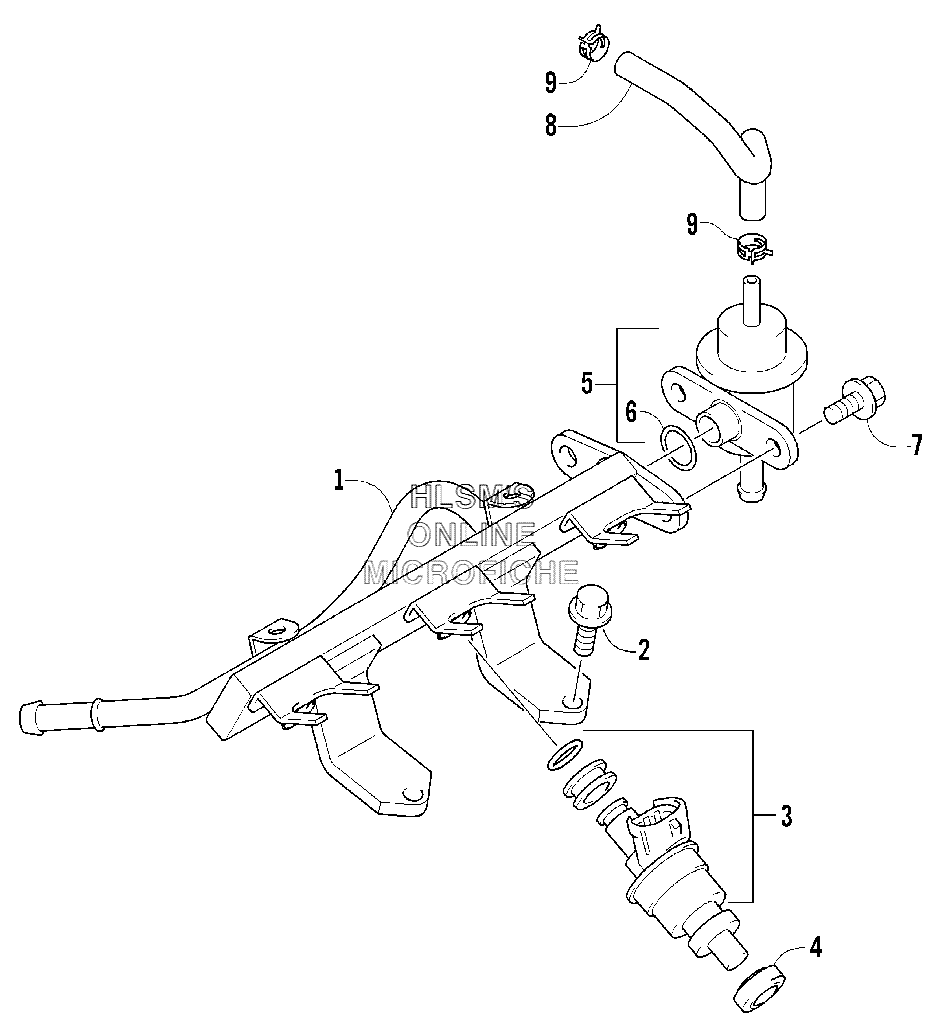

DELIVERY PIPE ASSY. для Arctic Cat T660 Turbo Touring Taupe - 2004 года выпуска
-
№АртикулНазвание
-
13006-835 PIPE, DELIVERYPIPE, DELIVERY
-
23004-377 BOLTBOLT
-
33006-834 INJECTOR, FUEL, ASSY.INJECTOR, FUEL, ASSY.
-
43006-126 CUSHIONCUSHION
-
53006-880 REGULATOR (INC. 6)REGULATOR (INC. 6)
-
63006-881 O-RINGO-RING
-
73004-338 BOLTBOLT
-
80693-929 HOSE, VACUUMHOSE, VACUUM
-
93008-037 CLAMP, HOSECLAMP, HOSE
