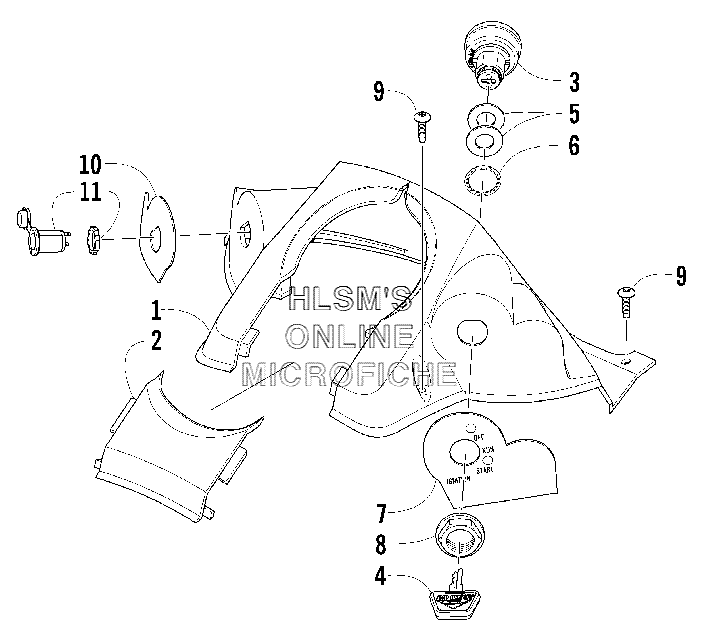

CONSOLE AND SWITCH ASSY. для Arctic Cat T660 Turbo Touring Taupe - 2004 года выпуска
-
№АртикулНазвание
-
12606-283 CONSOLECONSOLE
-
21606-105 DOOR, CONSOLEDOOR, CONSOLE
-
30609-082 SWITCH, IGNITIONSWITCH, IGNITION
-
40609-412 KEYKEY
-
50623-292 WASHERWASHER
-
60123-899 WASHER, LOCK, INTERNAL TOOTHWASHER, LOCK, INTERNAL TOOTH
-
72611-744 DECAL, CONSOLE (RIGHT)DECAL, CONSOLE (RIGHT)
-
80609-113 NUT, RETAININGNUT, RETAINING
-
91623-175 SCREW, SELF, TAPPINGSCREW, SELF, TAPPING
-
104611-805 DECAL, CONSOLE (LEFT)DECAL, CONSOLE (LEFT)
-
110641-158 OUTLET, ACCESSORYOUTLET, ACCESSORY
