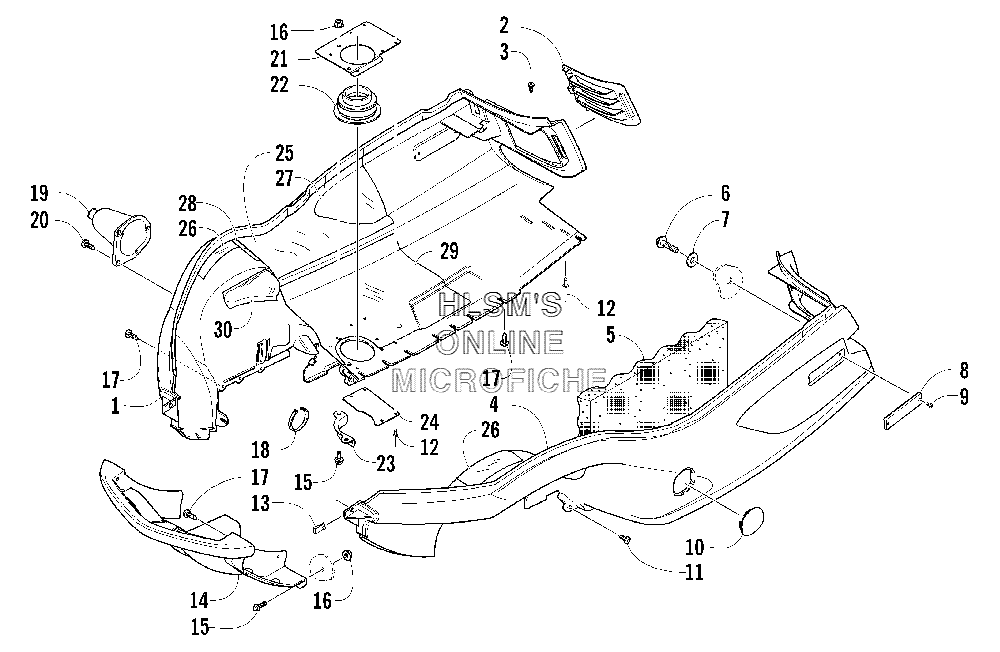

BELLY PAN AND FRONT BUMPER ASSY. для Arctic Cat T660 Turbo Trail (Black International) - 2004 года выпуска
-
№АртикулНазвание
-
12706-479 BELLY PAN (RIGHT)BELLY PAN (RIGHT)
-
12706-570 BELLY PAN (RIGHT)BELLY PAN (RIGHT)
-
21606-044 LOUVER, AIR, INTAKE (RIGHT)LOUVER, AIR, INTAKE (RIGHT)
-
21606-045 LOUVER, AIR, INTAKE (LEFT)LOUVER, AIR, INTAKE (LEFT)
-
30623-378 SCREW, SELF, TAPPINGSCREW, SELF, TAPPING
-
42706-504 BELLY PAN (LEFT)BELLY PAN (LEFT)
-
42706-449 BELLY PAN (LEFT)BELLY PAN (LEFT)
-
50617-315 FOAM, BELLY PAN (LEFT)FOAM, BELLY PAN (LEFT)
-
60623-647 SCREW, SELF, TAPPINGSCREW, SELF, TAPPING
-
70623-184 WASHERWASHER
-
80606-526 REFLECTOR (FRONT/AMBER)REFLECTOR (FRONT/AMBER)
-
90623-269 CLIP, RETAININGCLIP, RETAINING
-
101606-767 PANEL, CLUTCH ACCESSPANEL, CLUTCH ACCESS
-
110623-784 SCREW, SELF, TAPPINGSCREW, SELF, TAPPING
-
128061-508 RIVETRIVET
-
130623-427 NUT, UNUT, U
-
141606-721 BUMPER (FRONT)BUMPER (FRONT)
-
158020-040 SCREW, CAPSCREW, CAP
-
168048-366 NUT, LOCKNUT, LOCK
-
171623-129 SCREW, SELF, TAPPINGSCREW, SELF, TAPPING
-
180123-788 CABLE TIE, 7.5 IN.CABLE TIE, 7.5 IN.
-
190605-332 BOOT, STEERING (RIGHT)BOOT, STEERING (RIGHT)
-
190605-333 BOOT, STEERING (LEFT)BOOT, STEERING (LEFT)
-
200623-564 SCREW, SELF, TAPPINGSCREW, SELF, TAPPING
-
211712-047 RING, EXHAUST OUTLETRING, EXHAUST OUTLET
-
221612-027 BOOT, EXHAUSTBOOT, EXHAUST
-
230712-879 DEFLECTOR, EXHAUSTDEFLECTOR, EXHAUST
-
241712-049 DEFLECTOR, EXHAUSTDEFLECTOR, EXHAUST
-
252606-376 FOIL, PROTECTIVE (UPPER/MIDDLE)FOIL, PROTECTIVE (UPPER/MIDDLE)
-
260619-206 TAPE, FOILTAPE, FOIL
-
272606-375 FOIL, PROTECTIVE (UPPER/REAR)FOIL, PROTECTIVE (UPPER/REAR)
-
282606-387 FOIL, PROTECTIVE (UPPER/FRONT)FOIL, PROTECTIVE (UPPER/FRONT)
-
293606-450 FOIL, PROTECTIVE (LOWER)FOIL, PROTECTIVE (LOWER)
-
303606-451 FOIL, PROTECTIVE (LOWER/FRONT)FOIL, PROTECTIVE (LOWER/FRONT)
