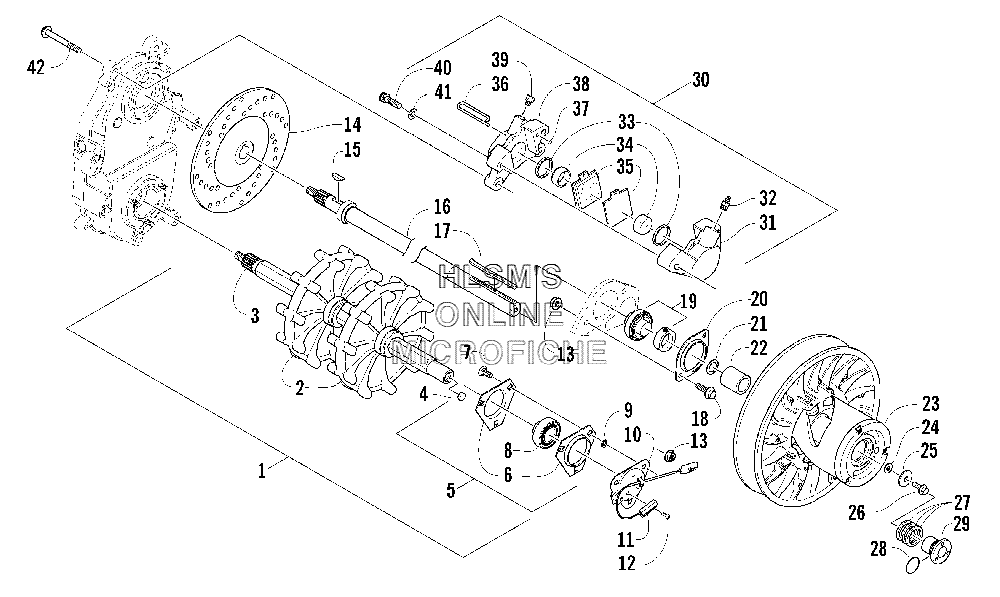

DRIVE TRAIN SHAFTS AND BRAKE ASSY. для Arctic Cat T660 Turbo Trail (Black International) - 2004 года выпуска
-
№АртикулНазвание
-
10728-116 TRACK DRIVE ASSY. (INC. 2, 9)TRACK DRIVE ASSY. (INC. 2, 9)
-
21602-507 SPROCKET, DRIVESPROCKET, DRIVE
-
31602-585 DRIVESHAFTDRIVESHAFT
-
40630-167 MAGNET, DISCMAGNET, DISC
-
50702-567 PLATE, FLANGE, BEARING ASSY. (INC. 6, 9)PLATE, FLANGE, BEARING ASSY. (INC. 6, 9)
-
60602-198 PLATE, FLANGEPLATE, FLANGE
-
78011-130 BOLT, CARRIAGEBOLT, CARRIAGE
-
81602-374 BEARING, 1 IN.BEARING, 1 IN.
-
90623-810 RING, SOLDERRING, SOLDER
-
103606-244 BRACKET, SENSORBRACKET, SENSOR
-
110630-178 SENSOR, SPEEDOMETERSENSOR, SPEEDOMETER
-
120623-462 SCREW, SELF, TAPPINGSCREW, SELF, TAPPING
-
138048-426 NUT, LOCKNUT, LOCK
-
141602-205 DISC, BRAKEDISC, BRAKE
-
150602-598 KEYKEY
-
160702-562 SHAFT, DRIVENSHAFT, DRIVEN
-
170602-170 KEYKEY
-
188020-132 SCREW, CAPSCREW, CAP
-
191602-099 BEARING, 1 IN. W/LOCK COLLAR, RE, LUBRICATIVEBEARING, 1 IN. W/LOCK COLLAR, RE, LUBRICATIVE
-
200602-892 PLATE, FLANGEPLATE, FLANGE
-
210623-118 WASHERWASHER
-
210623-119 WASHERWASHER
-
222604-713 SPACER, CLUTCHSPACER, CLUTCH
-
230726-166 CLUTCH, DRIVENCLUTCH, DRIVEN
-
240123-053 WASHERWASHER
-
250123-260 WASHERWASHER
-
268020-130 SCREW, CAPSCREW, CAP
-
270648-714 WASHERWASHER
-
270648-715 WASHERWASHER
-
270648-716 WASHERWASHER
-
280648-441 O-RINGO-RING
-
290648-440 ADJUSTER, SHEAVEADJUSTER, SHEAVE
-
300602-829 CALIPER, BRAKE ASSY. (INC. 31, 41)CALIPER, BRAKE ASSY. (INC. 31, 41)
-
320602-707 SCREW, BLEED, ASSY.SCREW, BLEED, ASSY.
-
330602-583 O-RINGO-RING
-
340602-708 PISTONPISTON
-
350702-229 PAD, BRAKE, SET (INC. 36)PAD, BRAKE, SET (INC. 36)
-
360602-706 PIN, RETAININGPIN, RETAINING
-
370602-729 O-RING, HOUSINGO-RING, HOUSING
-
390602-590 FITTING, ADAPTERFITTING, ADAPTER
-
408005-677 SCREW, CAPSCREW, CAP
-
418050-272 WASHERWASHER
-
428020-315 SCREW, CAPSCREW, CAP
