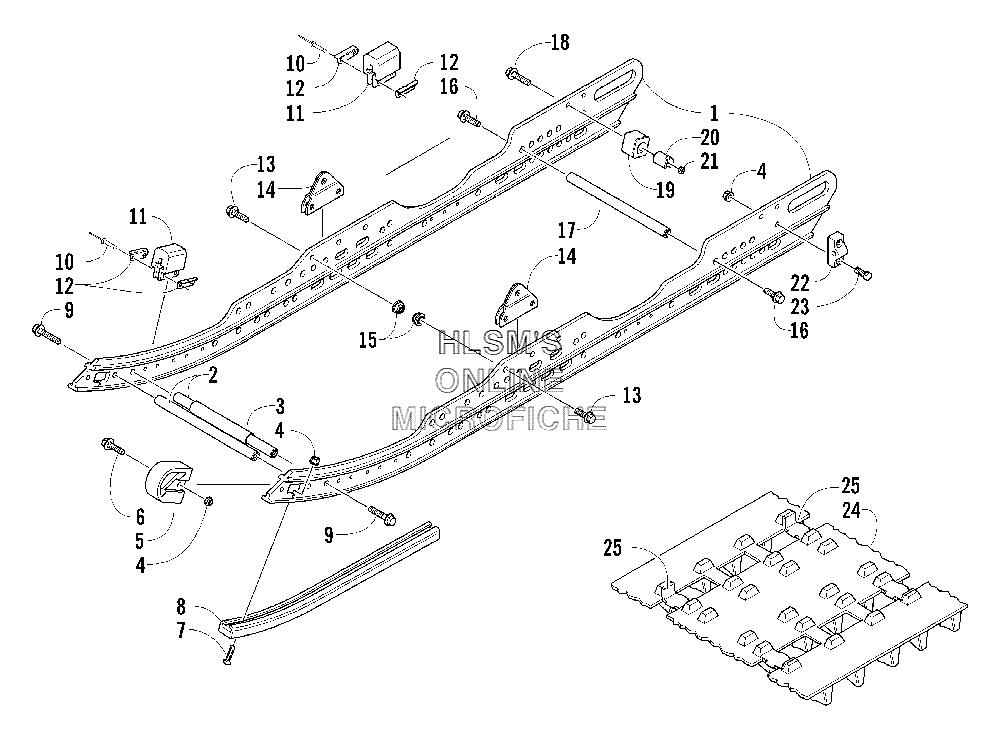

SLIDE RAIL AND TRACK ASSY. для Arctic Cat T660 Turbo Trail (Black International) - 2004 года выпуска
-
№АртикулНазвание
-
-7997-928 COMPLETE SKID FRAME ASSY.COMPLETE SKID FRAME ASSY.
-
12604-646 RAIL, FORMEDRAIL, FORMED
-
20604-426 SUPPORT, RAILSUPPORT, RAIL
-
32604-623 SPACERSPACER
-
48047-366 NUT, LOCKNUT, LOCK
-
52604-507 END CAP, SLIDE RAILEND CAP, SLIDE RAIL
-
68020-042 SCREW, CAPSCREW, CAP
-
70123-859 SCREW, MACHINESCREW, MACHINE
-
80604-640 WEARSTRIP, SLIDE RAILWEARSTRIP, SLIDE RAIL
-
98020-134 SCREW, CAPSCREW, CAP
-
108060-633 RIVETRIVET
-
110604-918 PAD, SHOCKPAD, SHOCK
-
120604-967 BRACKET, RETAININGBRACKET, RETAINING
-
138020-131 SCREW, CAPSCREW, CAP
-
140704-395 BRACKET, MOUNTING ARM (FRONT)BRACKET, MOUNTING ARM (FRONT)
-
158048-426 NUT, LOCKNUT, LOCK
-
168020-223 SCREW, CAPSCREW, CAP
-
170604-930 AXLE, ALUMINUMAXLE, ALUMINUM
-
188020-226 SCREW, CAPSCREW, CAP
-
192604-545 BLOCK COUPLER ARM (REAR)BLOCK COUPLER ARM (REAR)
-
202604-046 BUSHING, COUPLER BLOCKBUSHING, COUPLER BLOCK
-
218041-486 NUT, LOCKNUT, LOCK
-
220704-352 ADJUSTER, TRACKADJUSTER, TRACK
-
238002-042 SCREW, CAPSCREW, CAP
-
241602-504 TRACK ASSY. (INC. 25)TRACK ASSY. (INC. 25)
-
250602-488 CLIP, WEAR W/GUIDECLIP, WEAR W/GUIDE
