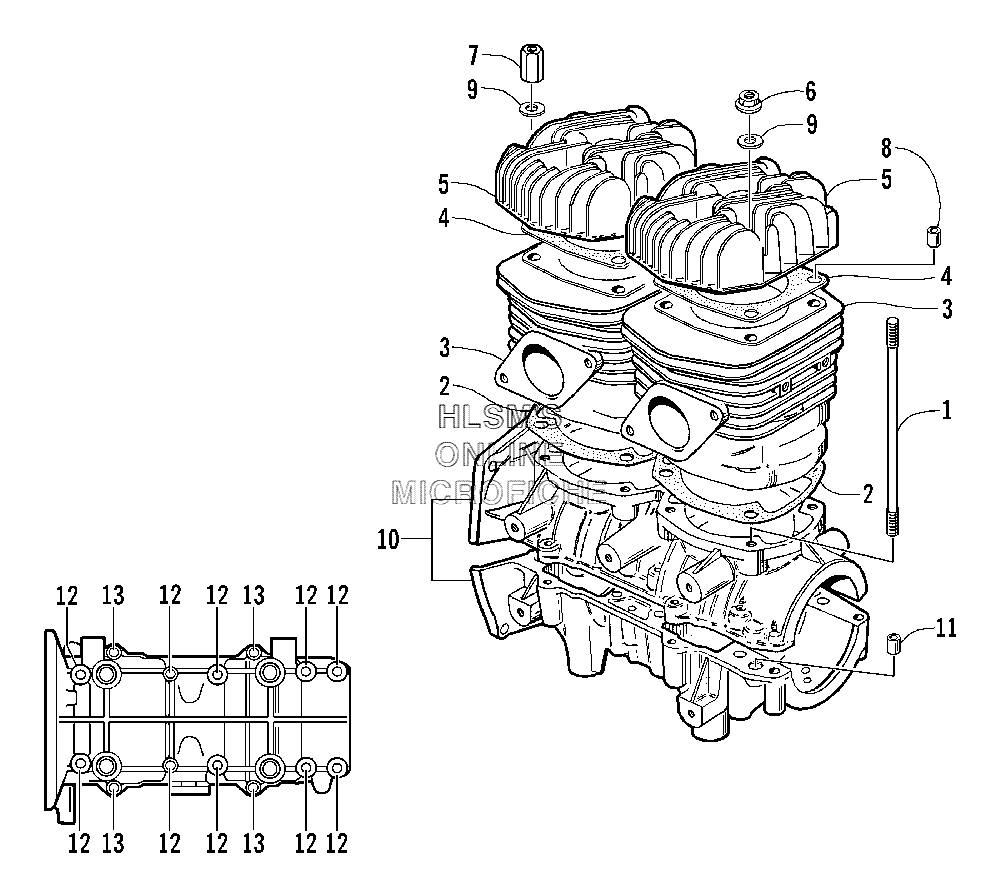

CRANKCASE AND CYLINDER для Arctic Cat Z 440 LX (Red) - 2004 года выпуска
-
№АртикулНазвание
-
13004-996 BOLT, STUDBOLT, STUD
-
23005-002 GASKET, CYLINDERGASKET, CYLINDER
-
33005-001 CYLINDER ASSY.CYLINDER ASSY.
-
43004-999 GASKET, HEADGASKET, HEAD
-
53004-998 HEAD, CYLINDERHEAD, CYLINDER
-
63004-491 NUTNUT
-
73006-411 NUTNUT
-
83004-975 PIN, DOWELPIN, DOWEL
-
93004-278 WASHERWASHER
-
103005-912 CRANKCASE ASSY. (INC. 11, 13)CRANKCASE ASSY. (INC. 11, 13)
-
113002-012 PIN, DOWELPIN, DOWEL
-
123004-881 SCREW, CAPSCREW, CAP
-
133004-369 SCREW, CAPSCREW, CAP
