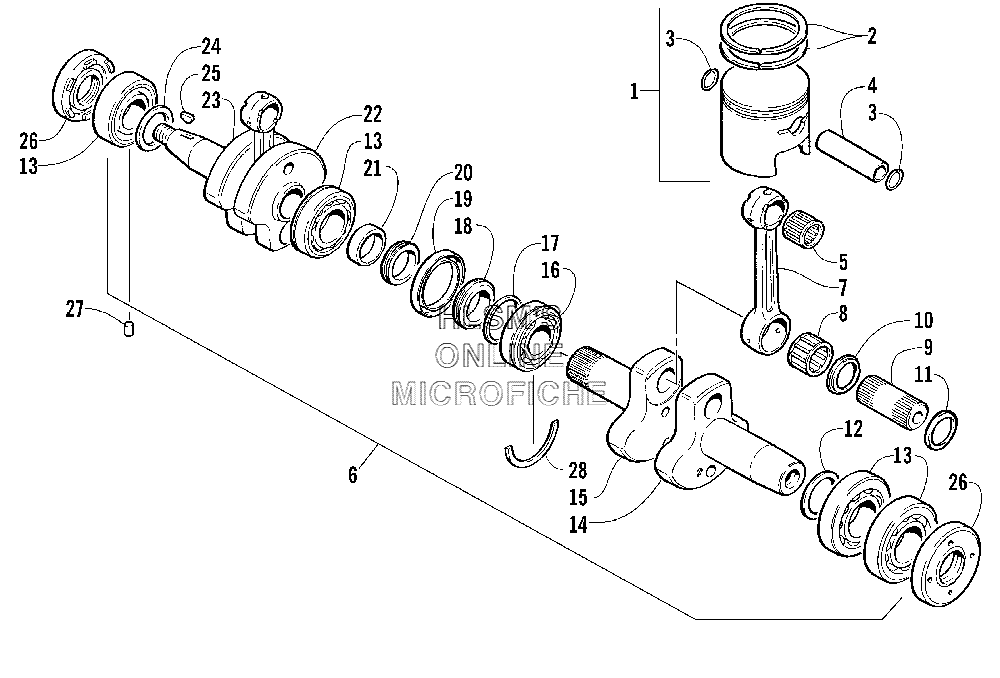

PISTON AND CRANKSHAFT для Arctic Cat Z 440 LX (Red) - 2004 года выпуска
-
№АртикулНазвание
-
13006-412 PISTON ASSY. (INC. 2, 3)PISTON ASSY. (INC. 2, 3)
-
23006-413 RING SET, PISTONRING SET, PISTON
-
33002-041 CIRCLIP, PISTON PINCIRCLIP, PISTON PIN
-
43003-298 PIN, PISTONPIN, PISTON
-
53002-805 BEARING, PISTON PINBEARING, PISTON PIN
-
63005-921 CRANKSHAFT ASSY. (INC. 7, 24)CRANKSHAFT ASSY. (INC. 7, 24)
-
73005-005 ROD, CONNECTINGROD, CONNECTING
-
83003-744 BEARING, CRANK PINBEARING, CRANK PIN
-
93002-173 PIN, CRANKPIN, CRANK
-
103005-458 WASHER, CRANK PIN BEARINGWASHER, CRANK PIN BEARING
-
113005-450 SHIMSHIM
-
123002-025 WASHER (LEFT)WASHER (LEFT)
-
133002-624 BEARING, CRANKSHAFTBEARING, CRANKSHAFT
-
143005-345 CRANKSHAFT (LEFT)CRANKSHAFT (LEFT)
-
153002-841 CRANKSHAFT (CENTER)CRANKSHAFT (CENTER)
-
163005-451 BEARINGBEARING
-
173003-112 RING, SEALRING, SEAL
-
183003-171 RACE, CRANKSHAFT SEALRACE, CRANKSHAFT SEAL
-
193003-248 RETAINERRETAINER
-
203005-373 GEAR, OIL PUMP DRIVEGEAR, OIL PUMP DRIVE
-
213002-827 SPACERSPACER
-
223005-915 WHEEL, CRANKSHAFTWHEEL, CRANKSHAFT
-
233005-344 CRANKSHAFT (RIGHT)CRANKSHAFT (RIGHT)
-
243008-501 WASHERWASHER
-
253004-540 KEYKEY
-
263002-717 SEAL, OILSEAL, OIL
-
273003-658 PIN, ALIGNMENTPIN, ALIGNMENT
-
283003-736 C, RING, CRANKSHAFTC, RING, CRANKSHAFT
