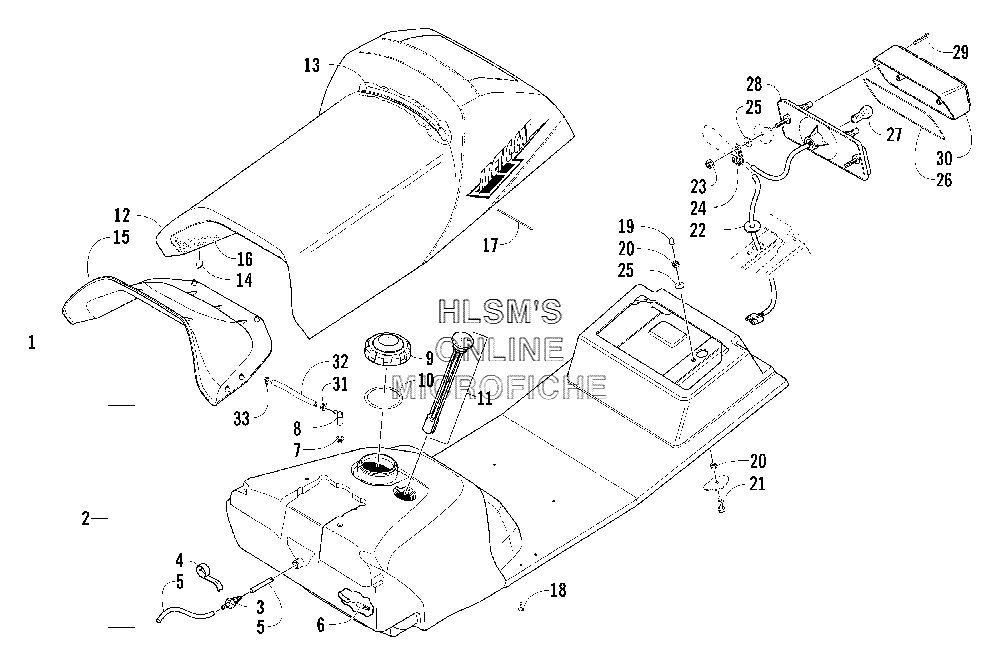

GAS TANK- SEAT- AND TAILLIGHT ASSY. для Arctic Cat Z 440 LX (Red) - 2004 года выпуска
-
№АртикулНазвание
-
11718-537 SEAT ASSY., COMPLETE (INC. 2, 18)SEAT ASSY., COMPLETE (INC. 2, 18)
-
20770-653 TANK, GAS/SEAT, BASE (BLACK) (INC. 3, 11)TANK, GAS/SEAT, BASE (BLACK) (INC. 3, 11)
-
30670-042 OUTLET, TANKOUTLET, TANK
-
40670-289 TAPE, TEFLONTAPE, TEFLON
-
56101-001 HOSE, GASLINE (100 FT)HOSE, GASLINE (100 FT)
-
56101-009 HOSE, GASLINE (50 FT)HOSE, GASLINE (50 FT)
-
60510-358 STRAINER, GAS TANKSTRAINER, GAS TANK
-
71670-325 GROMMETGROMMET
-
81670-494 VENT, GAS TANKVENT, GAS TANK
-
91670-199 CAP, GAS TANK (INC. 10)CAP, GAS TANK (INC. 10)
-
101670-228 SEAL, TANK CAPSEAL, TANK CAP
-
111670-241 GAUGE, FUEL W/GASKET (PRESS, FIT)GAUGE, FUEL W/GASKET (PRESS, FIT)
-
122706-261 COVER, SEAT (INC. 13)COVER, SEAT (INC. 13)
-
133606-363 WIRE, SEATWIRE, SEAT
-
140624-528 STAPLE, SEAT COVERSTAPLE, SEAT COVER
-
151606-126 INSERT, SEAT FOAMINSERT, SEAT FOAM
-
162706-196 FOAM, SEAT CUSHIONFOAM, SEAT CUSHION
-
172606-943 WIRE, SEATWIRE, SEAT
-
180623-784 SCREW, SELF, TAPPINGSCREW, SELF, TAPPING
-
190623-404 CAP, PROTECTORCAP, PROTECTOR
-
208048-366 NUT, LOCKNUT, LOCK
-
218020-041 SCREW, CAPSCREW, CAP
-
220617-136 SEAL, FOAM, SEAT, BASESEAL, FOAM, SEAT, BASE
-
230623-038 NUT W/WASHERNUT W/WASHER
-
243002-964 CLAMP, WIRECLAMP, WIRE
-
250623-184 WASHERWASHER
-
260609-092 GASKET, TAILLIGHT LENSGASKET, TAILLIGHT LENS
-
270109-460 BULBBULB
-
280609-091 TAILLIGHT W/SOCKET ASSY.TAILLIGHT W/SOCKET ASSY.
-
290609-093 SCREW, RETAININGSCREW, RETAINING
-
300609-090 LENS, TAILLIGHTLENS, TAILLIGHT
-
310623-063 CLAMP, HOSECLAMP, HOSE
-
320610-015 HOSE, GASLINE (100 FT)HOSE, GASLINE (100 FT)
-
320610-016 HOSE, GASLINE (25 FT)HOSE, GASLINE (25 FT)
-
330623-101 CLIP, ROUTING, SNAP, INNERCLIP, ROUTING, SNAP, INNER
