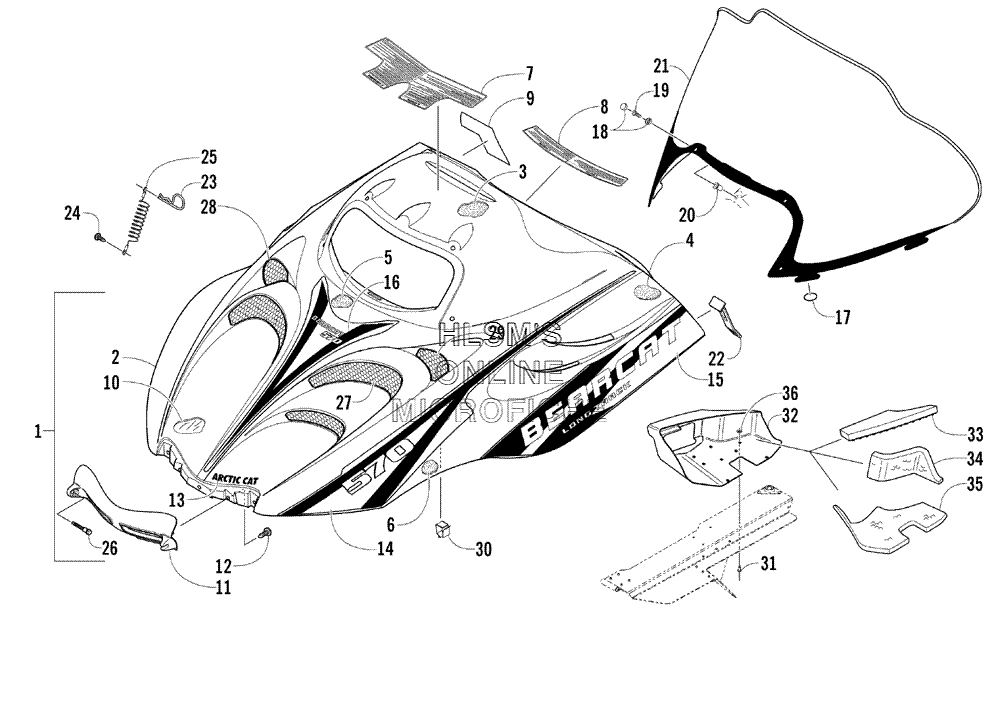

HOOD AND WINDSHIELD ASSEMBLY для Arctic Cat Bearcat 570 - 2005 года выпуска
-
№АртикулНазвание
-
11718-618 HOOD W/DECALS (INC. 2, 16)HOOD W/DECALS (INC. 2, 16)
-
21718-460 HOOD W/O DECALS (INC. 3, 12)HOOD W/O DECALS (INC. 3, 12)
-
30717-148 FOAM, HOOD (UPPER/MIDDLE/RIGHT)FOAM, HOOD (UPPER/MIDDLE/RIGHT)
-
30717-149 FOAM, HOOD (UPPER/MIDDLE/LEFT)FOAM, HOOD (UPPER/MIDDLE/LEFT)
-
40717-164 FOAM, HOOD (UPPER/RIGHT)FOAM, HOOD (UPPER/RIGHT)
-
40717-165 FOAM, HOOD (UPPER/LEFT)FOAM, HOOD (UPPER/LEFT)
-
50717-138 FOAM, HOOD (MIDDLE)FOAM, HOOD (MIDDLE)
-
60717-140 FOAM, HOOD (REAR) (RIGHT)FOAM, HOOD (REAR) (RIGHT)
-
60717-141 FOAM, HOOD (REAR) (LEFT)FOAM, HOOD (REAR) (LEFT)
-
73611-485 DECAL, WARNING, GENERAL AND BRAKEDECAL, WARNING, GENERAL AND BRAKE
-
83611-970 DECAL, CAUTION, ENGINE/BATTERY/FUELDECAL, CAUTION, ENGINE/BATTERY/FUEL
-
93611-580 DECAL REVERSEDECAL REVERSE
-
101606-938 FOIL, HOOD (RIGHT)FOIL, HOOD (RIGHT)
-
101606-939 FOIL, HOOD (LEFT)FOIL, HOOD (LEFT)
-
111606-720 HINGE, HOODHINGE, HOOD
-
120623-797 SCREW, SELF, TAPPINGSCREW, SELF, TAPPING
-
135611-409 DECAL, "ARCTIC CAT", HOODDECAL, "ARCTIC CAT", HOOD
-
146611-176 DECAL, HOOD (UPPER/RIGHT)DECAL, HOOD (UPPER/RIGHT)
-
146611-177 DECAL, HOOD (UPPER/LEFT)DECAL, HOOD (UPPER/LEFT)
-
156611-178 DECAL, HOOD (LOWER/RIGHT)DECAL, HOOD (LOWER/RIGHT)
-
156611-179 DECAL, HOOD (LOWER/LEFT)DECAL, HOOD (LOWER/LEFT)
-
166611-180 DECAL, HOOD, CRESTDECAL, HOOD, CREST
-
170616-032 O-RINGO-RING
-
180124-054 SNAP CAP W/WASHERSNAP CAP W/WASHER
-
190623-902 SCREW, MACHINESCREW, MACHINE
-
200623-845 NUT, EXPANSIONNUT, EXPANSION
-
213606-180 WINDSHIELDWINDSHIELD
-
221606-067 STRAP, HOLD, DOWNSTRAP, HOLD, DOWN
-
230623-805 CLIP, HAIRPINCLIP, HAIRPIN
-
240623-057 SCREW, SELF, TAPPINGSCREW, SELF, TAPPING
-
252606-247 CABLE, HOODCABLE, HOOD
-
261623-016 SCREW, MACHINESCREW, MACHINE
-
272606-889 SCREEN, VENT (LEFT) (BLUE)SCREEN, VENT (LEFT) (BLUE)
-
282606-890 SCREEN, VENT (RIGHT) (BLUE)SCREEN, VENT (RIGHT) (BLUE)
-
292606-891 SCREEN, VENT (UPPER/LEFT) (BLUE)SCREEN, VENT (UPPER/LEFT) (BLUE)
-
300123-394 CLIP, RETAININGCLIP, RETAINING
-
318060-508 RIVETRIVET
-
322606-370 DUCT, AIR, OUTERDUCT, AIR, OUTER
-
330617-427 FOAM, AIR, OUTER DUCT, TOPFOAM, AIR, OUTER DUCT, TOP
-
340617-428 FOAM, AIR, OUTER DUCT, SIDEFOAM, AIR, OUTER DUCT, SIDE
-
350617-425 FOAM, AIR, OUTER DUCT, BOTTOMFOAM, AIR, OUTER DUCT, BOTTOM
-
360123-802 WASHERWASHER
