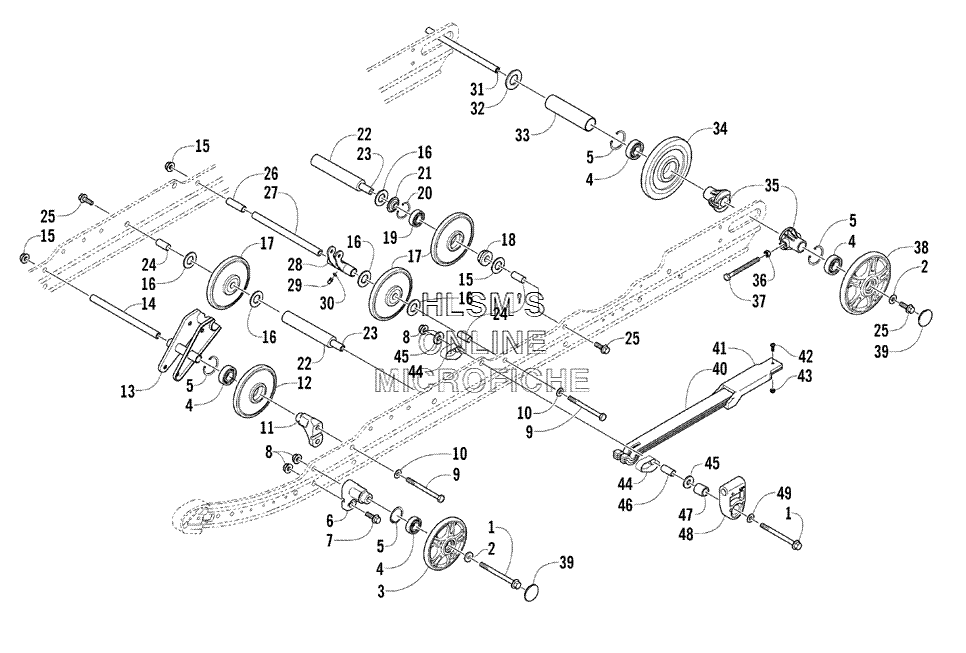

IDLER WHEEL ASSEMBLY для Arctic Cat Bearcat 570 - 2005 года выпуска
-
№АртикулНазвание
-
18020-232 SCREW, CAPSCREW, CAP
-
20623-664 WASHERWASHER
-
32604-196 WHEEL, IDLER (INC. 4, 5)WHEEL, IDLER (INC. 4, 5)
-
41604-847 BEARINGBEARING
-
50623-946 RING, RETAININGRING, RETAINING
-
62604-579 BLOCK, MOUNTING, IDLER WHEELBLOCK, MOUNTING, IDLER WHEEL
-
78020-224 SCREW, CAPSCREW, CAP
-
88048-486 NUT, LOCKNUT, LOCK
-
91623-037 SCREW, CAPSCREW, CAP
-
100623-044 WASHERWASHER
-
112604-738 BLOCK, MOUNTING, IDLER WHEELBLOCK, MOUNTING, IDLER WHEEL
-
121604-837 WHEEL, IDLER (INC. 4, 5)WHEEL, IDLER (INC. 4, 5)
-
131704-235 BRACKET, MOUNTING SHOCK (FRONT)BRACKET, MOUNTING SHOCK (FRONT)
-
142604-737 AXLE, STEELAXLE, STEEL
-
158047-490 NUT, LOCKNUT, LOCK
-
160623-675 WASHERWASHER
-
171604-684 WHEEL, IDLER (INC. 18, 21)WHEEL, IDLER (INC. 18, 21)
-
181604-773 INSERT, WHEEL, OUTSIDEINSERT, WHEEL, OUTSIDE
-
190107-598 BEARINGBEARING
-
200123-798 RING, RETAININGRING, RETAINING
-
211604-772 INSERT, WHEEL, INSIDEINSERT, WHEEL, INSIDE
-
221604-214 SPACERSPACER
-
230604-930 AXLEAXLE
-
241604-213 SPACERSPACER
-
258020-223 SCREW, CAPSCREW, CAP
-
260603-105 SPACERSPACER
-
271604-209 AXLE, STEELAXLE, STEEL
-
281704-016 PIVOT, SHOCK (INC. 29, 30)PIVOT, SHOCK (INC. 29, 30)
-
291623-010 FITTING, GREASEFITTING, GREASE
-
301623-011 WASHER, GREASE FITTINGWASHER, GREASE FITTING
-
312604-283 AXLE WHEEL (REAR)AXLE WHEEL (REAR)
-
320623-921 WASHERWASHER
-
331604-940 SPACERSPACER
-
341604-838 WHEEL, IDLER (INC. 4, 5)WHEEL, IDLER (INC. 4, 5)
-
352604-260 BUSHING, ADJUSTERBUSHING, ADJUSTER
-
368042-486 NUTNUT
-
370623-123 SCREW, CAPSCREW, CAP
-
382604-251 WHEEL, IDLER (INC. 4, 5)WHEEL, IDLER (INC. 4, 5)
-
391604-952 CAP, IDLER WHEELCAP, IDLER WHEEL
-
401704-279 SPO-RINGVERLOAD ASSEMBLY (INC. 41, 44)SPO-RINGVERLOAD ASSEMBLY (INC. 41, 44)
-
412604-788 BLOCK, WEARBLOCK, WEAR
-
420623-121 SCREW, MACHINESCREW, MACHINE
-
438041-276 NUT, LOCKNUT, LOCK
-
441604-412 CLIP, RETAININGCLIP, RETAINING
-
450623-746 WASHERWASHER
-
460604-739 BUSHING, OVERLOAD SPRINGBUSHING, OVERLOAD SPRING
-
471604-430 SPACER, SPRING SLIDESPACER, SPRING SLIDE
-
482604-516 SLIDE, SPRINGSLIDE, SPRING
-
498050-282 WASHERWASHER
