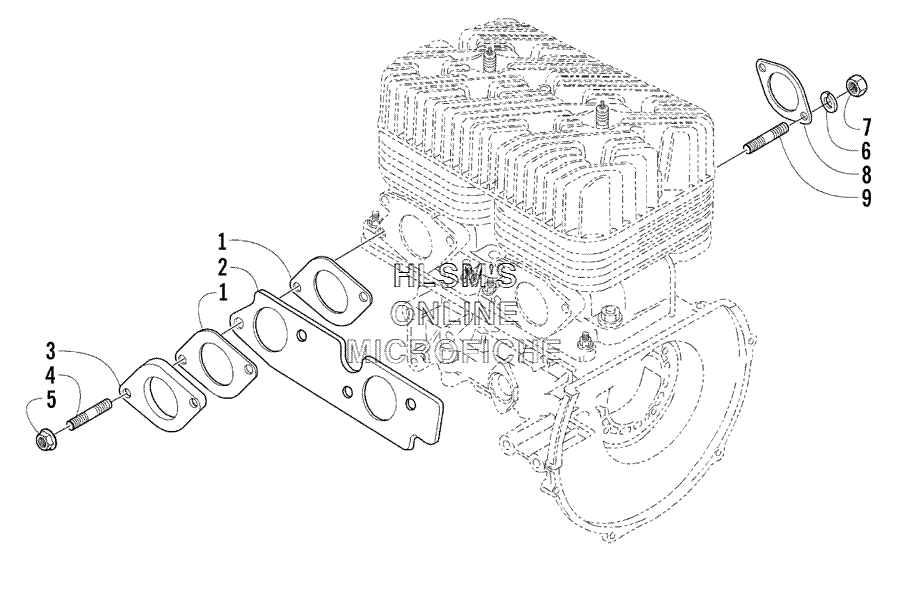

INTAKE ASSEMBLY для Arctic Cat Bearcat 570 - 2005 года выпуска
-
№АртикулНазвание
-
13006-615 GASKET, INTAKE MANIFOLDGASKET, INTAKE MANIFOLD
-
23006-466 DEFLECTOR, HEATDEFLECTOR, HEAT
-
33006-075 INSULATOR, INTAKE MANIFOLDINSULATOR, INTAKE MANIFOLD
-
43006-074 BOLT, STUDBOLT, STUD
-
53004-326 NUTNUT
-
63004-280 WASHER, LOCKWASHER, LOCK
-
73004-334 NUTNUT
-
83003-503 GASKET, EXHAUSTGASKET, EXHAUST
-
93004-301 BOLT, STUDBOLT, STUD
