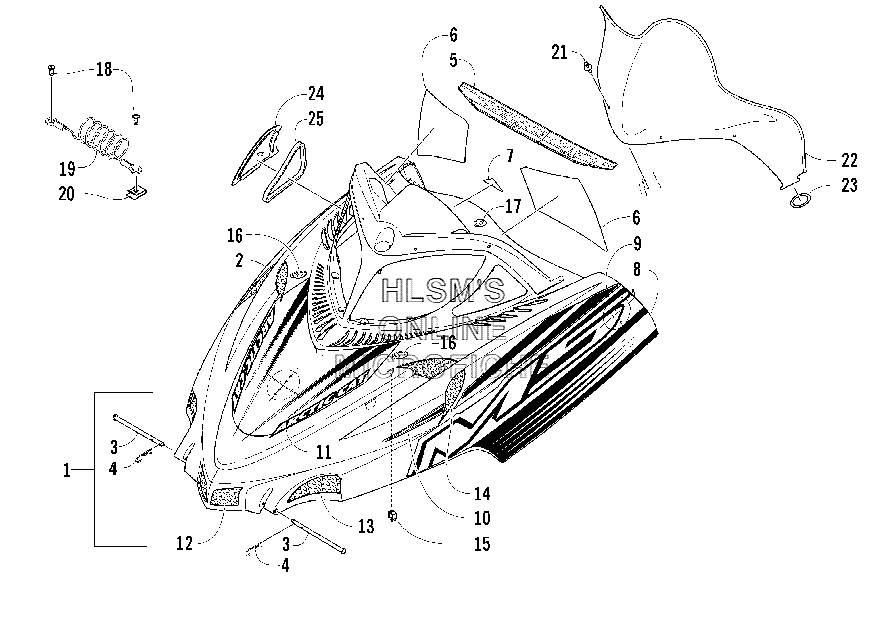

HOOD AND WINDSHIELD ASSEMBLY для Arctic Cat M5 141'' (GREEN) - 2005 года выпуска
-
№АртикулНазвание
-
11718-741 HOOD W/DECALS (INC. 2, 11)HOOD W/DECALS (INC. 2, 11)
-
21718-678 HOOD W/O DECALS (INC. 3, 6)HOOD W/O DECALS (INC. 3, 6)
-
31623-026 PIN, CLEVISPIN, CLEVIS
-
40623-847 CLIP, HAIRPINCLIP, HAIRPIN
-
56611-143 DECAL, CAUTIONDECAL, CAUTION
-
66611-144 DECAL, WARNING (ENGLISH)DECAL, WARNING (ENGLISH)
-
66611-145 DECAL, WARNING (FRENCH)DECAL, WARNING (FRENCH)
-
73611-611 DECAL, "MADE IN U.S.A.", DOMEDDECAL, "MADE IN U.S.A.", DOMED
-
86611-462 DECAL, HOOD (LOWER/RIGHT)DECAL, HOOD (LOWER/RIGHT)
-
86611-463 DECAL, HOOD (LOWER/LEFT)DECAL, HOOD (LOWER/LEFT)
-
96611-460 DECAL, HOOD, VENT (UPPER/RIGHT)DECAL, HOOD, VENT (UPPER/RIGHT)
-
96611-461 DECAL, HOOD, VENT (UPPER/LEFT)DECAL, HOOD, VENT (UPPER/LEFT)
-
106611-458 DECAL, HOOD, VENT (LOWER/RIGHT)DECAL, HOOD, VENT (LOWER/RIGHT)
-
106611-459 DECAL, HOOD, VENT (LOWER/LEFT)DECAL, HOOD, VENT (LOWER/LEFT)
-
116611-502 DECAL, HOOD (CENTER)DECAL, HOOD (CENTER)
-
122706-793 SCREEN, VENT (CENTER)SCREEN, VENT (CENTER)
-
132706-794 SCREEN, VENT (FRONT/RIGHT)SCREEN, VENT (FRONT/RIGHT)
-
132706-795 SCREEN, VENT (FRONT/LEFT)SCREEN, VENT (FRONT/LEFT)
-
142706-796 SCREEN, VENT (REAR/RIGHT)SCREEN, VENT (REAR/RIGHT)
-
142706-797 SCREEN, VENT (REAR/LEFT)SCREEN, VENT (REAR/LEFT)
-
150123-394 CLIP, RETAININGCLIP, RETAINING
-
160617-490 FOAM, HOOD (RIGHT)FOAM, HOOD (RIGHT)
-
160617-491 FOAM, HOOD (LEFT)FOAM, HOOD (LEFT)
-
170617-489 FOAM, HOOD (REAR)FOAM, HOOD (REAR)
-
180623-302 SCREW, SELF, TAPPINGSCREW, SELF, TAPPING
-
192606-726 CABLE, HOODCABLE, HOOD
-
201623-052 U, NUTU, NUT
-
210623-362 RIVET, REINSTALLABLERIVET, REINSTALLABLE
-
223606-868 WINDSHIELDWINDSHIELD
-
230616-032 O-RINGO-RING
-
243606-428 BEZEL, INTAKE (RIGHT)BEZEL, INTAKE (RIGHT)
-
243606-429 BEZEL, INTAKE (LEFT)BEZEL, INTAKE (LEFT)
-
250617-486 FOAM, INTAKE BEZEL (RIGHT)FOAM, INTAKE BEZEL (RIGHT)
-
250617-487 FOAM, INTAKE BEZEL (LEFT)FOAM, INTAKE BEZEL (LEFT)
