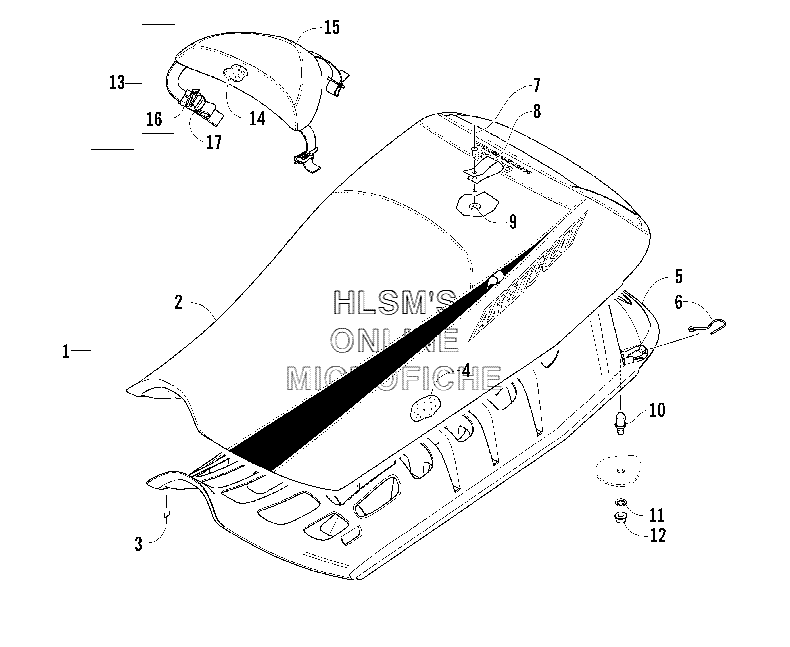

SEAT ASSEMBLY для Arctic Cat M5 141'' (GREEN) - 2005 года выпуска
-
№АртикулНазвание
-
17998-027 COMPLETE SEAT ASSY (INC. 2, 9)COMPLETE SEAT ASSY (INC. 2, 9)
-
22706-687 COVER, SEATCOVER, SEAT
-
30624-528 STAPLE, SEAT COVERSTAPLE, SEAT COVER
-
42706-647 FOAM, SEAT CUSHIONFOAM, SEAT CUSHION
-
53606-430 SEAT, BASESEAT, BASE
-
61623-393 CLIP, RETAINING, SEAT, BASECLIP, RETAINING, SEAT, BASE
-
78061-506 RIVETRIVET
-
83606-813 STRAP, HOLD, DOWN, SEAT PADSTRAP, HOLD, DOWN, SEAT PAD
-
98050-127 WASHERWASHER
-
101623-198 STUD, LATCH, SEAT, BASESTUD, LATCH, SEAT, BASE
-
110423-178 WASHER, CRUSHWASHER, CRUSH
-
128048-426 NUT, LOCKNUT, LOCK
-
137998-026 PAD, SEAT (INC. 14, 17)PAD, SEAT (INC. 14, 17)
-
142706-698 FOAM, SEAT PADFOAM, SEAT PAD
-
152706-697 COVER, SEAT PAD (INC. 16, 17)COVER, SEAT PAD (INC. 16, 17)
-
161623-348 CLIP, RETAINING, STRAPCLIP, RETAINING, STRAP
-
171623-347 CLIP, HOLD, DOWN, SEAT PADCLIP, HOLD, DOWN, SEAT PAD
