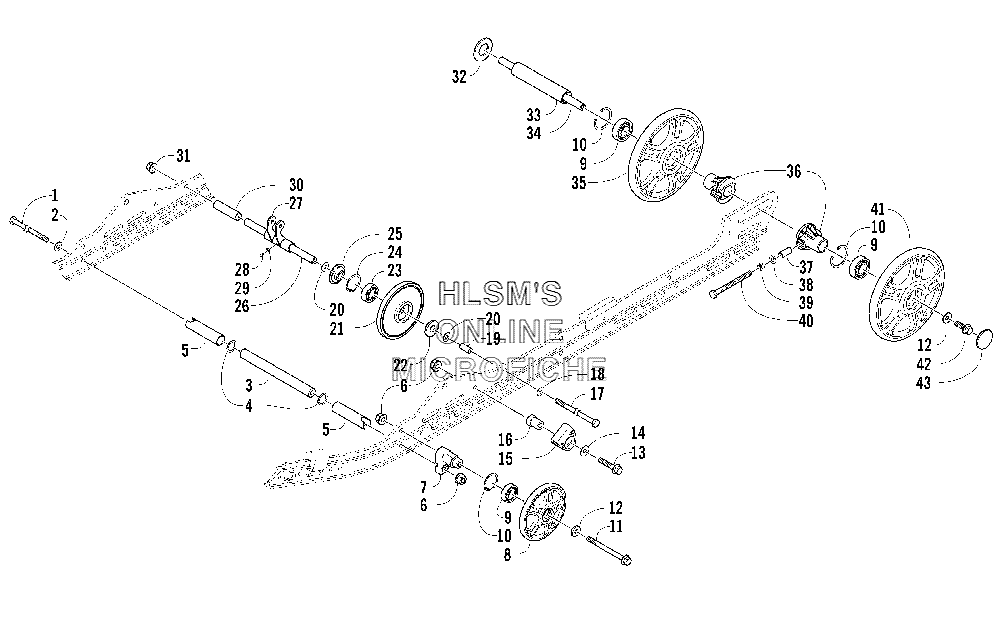

IDLER WHEEL ASSEMBLY для Arctic Cat M5 141'' (GREEN) - 2005 года выпуска
-
№АртикулНазвание
-
10623-527 SCREW, CAPSCREW, CAP
-
20623-439 WASHERWASHER
-
31604-792 AXLEAXLE
-
40623-912 WASHERWASHER
-
51604-793 SPACER ARM (FRONT) SHOCKSPACER ARM (FRONT) SHOCK
-
68048-486 NUT, LOCKNUT, LOCK
-
72604-579 BLOCK, MOUNTING, IDLER WHEELBLOCK, MOUNTING, IDLER WHEEL
-
82604-751 WHEEL, IDLER (INC. 9, 10)WHEEL, IDLER (INC. 9, 10)
-
91604-847 BEARINGBEARING
-
100623-946 RING, RETAININGRING, RETAINING
-
118020-232 SCREW, CAPSCREW, CAP
-
120623-664 WASHERWASHER
-
138020-229 SCREW, CAPSCREW, CAP
-
148050-282 WASHERWASHER
-
152604-515 SLIDE, SPRINGSLIDE, SPRING
-
162604-378 BLOCK, SLIDEBLOCK, SLIDE
-
171623-037 SCREW, CAPSCREW, CAP
-
180623-044 WASHERWASHER
-
191604-213 SPACERSPACER
-
200623-675 WASHERWASHER
-
211604-684 WHEEL, IDLER (INC. 22, 25)WHEEL, IDLER (INC. 22, 25)
-
221604-773 INSERT, WHEEL (OUTSIDE)INSERT, WHEEL (OUTSIDE)
-
230107-598 BEARINGBEARING
-
240123-798 RING, RETAININGRING, RETAINING
-
251604-772 INSERT, WHEEL (INSIDE)INSERT, WHEEL (INSIDE)
-
261604-209 AXLE, INNERAXLE, INNER
-
271704-016 PIVOT, SHOCK (INC. 28, 29)PIVOT, SHOCK (INC. 28, 29)
-
281623-010 FITTING, GREASEFITTING, GREASE
-
291623-011 WASHER, GREASE FITTINGWASHER, GREASE FITTING
-
300603-105 SPACERSPACER
-
318047-490 NUT, LOCKNUT, LOCK
-
320623-921 WASHERWASHER
-
331604-940 SPACER WHEEL (REAR)SPACER WHEEL (REAR)
-
342604-283 AXLE WHEEL (REAR)AXLE WHEEL (REAR)
-
352604-524 WHEEL, IDLER (INC. 9, 10)WHEEL, IDLER (INC. 9, 10)
-
362604-260 BUSHING, ADJUSTERBUSHING, ADJUSTER
-
370704-854 SPACERSPACER
-
388051-277 WASHER, LOCKWASHER, LOCK
-
398042-486 NUTNUT
-
400623-123 SCREW, CAPSCREW, CAP
-
412604-827 WHEEL, IDLER (INC. 9, 10)WHEEL, IDLER (INC. 9, 10)
-
428020-223 SCREW, CAPSCREW, CAP
-
431604-952 CAP, IDLER WHEELCAP, IDLER WHEEL
