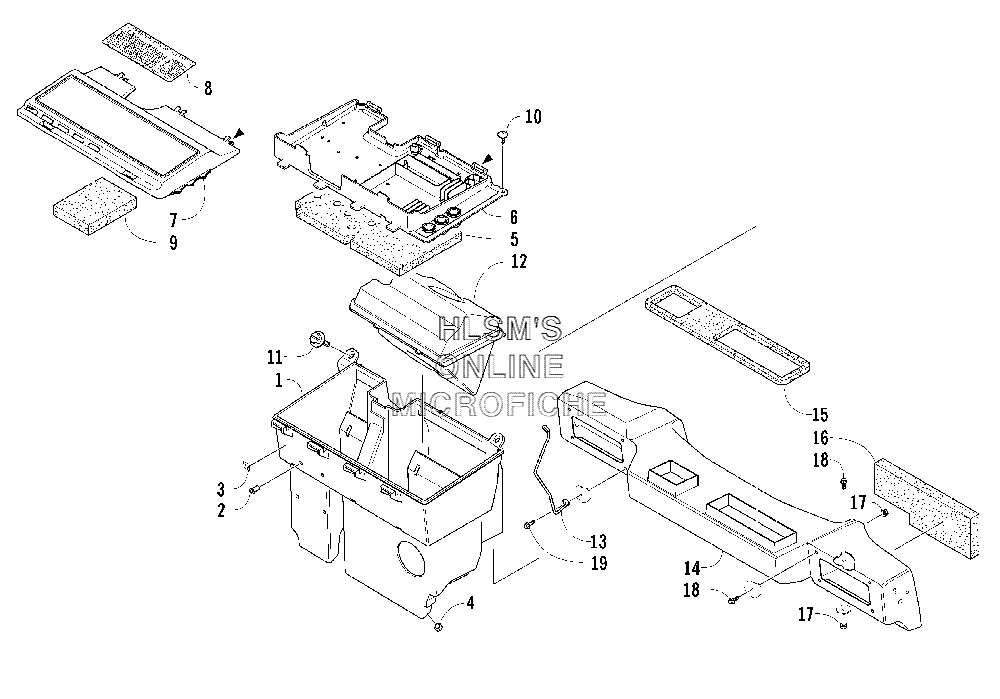

AIR SILENCER ASSEMBLY для Arctic Cat Z 370 (GREEN) - 2005 года выпуска
-
№АртикулНазвание
-
10770-658 SILENCER, AIR, ASSY (INC. 2)SILENCER, AIR, ASSY (INC. 2)
-
21623-127 INSERTINSERT
-
34611-029 DECAL, FUEL SHUT, OFF VALVEDECAL, FUEL SHUT, OFF VALVE
-
41606-038 BUMPER, AIR SILENCERBUMPER, AIR SILENCER
-
50617-393 FOAM, AIR SILENCER (TOP)FOAM, AIR SILENCER (TOP)
-
61670-197 COVER, AIR SILENCERCOVER, AIR SILENCER
-
71670-049 COVER, TOOL TRAYCOVER, TOOL TRAY
-
86611-437 DECAL, JET CHARTDECAL, JET CHART
-
90617-411 FOAM, TOOL TRAYFOAM, TOOL TRAY
-
100623-727 SCREW, SELF, TAPPINGSCREW, SELF, TAPPING
-
110623-780 SCREW, MACHINE, HEX SHOULDERSCREW, MACHINE, HEX SHOULDER
-
121670-061 RESONATOR, Q, WAVERESONATOR, Q, WAVE
-
130707-705 BRACKET, GUARD, HARNESS/ROPEBRACKET, GUARD, HARNESS/ROPE
-
141670-327 PLENUM, AIR SILENCERPLENUM, AIR SILENCER
-
150617-245 SEAL, PLENUM/AIR SILENCERSEAL, PLENUM/AIR SILENCER
-
160617-270 FOAM, PLENUM, INTAKEFOAM, PLENUM, INTAKE
-
178048-366 NUT, LOCKNUT, LOCK
-
188020-039 SCREW, CAPSCREW, CAP
-
198020-040 SCREW, CAPSCREW, CAP
