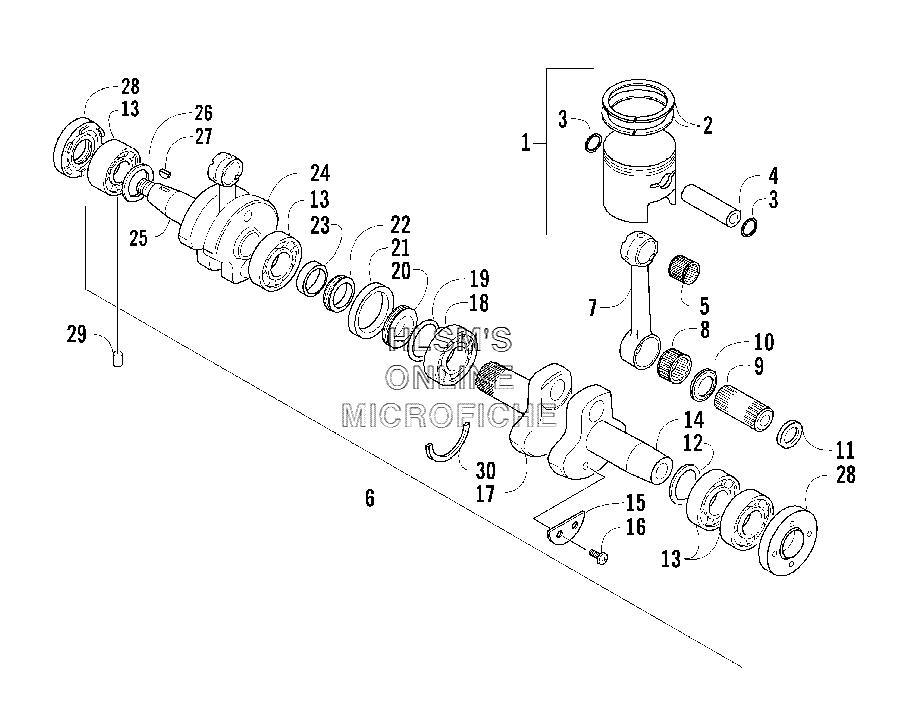

PISTON AND CRANKSHAFT для Arctic Cat Z 370 (GREEN) - 2005 года выпуска
-
№АртикулНазвание
-
13005-913 PISTON ASSY (INC. 2, 3)PISTON ASSY (INC. 2, 3)
-
23004-825 RING SET, PISTONRING SET, PISTON
-
33003-537 CIRCLIP, PISTON PINCIRCLIP, PISTON PIN
-
43005-455 PIN, PISTONPIN, PISTON
-
53003-107 BEARING, PISTON PINBEARING, PISTON PIN
-
63005-914 CRANKSHAFT ASSY (INC. 7, 26)CRANKSHAFT ASSY (INC. 7, 26)
-
73005-456 ROD, CONNECTINGROD, CONNECTING
-
83003-744 BEARING, CRANK PINBEARING, CRANK PIN
-
93002-173 PIN, CRANKPIN, CRANK
-
103005-458 WASHER, CRANK PIN BEARINGWASHER, CRANK PIN BEARING
-
113005-450 SHIMSHIM
-
123002-025 WASHER (LEFT)WASHER (LEFT)
-
133002-624 BEARING, CRANKSHAFTBEARING, CRANKSHAFT
-
143005-345 CRANKSHAFT (LEFT)CRANKSHAFT (LEFT)
-
153004-746 BALANCERBALANCER
-
163004-284 SCREWSCREW
-
173002-841 CRANKSHAFT (CENTER)CRANKSHAFT (CENTER)
-
183006-095 BEARINGBEARING
-
193003-112 RING, SEALRING, SEAL
-
203003-171 RACE, CRANKSHAFT SEALRACE, CRANKSHAFT SEAL
-
213003-248 RETAINERRETAINER
-
223005-373 GEAR, OIL PUMP DRIVEGEAR, OIL PUMP DRIVE
-
233002-827 SPACERSPACER
-
243005-915 WHEEL, CRANKSHAFTWHEEL, CRANKSHAFT
-
253005-344 CRANKSHAFT (RIGHT)CRANKSHAFT (RIGHT)
-
263008-501 WASHERWASHER
-
273004-540 KEYKEY
-
283002-717 SEAL, OILSEAL, OIL
-
293003-658 PIN, ALIGNMENTPIN, ALIGNMENT
-
303003-736 C, RING, CRANKSHAFTC, RING, CRANKSHAFT
