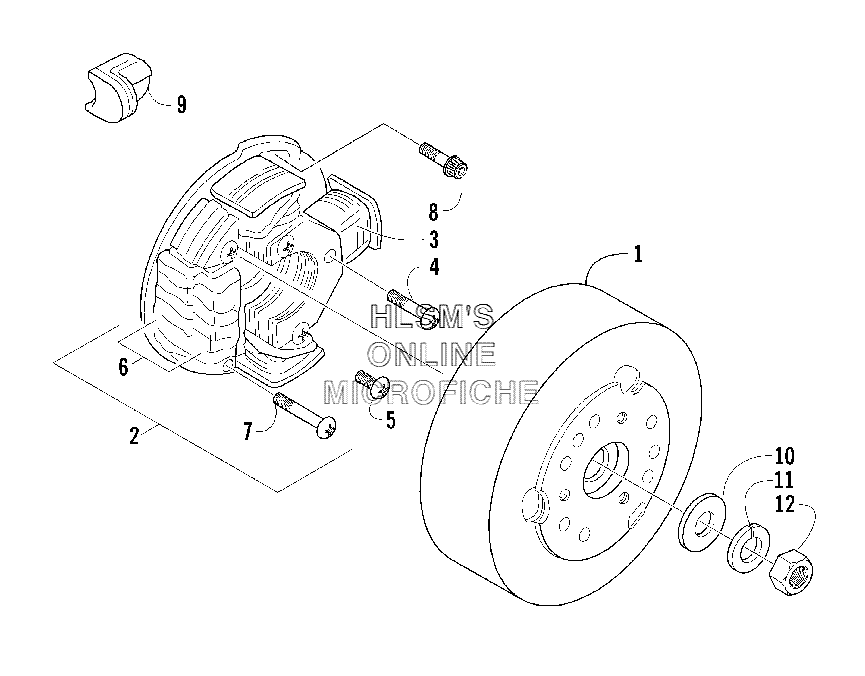

MAGNETO для Arctic Cat Z 370 (GREEN) - 2005 года выпуска
-
№АртикулНазвание
-
13005-917 ROTOR/FLYWHEELROTOR/FLYWHEEL
-
23005-346 STATOR ASSY (INC. 3, 7)STATOR ASSY (INC. 3, 7)
-
33003-013 COIL, LIGHTINGCOIL, LIGHTING
-
43005-535 SCREWSCREW
-
53004-545 SCREWSCREW
-
63005-376 COIL, PRIMARYCOIL, PRIMARY
-
73004-634 SCREWSCREW
-
83005-171 BOLTBOLT
-
93006-531 GROMMETGROMMET
-
103005-175 WASHERWASHER
-
113004-345 WASHER, LOCKWASHER, LOCK
-
123004-380 NUTNUT
