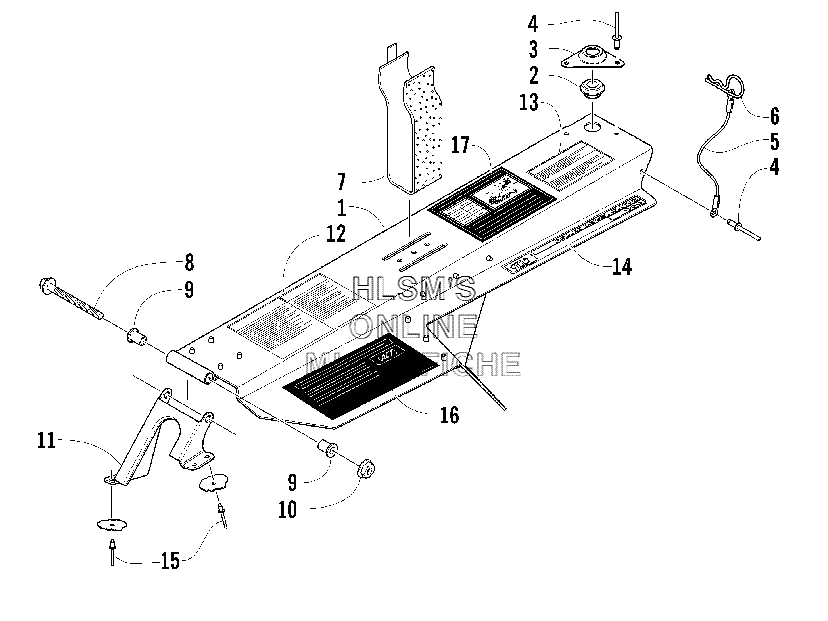

BELT GUARD ASSY. для Arctic Cat ZR 900 SNO PRO (GREEN) - 2005 года выпуска
-
№АртикулНазвание
-
10707-722 BELT GUARD (INC. 2, 3 AND TWO NO. 4)BELT GUARD (INC. 2, 3 AND TWO NO. 4)
-
20607-549 BUSHING, BELT GUARDBUSHING, BELT GUARD
-
30607-550 PLATE, BUSHING, BELT GUARDPLATE, BUSHING, BELT GUARD
-
48060-504 RIVET, BLINDRIVET, BLIND
-
50607-447 CABLECABLE
-
60605-283 CLIP, HAIRPINCLIP, HAIRPIN
-
70707-582 RETAINER, DRIVE BELT, VELCRORETAINER, DRIVE BELT, VELCRO
-
88020-050 SCREW, CAPSCREW, CAP
-
90607-094 INSERT, HINGEINSERT, HINGE
-
108048-366 NUT, LOCKNUT, LOCK
-
110707-707 BRACKET, BELT GUARDBRACKET, BELT GUARD
-
121611-582 DECAL, CAUTION, JETTING/STORAGEDECAL, CAUTION, JETTING/STORAGE
-
131611-565 DECAL, WARNING, BELT GUARDDECAL, WARNING, BELT GUARD
-
143611-969 DECAL, "ACT, ROLLER DRIVEN CLUTCH"DECAL, "ACT, ROLLER DRIVEN CLUTCH"
-
158061-508 RIVET, BLIND-LF SS56 BLACKRIVET, BLIND-LF SS56 BLACK
-
166611-521 DECAL, CLUTCHINGDECAL, CLUTCHING
-
175611-862 DECAL, SPRING ADJUSTMENTDECAL, SPRING ADJUSTMENT
