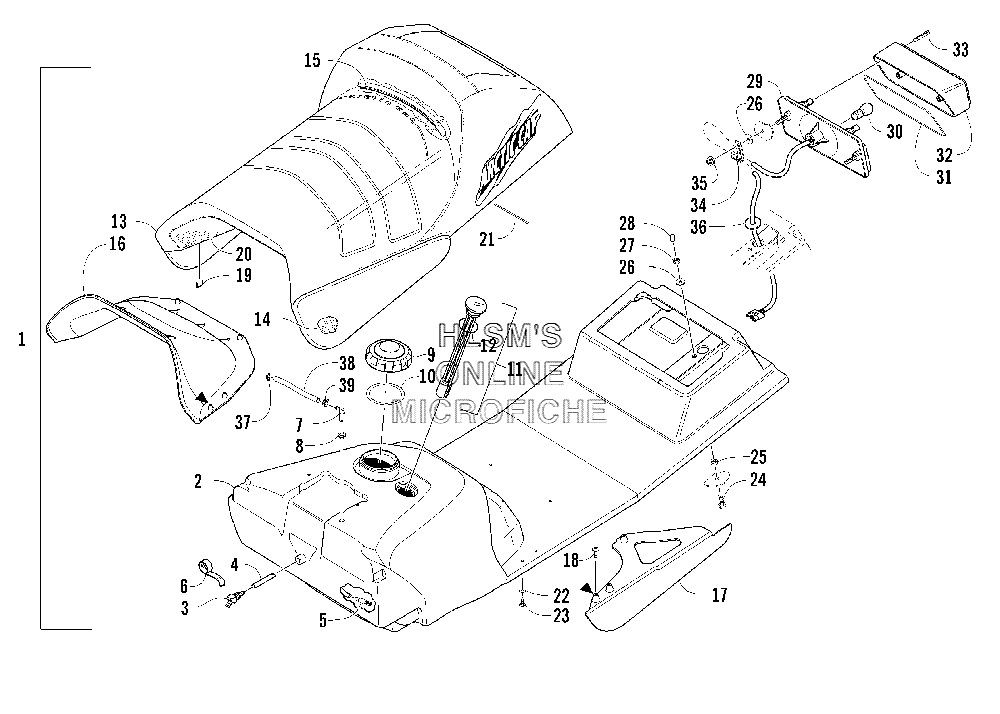

GAS TANK- SEAT- AND TAILLIGHT ASSY. для Arctic Cat ZR 900 SNO PRO (GREEN) - 2005 года выпуска
-
№АртикулНазвание
-
11718-762 COMPLETE SEAT ASSY. (INC. 2, 23)COMPLETE SEAT ASSY. (INC. 2, 23)
-
20770-607 TANK, GAS/SEAT, BASE (INC. 3, 12)TANK, GAS/SEAT, BASE (INC. 3, 12)
-
31670-321 OUTLET, TANKOUTLET, TANK
-
46101-001 HOSE, GASLINE (100 FT)HOSE, GASLINE (100 FT)
-
46101-009 HOSE, GASLINE (50 FT)HOSE, GASLINE (50 FT)
-
50510-358 STRAINER, GAS TANKSTRAINER, GAS TANK
-
60670-289 TAPE, TEFLONTAPE, TEFLON
-
71670-494 VENT, GAS TANKVENT, GAS TANK
-
81670-325 GROMMET, GAS TANKGROMMET, GAS TANK
-
91670-199 CAP, GAS TANK (INC. 10)CAP, GAS TANK (INC. 10)
-
101670-228 SEAL, GAS TANK CAPSEAL, GAS TANK CAP
-
111670-241 GAUGE, GAS W/SEAL (INC. 12)GAUGE, GAS W/SEAL (INC. 12)
-
120470-400 SEAL, GAS GAUGESEAL, GAS GAUGE
-
132706-742 COVER, SEAT (INC. 14, 15)COVER, SEAT (INC. 14, 15)
-
140617-417 FOAM, TUNNEL PADFOAM, TUNNEL PAD
-
153606-363 WIRE, SEATWIRE, SEAT
-
161606-126 INSERT, SEAT FOAMINSERT, SEAT FOAM
-
171606-518 INSERT, SEAT PAD (RIGHT)INSERT, SEAT PAD (RIGHT)
-
171606-519 INSERT, SEAT PAD (LEFT)INSERT, SEAT PAD (LEFT)
-
180623-783 SCREW, SELF, TAPPINGSCREW, SELF, TAPPING
-
190624-528 STAPLE, SEAT COVERSTAPLE, SEAT COVER
-
202706-196 FOAM, SEAT CUSHIONFOAM, SEAT CUSHION
-
212606-943 WIRE, SEATWIRE, SEAT
-
228050-217 WASHERWASHER
-
230623-309 SCREW, SELF, TAPPINGSCREW, SELF, TAPPING
-
248002-042 SCREW, CAPSCREW, CAP
-
258041-366 NUT, LOCKNUT, LOCK
-
260623-184 WASHERWASHER
-
278040-366 NUT, LOCKNUT, LOCK
-
280623-404 CAP, PROTECTORCAP, PROTECTOR
-
290609-091 TAILLIGHT W/SOCKET ASSY.TAILLIGHT W/SOCKET ASSY.
-
300109-460 BULBBULB
-
310609-092 GASKET, TAILLIGHT LENSGASKET, TAILLIGHT LENS
-
320609-090 LENS, TAILLIGHTLENS, TAILLIGHT
-
330609-093 SCREW, RETAININGSCREW, RETAINING
-
343002-964 CLAMP, WIRECLAMP, WIRE
-
350623-038 NUT, LOCKNUT, LOCK
-
360617-136 SEAL, FOAM, SEAT, BASESEAL, FOAM, SEAT, BASE
-
370623-101 CLIP, ROUTING, SNAP, INNERCLIP, ROUTING, SNAP, INNER
-
380610-015 HOSE, VENT (100 FT)HOSE, VENT (100 FT)
-
380610-016 HOSE, VENT (25 FT)HOSE, VENT (25 FT)
-
390623-063 CLAMP, HOSECLAMP, HOSE
