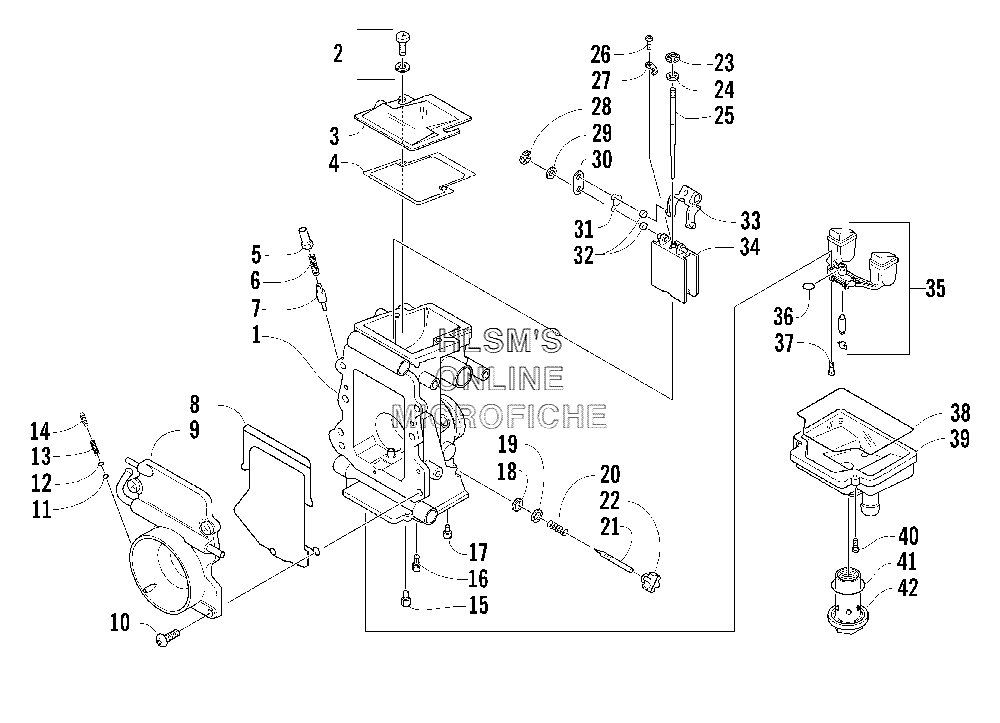

CARBURETOR - INTERNAL PARTS для Arctic Cat ZR 900 SNO PRO (GREEN) - 2005 года выпуска
-
№АртикулНазвание
-
-1670-570 COMPLETE CARBURETOR ASSY.COMPLETE CARBURETOR ASSY.
-
26505-591 SCREW ASSY.SCREW ASSY.
-
36506-142 CAP, TOPCAP, TOP
-
46506-034 GASKETGASKET
-
56506-137 CAP, STARTER PLUNGERCAP, STARTER PLUNGER
-
66506-138 SPRING, STARTER PLUNGERSPRING, STARTER PLUNGER
-
76506-139 STARTER PLUNGERSTARTER PLUNGER
-
86506-209 GASKETGASKET
-
96506-357 FUNNEL ASSY. (RIGHT)FUNNEL ASSY. (RIGHT)
-
96506-349 FUNNEL ASSY. (LEFT)FUNNEL ASSY. (LEFT)
-
106505-980 SCREWSCREW
-
114505-011 O-RINGO-RING
-
126506-218 WASHERWASHER
-
136506-217 SPRING, AIR SCREWSPRING, AIR SCREW
-
146506-220 SCREW, AIRSCREW, AIR
-
156505-146 MAIN JET 430MAIN JET 430
-
166505-262 PILOT JET 50PILOT JET 50
-
176506-265 STARTER JET 130STARTER JET 130
-
186506-080 WASHER, RUBBERWASHER, RUBBER
-
196506-078 WASHER, FUEL MIXTURE SCREWWASHER, FUEL MIXTURE SCREW
-
206506-079 SPRING, FUEL MIXTURE SCREWSPRING, FUEL MIXTURE SCREW
-
216506-145 SCREW, FUEL MIXTURE 1.5SCREW, FUEL MIXTURE 1.5
-
226506-076 CAP, FUEL MIXTURE SCREWCAP, FUEL MIXTURE SCREW
-
236505-628 E, CLIPE, CLIP
-
246505-552 WASHER, E, CLIPWASHER, E, CLIP
-
256506-304 JET NEEDLE 9DFH9, 59, 4JET NEEDLE 9DFH9, 59, 4
-
256506-201 JET NEEDLE 9DFH2, 59, 3 (OVER 5, 000 FT ALT.)JET NEEDLE 9DFH2, 59, 3 (OVER 5, 000 FT ALT.)
-
266506-054 SCREW, RETAINING PLATESCREW, RETAINING PLATE
-
276506-055 PLATE, JET NEEDLE RETAININGPLATE, JET NEEDLE RETAINING
-
286506-051 E, RINGE, RING
-
296506-052 WASHERWASHER
-
306506-039 PLATEPLATE
-
316506-040 CLIPCLIP
-
326506-053 BUSHING, CLIPBUSHING, CLIP
-
336506-047 LEVER ASSY. (LEFT)LEVER ASSY. (LEFT)
-
336506-043 LEVER ASSY. (RIGHT)LEVER ASSY. (RIGHT)
-
346506-120 VALVE, THROTTLE CA 3.0VALVE, THROTTLE CA 3.0
-
356506-144 FLOAT ASSY. 1.8FLOAT ASSY. 1.8
-
366506-100 O-RINGO-RING
-
376506-037 SCREW, FLOAT ARMSCREW, FLOAT ARM
-
386506-038 GASKET, FLOAT CHAMBERGASKET, FLOAT CHAMBER
-
396506-270 CHAMBER, FLOAT, ASSY. (RIGHT)CHAMBER, FLOAT, ASSY. (RIGHT)
-
396506-036 CHAMBER, FLOAT, ASSY. (LEFT)CHAMBER, FLOAT, ASSY. (LEFT)
-
406506-072 SCREWSCREW
-
416505-185 O-RING, DRAIN PLUGO-RING, DRAIN PLUG
-
426506-032 PLUG, DRAINPLUG, DRAIN
