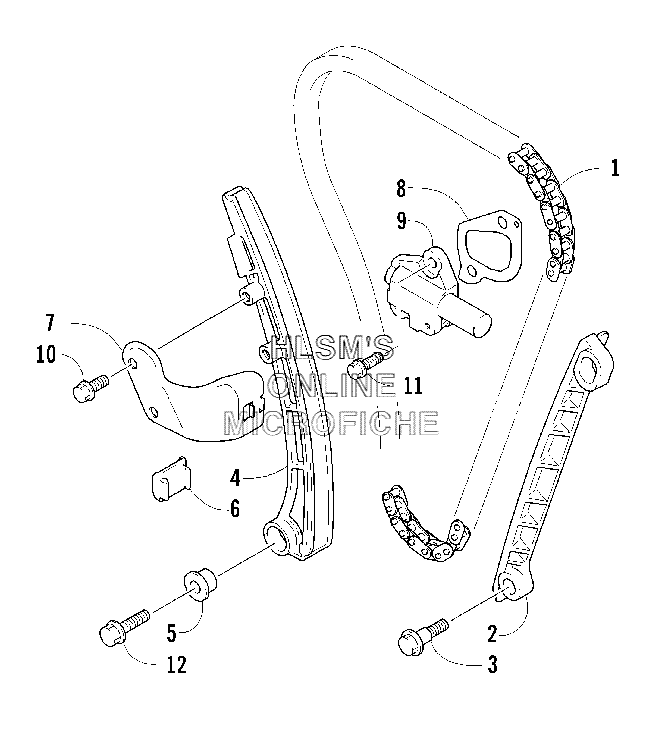

CAM CHAIN ASSEMBLY для Arctic Cat Bearcat WIDE TRACK - 2006 года выпуска
-
№АртикулНазвание
-
13006-163 CHAIN, TIMINGCHAIN, TIMING
-
23006-164 GUIDE, CHAINGUIDE, CHAIN
-
33006-165 BOLTBOLT
-
43006-768 TENSIONER, CHAINTENSIONER, CHAIN
-
53006-167 SPACERSPACER
-
63006-168 PADPAD
-
73006-169 LINKLINK
-
83006-951 GASKET, TENSION ADJUSTERGASKET, TENSION ADJUSTER
-
93006-959 ADJUSTER, TENSIONER, ASSYADJUSTER, TENSIONER, ASSY
-
103004-338 BOLTBOLT
-
113004-341 BOLTBOLT
-
123423-175 BOLTBOLT
