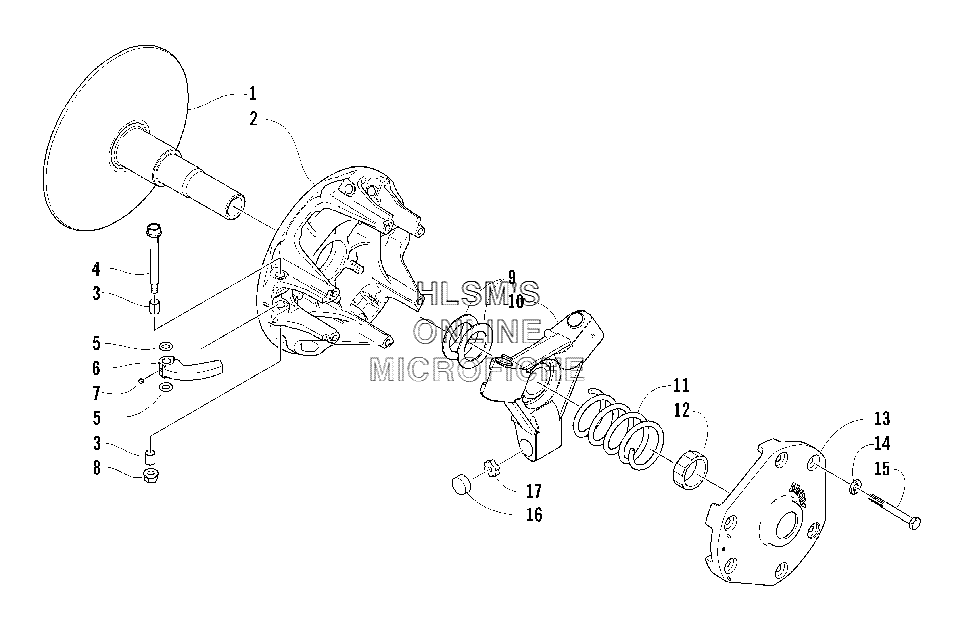

DRIVE CLUTCH для Arctic Cat Bearcat WIDE TRACK - 2006 года выпуска
-
№АртикулНазвание
-
10646-365 SHEAVE, STATIONARYSHEAVE, STATIONARY
-
20746-161 SHEAVE, MOVABLE (INC. 3)SHEAVE, MOVABLE (INC. 3)
-
30646-372 BEARINGBEARING
-
40646-747 PIN, CAM ARMPIN, CAM ARM
-
51602-692 O-RINGO-RING
-
60746-749 ARM, CAM (INC. 7)ARM, CAM (INC. 7)
-
60746-687 ARM, CAM (INC. 7) (9, 000 FT ALT.)ARM, CAM (INC. 7) (9, 000 FT ALT.)
-
60746-708 ARM, CAM (INC. 7) (OVER 9, 000 FT ALT.)ARM, CAM (INC. 7) (OVER 9, 000 FT ALT.)
-
71623-183 SCREW, SETSCREW, SET
-
88048-366 NUT, LOCKNUT, LOCK
-
90646-377 WASHER, SPACERWASHER, SPACER
-
90646-266 WASHER, SPACERWASHER, SPACER
-
100746-686 SPIDER ASSEMBLYSPIDER ASSEMBLY
-
110646-376 SPRING, DRIVE CLUTCH (GOLD)SPRING, DRIVE CLUTCH (GOLD)
-
120646-140 NUTNUT
-
130746-160 COVERCOVER
-
148051-212 WASHER, LOCK, SPRINGWASHER, LOCK, SPRING
-
151623-442 SCREW, MACHINESCREW, MACHINE
-
160646-297 BUTTON, TORQUEBUTTON, TORQUE
-
170646-298 PLUG, TORQUE BUTTONPLUG, TORQUE BUTTON
